Accuway UT-300S

Q: How much does the Accuway UT-300S cost?

The price estimate for the Accuway UT-300S is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-300s#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

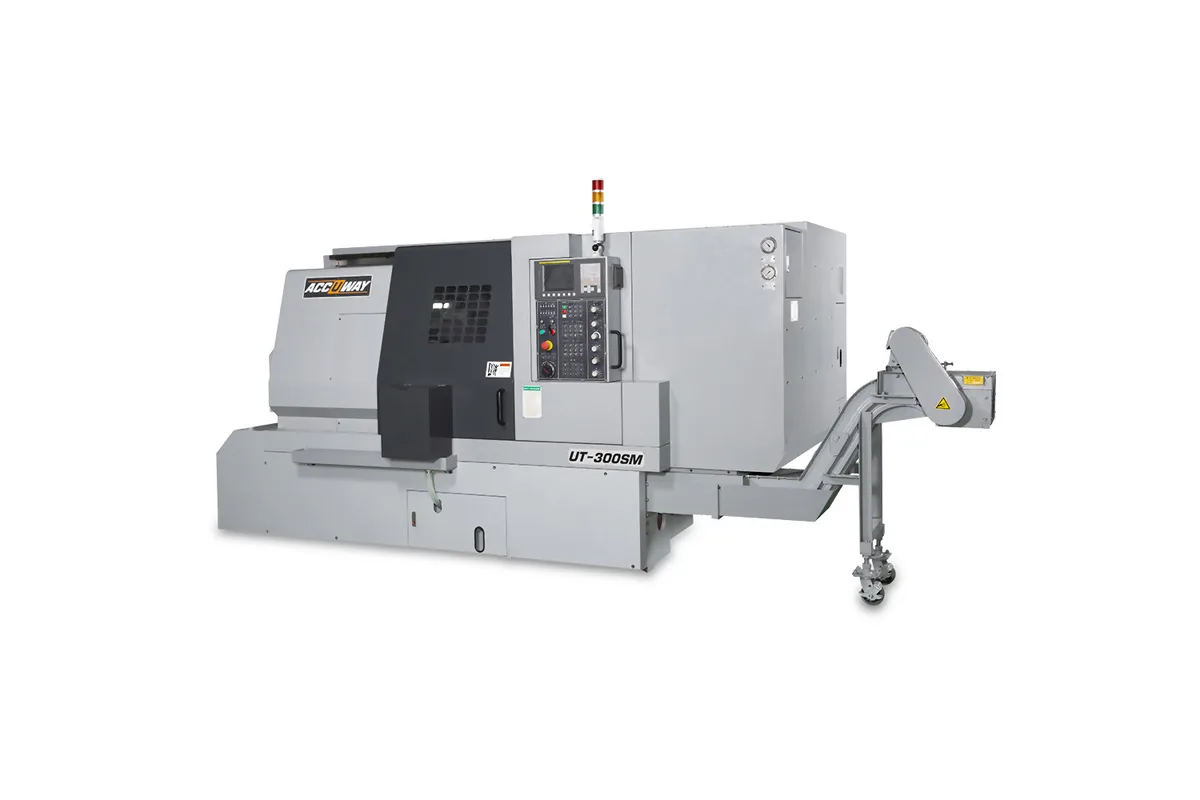

Accuway UT-300S / UT-300SM slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

3,500 / 2,700 / 2,500 / 2,000 rpm

Spindle Power

Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)

Max Turn Length

610 / 610 / 540 / 540 mm (24.0 / 24.0 / 21.3 / 21.3 in)

control

FANUC 0i-T

swing over bed

612 mm (24.1 in)

swing over saddle

400 mm (15.7 in)

How much does the Accuway UT-300S cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-300S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Two spindles and one plain turret make the Accuway UT-300S a machine for turning both ends of a part without an operator turning it round. The second spindle rides on a B axis with 700 mm (27.6 in) of travel and takes the part from the main chuck; the table has no tailstock rows.

The two spindles are deliberately unequal. Spindle 1 uses the UT-300 columns, A2-8 or A2-11, chucks of 10 to 15 in, bar capacity from 75 mm (3.0 in) to 116.5 mm (4.6 in), and a 15/18.5 kW (20.1/24.8 hp) motor. Spindle 2 is A2-5 with a 6 or 8 in chuck, a 44 mm (1.7 in) bore and 5.5/7.5 kW (7.4/10.1 hp), running 6,000 rpm or 5,000 rpm depending on the column. Heavy stock removal therefore belongs on the first side; the second operation should be the lighter one.

Turning diameter is 500 mm (19.7 in) at SP1 and 400 mm (15.7 in) at SP2, with a turning length of 610 mm (24.0 in) in the A2-8 columns and 540 mm (21.3 in) in the A2-11 columns. X travel is 300 mm (11.8 in), Z travel 750 mm (29.5 in).

The turret is a 12-station BOT type with hydraulic drive, and no rotary tool rows are given. This is pure two-sided turning. The UT-300SM on the same page adds live tools and a BMT-65 turret. Weight is 5,900 kg (13,007 lb).

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	612 mm (24.1 in)
Swing Over Saddle	400 mm (15.7 in)
Max Turning Diameter Sp1	500 mm (19.7 in)
Max Turning Diameter Sp2	400 mm (15.7 in)
Max Turning Length	610 / 610 / 540 / 540 mm (24.0 / 24.0 / 21.3 / 21.3 in)
Guideway Type	Box
Spindle Nose	A2-8 / A2-8 / A2-11 / A2-11
Chuck Size	10 / 12 / 15 / 15 in
Bar Capacity	75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in)
Max Spindle Speed	3,500 / 2,700 / 2,500 / 2,000 rpm
Spindle Motor Power	Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)
Spindle 2 Nose	A2-5
Spindle 2 Chuck Size	6 / 6 / 8 / 8 in
Spindle 2 Bar Capacity	44 mm (1.7 in)
Spindle 2 Speed	6,000 / 6,000 / 5,000 / 5,000 rpm
Spindle 2 Power	Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)
X Axis Travel	300 mm (11.8 in)
Z Axis Travel	750 mm (29.5 in)
B Axis Travel	700 mm (27.6 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	24 m/min (945 in/min)
Rapid Traverse B	20 m/min (787 in/min)
Turret Tooling	BOT
Turret Drive	Hydraulic
Turret Stations	12
Square Tool Shank	25 mm (1.0 in)
Round Tool Shank	40 mm (1.6 in)
Machine Dimensions	L x W x H: 3.5 x 1.8 x 1.9 m (137.8 x 70.9 x 74.8 in)
Machine Weight	5,900 kg (13,007 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Second spindle on a 700 mm (27.6 in) B axis for back-side turning
500 mm (19.7 in) turning diameter at spindle 1
Second spindle runs to 6,000 rpm with a 6 in chuck
B-axis rapid traverse of 20 m/min (787 in/min) for part transfer
Main spindle bar capacity up to 116.5 mm (4.6 in)

Limitations

No rotary tools: this version only turns
Spindle 2 passes 44 mm (1.7 in) and has 5.5/7.5 kW (7.4/10.1 hp)
No tailstock rows, so long shafts lack centre support
One turret serves both spindles, so the two sides are cut in sequence

Best For

Flanges and rings turned on both faces in one cycle Bar parts finished complete with cut-off transfer Bearing races and gear blanks in batches Two-operation turning without manual reloading

Frequently Asked Questions

01 What are the two spindles of the Accuway UT-300S?

Spindle 1 is A2-8 or A2-11 with a 10, 12 or 15 in chuck and up to 3,500 rpm on 15/18.5 kW (20.1/24.8 hp). Spindle 2 is A2-5 with a 6 or 8 in chuck, 44 mm (1.7 in) bar capacity, 6,000 or 5,000 rpm and 5.5/7.5 kW (7.4/10.1 hp).

02 How far does the second spindle travel on the UT-300S?

The B axis, which carries the second spindle, travels 700 mm (27.6 in) at a rapid traverse of 20 m/min (787 in/min). The long-bed UT-300LS extends that to 1,200 mm (47.2 in).

03 Does the UT-300S have live tooling?

No. Its table lists a BOT turret with hydraulic drive and no rotary tool speed or power. The 0 degree and 90 degree rotary tool holders in the option list are marked for the UT-300SM, which has rotary tools at 4,000 rpm.

04 What turning sizes does the UT-300S handle?

Maximum turning diameter is 500 mm (19.7 in) at SP1 and 400 mm (15.7 in) at SP2. Maximum turning length is 610 mm (24.0 in) in the first two spindle columns and 540 mm (21.3 in) in the other two. Swing over bed is 612 mm (24.1 in).
