Hyundai-WIA CNC Lathes / Turning Centers

Hyundai-WIA LV 800RM

Est. $200,000 - $300,000 (new) Possible older model Updated 2026-10-03

This model was not found in Hyundai-WIA's current lineup when we checked on 2026-09-24 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

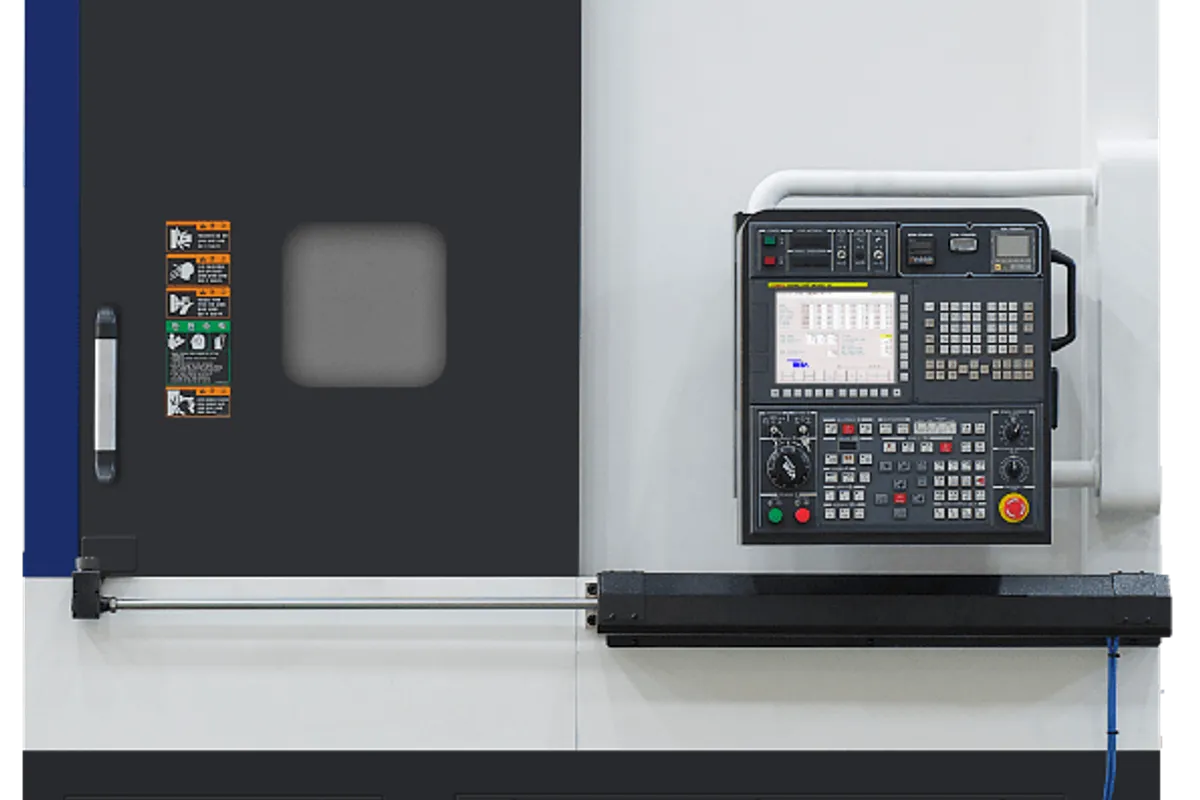

Hyundai-WIA LV 800RM CNC Lathes / Turning Centers

Key Specifications

Rapid Traverse

20 m/min (787 ipm)

max turning diameter

800 mm (31.5 in)

max turning height

600 mm (23.6 in)

table diameter

650 mm (25.6 in)

table speed max

800 RPM

spindle motor

37 kW (50 HP)

How much does the Hyundai-WIA LV 800RM cost?

Estimated price range

Est.$200,000 - $300,000 (new)

Our best estimate for a cnc lathes / turning center in this class — not a quote from Hyundai-WIA. Configuration moves it a long way.

Overview

The Hyundai-WIA LV 800RM is a vertical turning lathe with a ram-type turret, a 650 mm (25.6 in) table and a listed maximum turning diameter of 800 mm (31.5 in). It is not in the maker's current lineup, so this page is mainly of use to someone assessing a used machine.

The listed figures give 460 mm (18.1 in) of X travel and 600 mm (23.6 in) of Z travel on box ways, with a rapid traverse of 20 m/min (787 ipm). Swing is listed at 35 in, comfortably over the turning diameter, and the machine weighs approximately 8,000 kg (17,637 lb). The turret has 12 stations, and live tooling is listed as an option, so it may or may not be on a particular machine.

A ram-type turret carries its tools on a ram that travels down into the part, instead of on a slide beside it. That favours deep bores and tall parts, where a ram can get to the bottom of a pocket that a wider turret body would foul. Tool overhang grows as the ram extends, so finish and tool life at full depth depend on how rigid the ram is, which is worth trying with a test cut.

The listed figures for spindle speed and motor power do not agree with each other, so take both from the nameplate of the machine in question. Among current models, the LV1100 Series is listed at 1,160 mm (45.7 in) of turning diameter with a 12-station turret and 24/24 m/min (945 ipm) rapids.

Full Specifications

Parameter	Value
Max Turning Diameter	800 mm (31.5 in)
Max Turning Height	600 mm (23.6 in)
Table Diameter	650 mm (25.6 in)
Table Speed Max	800 RPM
Spindle Motor	37 kW (50 HP)
Turret Stations	12
Turret Type	Ram-type (RM)
X Axis Travel	460 mm (18.1 in)
Z Axis Travel	600 mm (23.6 in)
Rapid Traverse Rate	20 m/min (787 ipm)
Guideway Type	Box ways (X and Z)
Live Tooling	Available as option
CNC Control	Fanuc 0i-TF Plus
Machine Weight	8,000 kg (17,637 lb) approx.
CNC Control	CNC (Fanuc)
Chuck Size	18
Swing	35"
Turning Diameter	31.5"
Machining Length	31.5"
Max RPM	2,000 RPM
Power	40 hp

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

Ram-type (RM) turret with 12 stations for reaching into deep bores
Box ways on both the X and Z axes
800 mm (31.5 in) listed turning diameter with a 650 mm (25.6 in) table
Live tooling is available as an option

Limitations

Not in the current lineup, and the listed speed and power figures conflict, so check the nameplate
Rapid traverse of 20 m/min (787 ipm) trails the 24/24 m/min (945 ipm) of the current LV1100 Series
Live tooling is an option, not standard
Approximately 8,000 kg (17,637 lb) of machine weight to rig and found

Best For

Deep-bore and tall-part turning that suits a ram-type turret Rings and housings within 800 mm (31.5 in) of turning diameter Buyers assessing a used vertical lathe with box ways

Frequently Asked Questions

01 What does RM mean on the LV 800RM?

The listed turret type is ram-type (RM): the tools are carried on a ram that moves down into the part. The turret has 12 stations and live tooling is listed as an option.

02 What are the travels of the LV 800RM?

The listed figures are 460 mm (18.1 in) on X and 600 mm (23.6 in) on Z, on box ways, with a rapid traverse of 20 m/min (787 ipm). Maximum turning diameter is listed at 800 mm (31.5 in) and table diameter at 650 mm (25.6 in).

03 Is the LV 800RM still a current model?

It is not in the maker's current lineup. A current vertical model in the range is the LV1100 Series, listed at 1,160 mm (45.7 in) of turning diameter with a 12-station turret and 24/24 m/min (945 ipm) rapids.

04 How heavy is the LV 800RM?

The listed machine weight is approximately 8,000 kg (17,637 lb). Check floor loading and rigging access for that weight, and confirm the figure from the machine's own plate, since it is given as an approximation.
