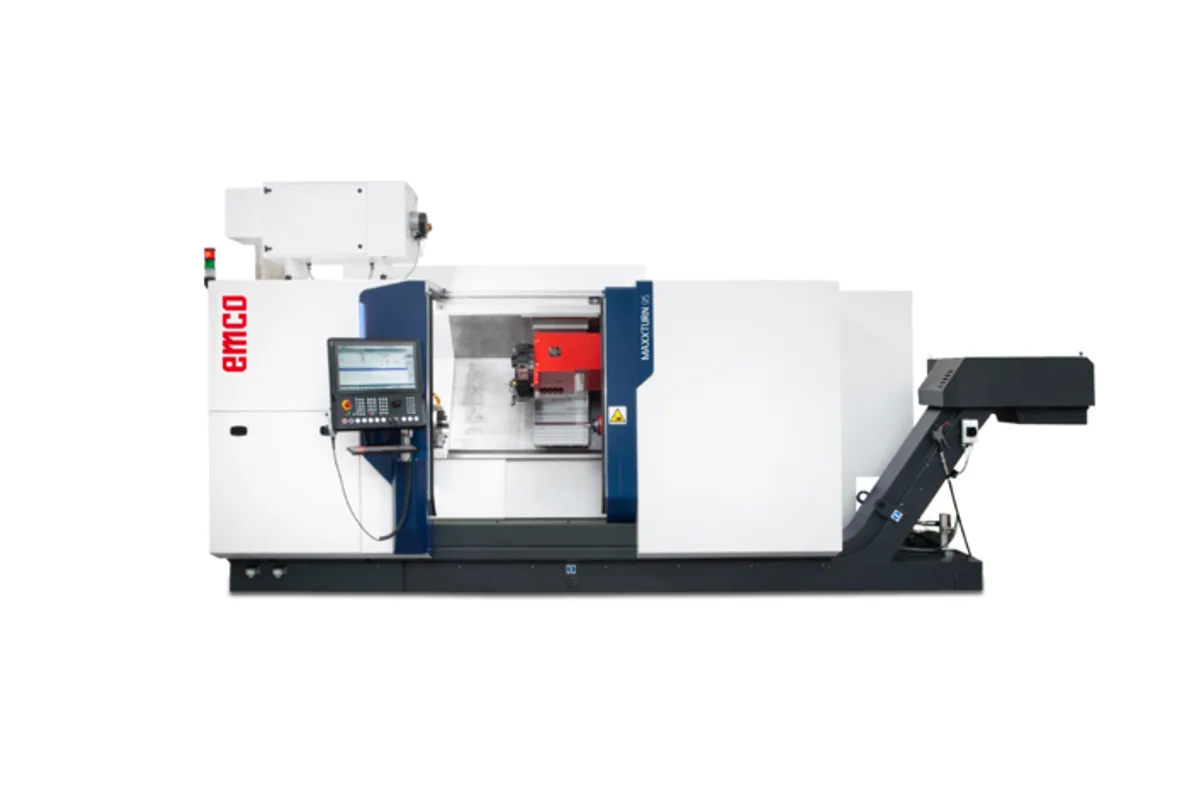

Emco Maxxturn 95
Image: emco-world.com, Emco
Key Specifications
Max Spindle
Spindle Power
x axis travel
y axis travel
z axis travel
bar capacity
How much does the Emco Maxxturn 95 cost?
Price estimate
We do not have a price for the Emco Maxxturn 95 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Emco Maxxturn 95 is a shaft lathe. It has 1,430 mm (56.3 in) between centres, 1,360 mm (53.5 in) of Z travel, an automatic tailstock and a spindle that passes 95 mm (3.7 in) bar, and Emco lists a steady rest for it. There is no counter spindle in the table: the machine is built to turn long parts between a chuck and a centre.
Two spindle drives are listed side by side. Speed reads 3500 / 2500 rpm, power 33/42 kW and torque 800/1040 Nm, so the choice is between a faster spindle and a slower one with more torque, both on an A2-8 nose. The same pairing runs through the turret rows. Tooling is VDI 40 / BMT55P; the driven-tool speed is 4000 / 12000 rpm, power 8 / 10 kW and torque 35 / 30 Nm. The VDI 40 side is the lower-speed drive and the BMT55P side the high-speed one.
Y travel is +80/-60 mm, long for a lathe of this size, and it is integrated directly into the machine. Together with 12 driven stations and a C axis it lets keyways, flats and bolt circles be finished along the length of a shaft without moving the part to a mill.
The tailstock travels 1,050 mm (41.3 in) and takes an MK4 centre. Maximum turning diameter is 500 mm (19.7 in) under a 700 mm (27.6 in) swing. At 6,511 x 2,249 x 2,150 mm (256.3 x 88.5 x 84.6 in) the machine is long and fairly narrow, and it weighs 11,000 kg (24,250 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 318 mm (12.5 in) |
| Y Axis Travel | +80/-60 mm |
| Z Axis Travel | 1,360 mm (53.5 in) |
| Bar Capacity | 95 mm (3.7 in) |
| Max Turning Diameter | 500 mm (19.7 in) |
| Swing Over Bed | 700 mm (27.6 in) |
| Distance Between Centers | 1,430 mm (56.3 in) |
| Rapid Traverse Xyz | 24/12/30 m/min |
| Max Spindle Speed | 3500 / 2500 rpm |
| Spindle Nose | A2-8 |
| Spindle Motor Power | 33/42 kW |
| Spindle Torque | 800/1040 Nm |
| Tailstock Taper | MK4 |
| Tailstock Travel | 1,050 mm (41.3 in) |
| Turret Tooling | VDI 40 / BMT55P |
| Turret Stations | 12 |
| Driven Tool Stations | 12 |
| Driven Tool Speed | 4000 / 12000 rpm |
| Driven Tool Power | 8 / 10 kW |
| Driven Tool Torque | 35 / 30 Nm |
| Machine Dimensions | 6,511 x 2,249 x 2,150 mm (256.3 x 88.5 x 84.6 in) |
| Machine Weight | 11,000 kg (24,250 lb) |
Specifications sourced from emco-world.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,430 mm (56.3 in) between centres with an automatic tailstock travelling 1,050 mm (41.3 in)
- Spindle torque of 800/1040 Nm depending on the drive chosen
- Y axis with +80/-60 mm of travel, integrated into the machine
- 12 driven stations on a VDI 40 / BMT55P turret
- Steady rest offered for shaft machining
Limitations
- No counter spindle is listed, so second-end work means turning the part round
- The higher-torque spindle is limited to the lower of the two speeds in 3500 / 2500 rpm
- Needs a long floor space: 6,511 x 2,249 x 2,150 mm (256.3 x 88.5 x 84.6 in)
- The table gives one bed length; longer work belongs on the Universalturn 90 or Maxxturn 110
Best For
Frequently Asked Questions
01
The distance between centres is 1,430 mm (56.3 in) and Z travel is 1,360 mm (53.5 in). The automatic tailstock travels 1,050 mm (41.3 in). Emco also lists a steady rest, which matters for slender shafts at these lengths.
02
The table lists two: speed 3500 / 2500 rpm, power 33/42 kW, torque 800/1040 Nm. The first value in each pair belongs to the faster drive and the second to the higher-torque drive. Both use an A2-8 spindle nose.
03
Both carry 12 tools and both can drive all 12. The table pairs them as 4000 / 12000 rpm, 8 / 10 kW and 35 / 30 Nm: the VDI 40 turret is the lower-speed drive, the BMT55P the high-speed one. Holders are not interchangeable between the two interfaces.
04
The Maxxturn 110 is the larger machine, with a 680 mm (26.8 in) turning diameter, an A2-11 spindle nose and three bed lengths. The Maxxturn 95 turns 500 mm (19.7 in) on an A2-8 nose and weighs 11,000 kg (24,250 lb).
