Accuway UT-300SM

Q: How much does the Accuway UT-300SM cost?

The price estimate for the Accuway UT-300SM is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-300sm#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

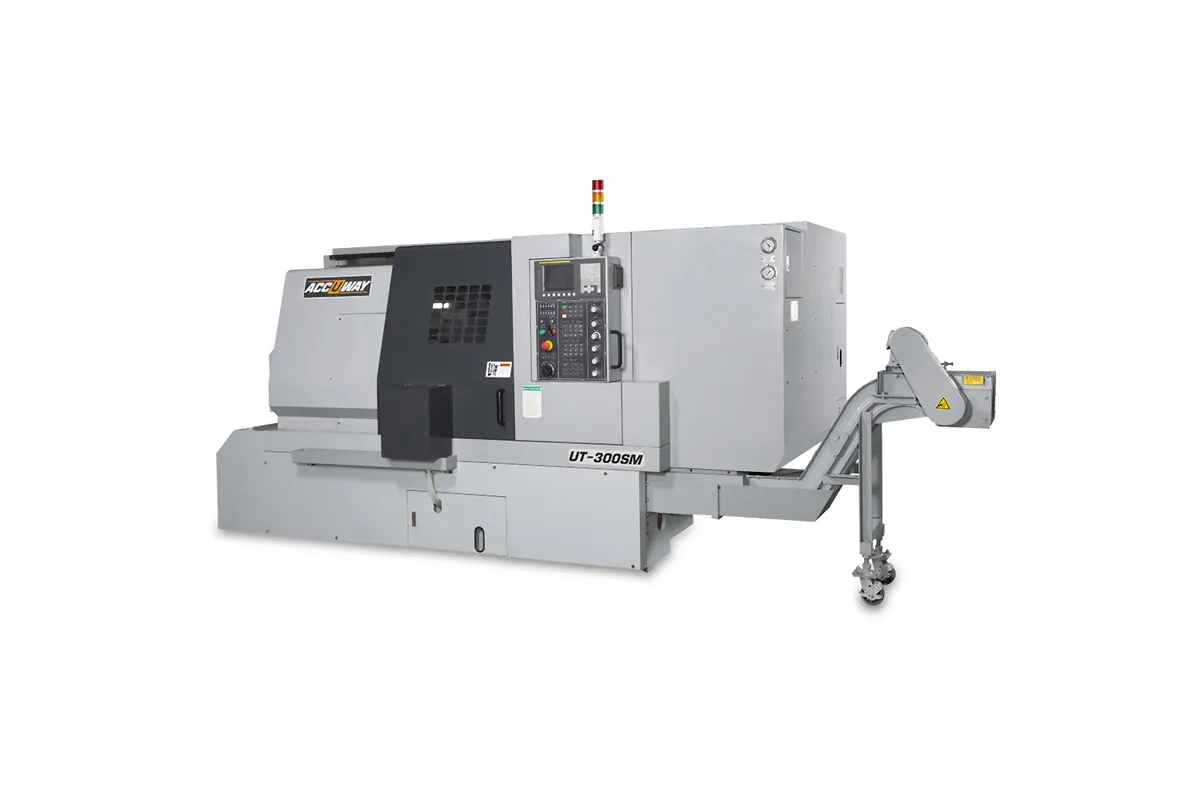

Accuway UT-300S / UT-300SM slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

3,500 / 2,700 / 2,500 / 2,000 rpm

Spindle Power

Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)

Max Turn Length

540 / 540 / 470 / 470 mm (21.3 / 21.3 / 18.5 / 18.5 in)

control

FANUC 0i-T

swing over bed

700 mm (27.6 in)

swing over saddle

500 mm (19.7 in)

How much does the Accuway UT-300SM cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-300SM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accuway UT-300SM puts driven tools between two spindles. A BMT-65 turret with 12 stations and servo mechanical drive runs rotary tools at 4,000 rpm, the main spindle holds the first side, and an A2-5 second spindle on a 700 mm (27.6 in) B axis takes over for the second.

Note the tooling row. Other live-tool UT-300 models give BMT/VDI; this page states BMT-65 specifically, which fixes the holder interface a shop has to buy into. Holders for 0 degree and 90 degree rotary tools are optional accessories marked for the UT-300SM.

Capacity sits a little below the turning-only UT-300S. Turning diameter is 480 mm (18.9 in) at SP1 and 375 mm (14.8 in) at SP2, and turning length is 540 mm (21.3 in) or 470 mm (18.5 in) by spindle column. X travel is 280 mm (11.0 in). The casting differs too: swing over bed is 700 mm (27.6 in) and swing over saddle 500 mm (19.7 in), and the machine weighs 6,000 kg (13,228 lb).

With the part held in either spindle, the turret can drill and tap a bolt circle on the front, hand the part over, and repeat on the back. There is no Y axis, so off-centre milling needs the UT-300SY. Rotary tool power is 3.7/5.5 kW (5.0/7.4 hp); the second spindle has 5.5/7.5 kW (7.4/10.1 hp) and a 44 mm (1.7 in) bar capacity.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	700 mm (27.6 in)
Swing Over Saddle	500 mm (19.7 in)
Max Turning Diameter Sp1	480 mm (18.9 in)
Max Turning Diameter Sp2	375 mm (14.8 in)
Max Turning Length	540 / 540 / 470 / 470 mm (21.3 / 21.3 / 18.5 / 18.5 in)
Guideway Type	Box
Spindle Nose	A2-8 / A2-8 / A2-11 / A2-11
Chuck Size	10 / 12 / 15 / 15 in
Bar Capacity	75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in)
Max Spindle Speed	3,500 / 2,700 / 2,500 / 2,000 rpm
Spindle Motor Power	Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)
Spindle 2 Nose	A2-5
Spindle 2 Chuck Size	6 / 6 / 8 / 8 in
Spindle 2 Bar Capacity	44 mm (1.7 in)
Spindle 2 Speed	6,000 / 6,000 / 5,000 / 5,000 rpm
Spindle 2 Power	Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)
X Axis Travel	280 mm (11.0 in)
Z Axis Travel	750 mm (29.5 in)
B Axis Travel	700 mm (27.6 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	24 m/min (945 in/min)
Rapid Traverse B	20 m/min (787 in/min)
Turret Tooling	BMT-65
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	25 mm (1.0 in)
Round Tool Shank	40 mm (1.6 in)
Rotary Tool Speed	4,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Machine Dimensions	L x W x H: 3.5 x 1.9 x 2 m (137.8 x 74.8 x 78.7 in)
Machine Weight	6,000 kg (13,228 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

BMT-65 turret with 4,000 rpm rotary tools serving two spindles
Second spindle travel of 700 mm (27.6 in) on the B axis
480 mm (18.9 in) turning diameter at spindle 1
Main spindle columns up to A2-11 with a 15 in chuck
Swing over bed of 700 mm (27.6 in)

Limitations

No Y axis for off-centre milling
Turning diameter at spindle 2 is 375 mm (14.8 in)
Second spindle limited to a 44 mm (1.7 in) bar and 5.5/7.5 kW (7.4/10.1 hp)
No tailstock rows in the table

Best For

Flanges drilled and tapped on both faces Fittings and couplings finished complete from bar Parts needing cross holes after back-side turning Unattended two-operation work with a parts catcher

Frequently Asked Questions

01 What turret does the Accuway UT-300SM use?

A 12-station turret with BMT-65 tooling and servo mechanical drive. Rotary tool speed is 4,000 rpm and rotary tool motor power 3.7/5.5 kW (5.0/7.4 hp). Square shanks are 25 mm (1.0 in) and round shanks 40 mm (1.6 in).

02 How does the UT-300SM differ from the UT-300S?

The UT-300S has a BOT turret with hydraulic drive and no rotary tools, turns 500 mm (19.7 in) at SP1 and weighs 5,900 kg (13,007 lb). The UT-300SM has rotary tools, turns 480 mm (18.9 in) at SP1 and weighs 6,000 kg (13,228 lb).

03 What are the second spindle figures on the UT-300SM?

Spindle 2 has an A2-5 nose, a 6 in or 8 in chuck depending on the column, 44 mm (1.7 in) of bar capacity, a top speed of 6,000 or 5,000 rpm and a 5.5/7.5 kW (7.4/10.1 hp) motor. Its B axis rapids at 20 m/min (787 in/min).

04 How large is the UT-300SM?

The dimension row gives 3.5 x 1.9 x 2 m (137.8 x 74.8 x 78.7 in) as length, width and height. Net weight is 6,000 kg (13,228 lb). Z travel is 750 mm (29.5 in).
