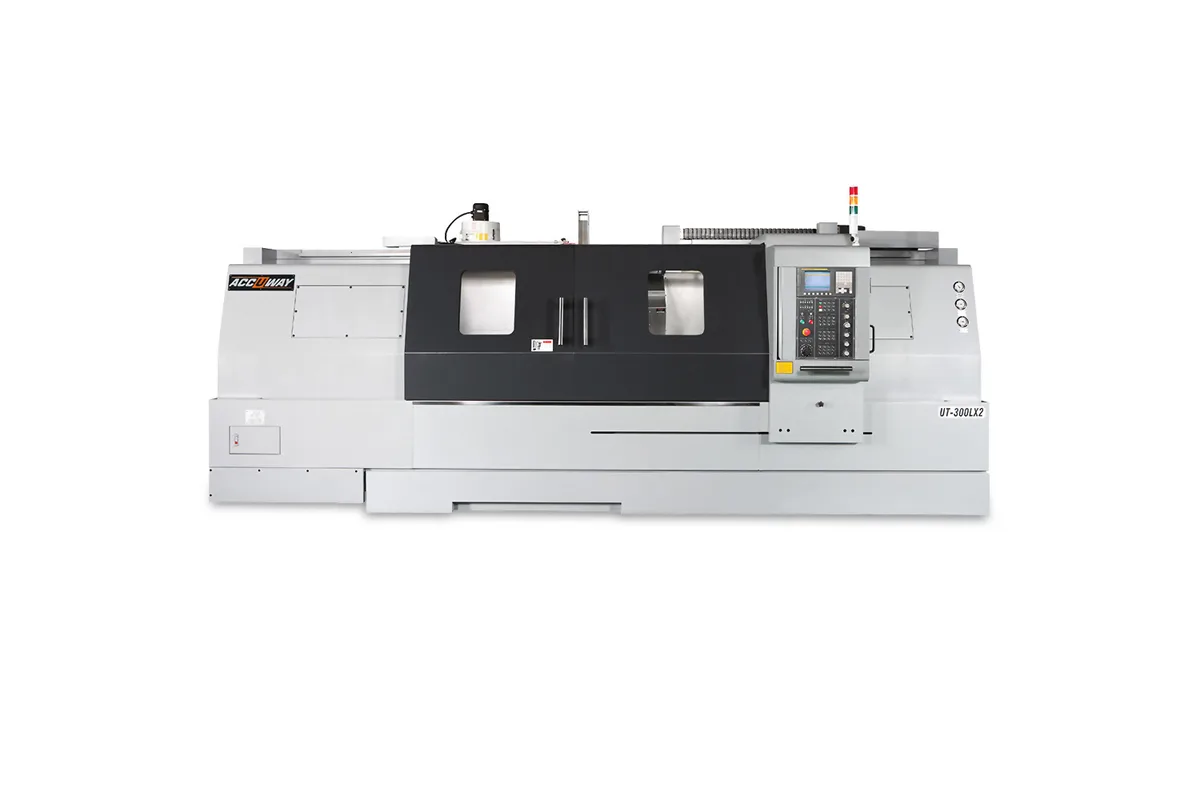

Accuway UT-300LX2
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300LX2 cost?
Price estimate
We do not have a price for the Accuway UT-300LX2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two metres between centres is the point of the Accuway UT-300LX2. Its Z travel is 2,250 mm (88.6 in), the maximum turning length 2,180 mm (85.8 in) in the A2-8 columns and 2,100 mm (82.7 in) in the A2-11 columns.
A bed of that length changes how the machine moves. Z rapid traverse is 15 m/min (591 in/min), compared with 24 m/min (945 in/min) on the UT-300LX one size down; X remains at 20 m/min (787 in/min). On two-metre shafts cut time dominates anyway, so the slower rapid costs little.
Weight is 9,000 kg (19,841 lb) on a 5.5 x 2.3 x 2.2 m (216.5 x 90.6 x 86.6 in) outline. Check the foundation and the route into the building before ordering, since the machine is a single long casting on box guideways.
Diameter capacity is unchanged from the rest of the UT-300 line: 500 mm (19.7 in) of turning diameter under a 612 mm (24.1 in) swing over bed, with a 400 mm (15.7 in) swing over the saddle. The tailstock body has 2,040 mm (80.3 in) of travel, so it can come close to the chuck for short jobs. A steady rest is optional. The 12-station BOT turret and the four spindle columns, up to A2-11 with a 116.5 mm (4.6 in) bar passage, are the series standard, and the motor is 15/18.5 kW (20.1/24.8 hp).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 612 mm (24.1 in) |
| Swing Over Saddle | 400 mm (15.7 in) |
| Max Turning Diameter | 500 mm (19.7 in) |
| Max Turning Length | 2,180 / 2,180 / 2,100 / 2,100 mm (85.8 / 85.8 / 82.7 / 82.7 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 2,250 mm (88.6 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 15 m/min (591 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Tailstock Body Travel | 2,040 mm (80.3 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 110 mm (4.3 in) |
| Tailstock Quill Taper | MT#5 |
| Machine Dimensions | L x W x H: 5.5 x 2.3 x 2.2 m (216.5 x 90.6 x 86.6 in) |
| Machine Weight | 9,000 kg (19,841 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,180 mm (85.8 in) turning length in the A2-8 spindle columns
- Tailstock body travel of 2,040 mm (80.3 in)
- Optional steady rest for slender shafts
- 500 mm (19.7 in) turning diameter kept on the long bed
- 9,000 kg (19,841 lb) machine on box guideways
Limitations
- Z rapid traverse falls to 15 m/min (591 in/min)
- 5.5 m long and 9,000 kg (19,841 lb) to install
- No rotary tools and no Y axis rows
- No bar feeder or gantry loader among the listed options
Best For
Frequently Asked Questions
01
Z-axis travel is 2,250 mm (88.6 in). Maximum turning length is 2,180 mm (85.8 in) with the A2-8 spindle noses and 2,100 mm (82.7 in) with the A2-11 noses. The tailstock body travels 2,040 mm (80.3 in).
02
The table simply states the figures: 15 m/min (591 in/min) of Z rapid traverse on the UT-300LX2 and 24 m/min (945 in/min) on the UT-300LX. A longer ball screw has a lower critical speed, which is the usual reason long-bed lathes rapid more slowly.
03
The chuck size row lists 10, 12, 15 and 15 in across the four spindle columns. The two 15 in columns use an A2-11 nose and pass a 105 mm (4.1 in) or 116.5 mm (4.6 in) bar, at 2,500 rpm or 2,000 rpm.
04
The machine dimensions are 5.5 x 2.3 x 2.2 m (216.5 x 90.6 x 86.6 in) as length, width and height, and the net weight is 9,000 kg (19,841 lb). Chip conveyor and electrical clearances come on top.
