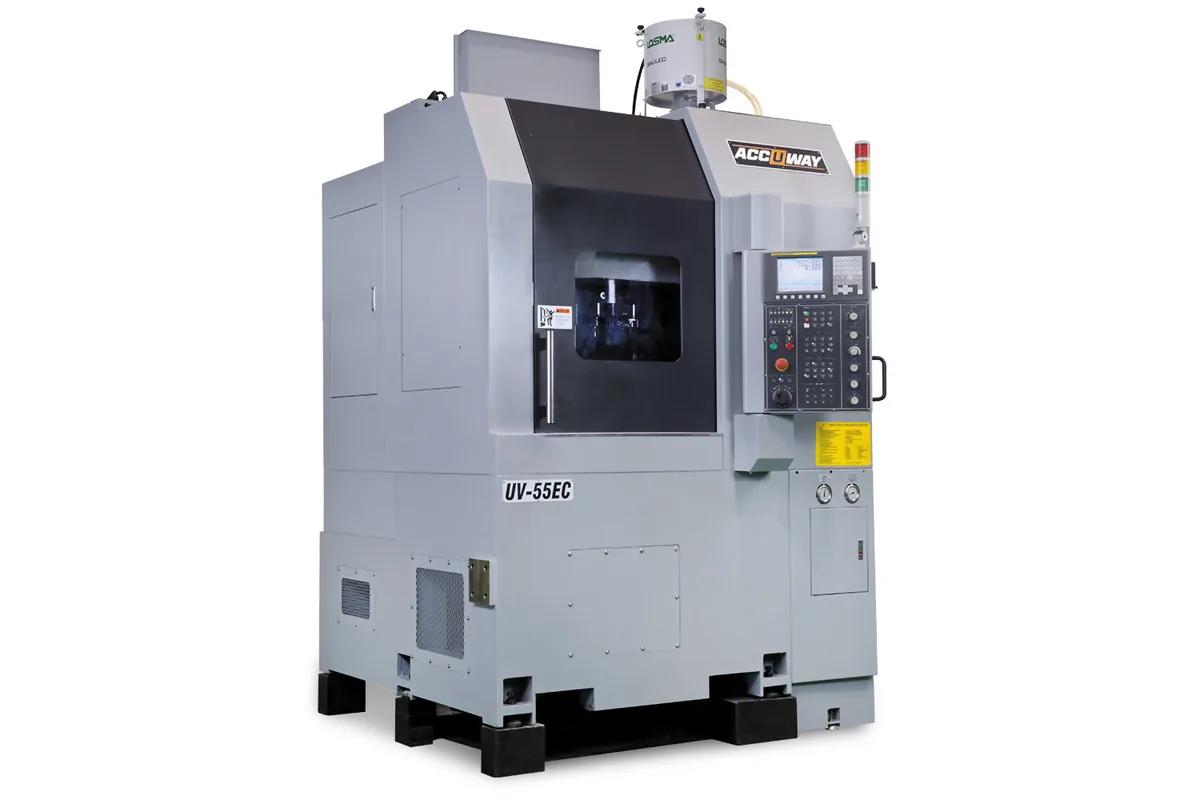

Accuway UV-55EC

Q: How much does the Accuway UV-55EC cost?

The price estimate for the Accuway UV-55EC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-uv-55ec#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

2,500 rpm

Spindle Power

Cont. / 30min: 15/18.5 kW (20.1/24.8 hp)

Max Turn Length

550 mm (21.7 in)

control

FANUC 0i-T

swing over bed

750 mm (29.5 in)

max turning diameter

550 mm (21.7 in)

How much does the Accuway UV-55EC cost?

Price estimate

Uncertain

We do not have a price for the Accuway UV-55EC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A BMT turret with servo mechanical drive is what the Accuway UV-55EC adds to the small vertical turning frame. The base model carries a hydraulic BOT turret. Here the tooling system row reads BMT, and the options list includes 0 degree and 90 degree rotary tool holders, which is the hardware for drilling and milling on a turned part without a second machine.

One caution belongs next to that. The spec table for this model prints no rotary tool speed or power, so the figures for live tooling have to come from Accuway before a milling operation is planned around them.

Capacity is 550 mm (21.7 in) in turning diameter and 550 mm (21.7 in) in length, on a 750 mm (29.5 in) swing. The A2-8 spindle turns 2,500 rpm on 15/18.5 kW (20.1/24.8 hp) with a belt drive, and the chuck is listed as 12 (15) in. X and Z travels are 295 mm (11.6 in) and 550 mm (21.7 in), with rapids of 20 m/min (787 in/min) and 7 m/min (276 in/min).

The turret has 12 stations for 25 mm (1.0 in) square and 40 mm (1.6 in) round shanks. Guideways are linear, the weight is 5,300 kg (11,684 lb), and the FANUC 0i-T control comes with a 10.4" monitor. Among the standard accessories are a chip conveyor with chip cart and a tool kit; an auto door and a Heidenhain linear scale are optional.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	750 mm (29.5 in)
Max Turning Diameter	550 mm (21.7 in)
Max Turning Length	550 mm (21.7 in)
Guideway Type	Linear
Spindle Nose	A2-8
Chuck Size	12 (15) in
Max Spindle Speed	2,500 rpm
Spindle Drive	Belt
Spindle Motor Power	Cont. / 30min: 15/18.5 kW (20.1/24.8 hp)
X Axis Travel	295 mm (11.6 in)
Z Axis Travel	550 mm (21.7 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	7 m/min (276 in/min)
Turret Tooling	BMT
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	25 mm (1.0 in)
Round Tool Shank	40 mm (1.6 in)
Machine Dimensions	L x W x H: 2.3 x 3.0 x 3.0 m (90.6 x 118.1 x 118.1 in)
Machine Weight	5,300 kg (11,684 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

BMT tooling system on a servo mechanical 12-station turret
Rotary tool holders, 0 degree and 90 degree, are offered as options
550 mm (21.7 in) turning diameter with a 2,500 rpm, 15/18.5 kW (20.1/24.8 hp) spindle
Compact and light for a vertical lathe: 5,300 kg (11,684 lb)

Limitations

The table gives no rotary tool speed or power for this model
X travel is 295 mm (11.6 in), with no Y axis listed
Slow Z rapid of 7 m/min (276 in/min)
The 15" chuck and the gearbox are optional accessories

Best For

Flanges and discs that need bolt circles or cross holes after turning Vertical turning up to 550 mm in diameter Chucking work where a servo turret shortens indexing Small shops consolidating turning and light drilling

Frequently Asked Questions

01 Does the Accuway UV-55EC have live tooling?

It has a BMT turret with servo mechanical drive, and 0 degree and 90 degree rotary tool holders are optional accessories. The specification table does not print a rotary tool speed or power for the UV-55EC, so ask Accuway for those figures.

02 What are the UV-55EC spindle specifications?

A2-8 spindle nose, belt drive, 2,500 rpm and a 15/18.5 kW (20.1/24.8 hp) motor on continuous and 30 min ratings. The chuck diameter row reads 12 (15) in. A gearbox appears among the options.

03 How many tools does the UV-55EC turret hold?

12 stations. Square tool shanks are 25 mm (1.0 in) and round shanks 40 mm (1.6 in). The tooling system is BMT and the turret driven type is servo mechanical, against the hydraulic BOT turret of the UV-55E.

04 What space does the UV-55EC need?

The machine dimension row gives 2.3 x 3.0 x 3.0 m (90.6 x 118.1 x 118.1 in), L x W x H, with a net weight of 5,300 kg (11,684 lb). The chip conveyor and chip cart are included as standard accessories.
