Accuway UT-200

Q: How much does the Accuway UT-200 cost?

The price estimate for the Accuway UT-200 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-200#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

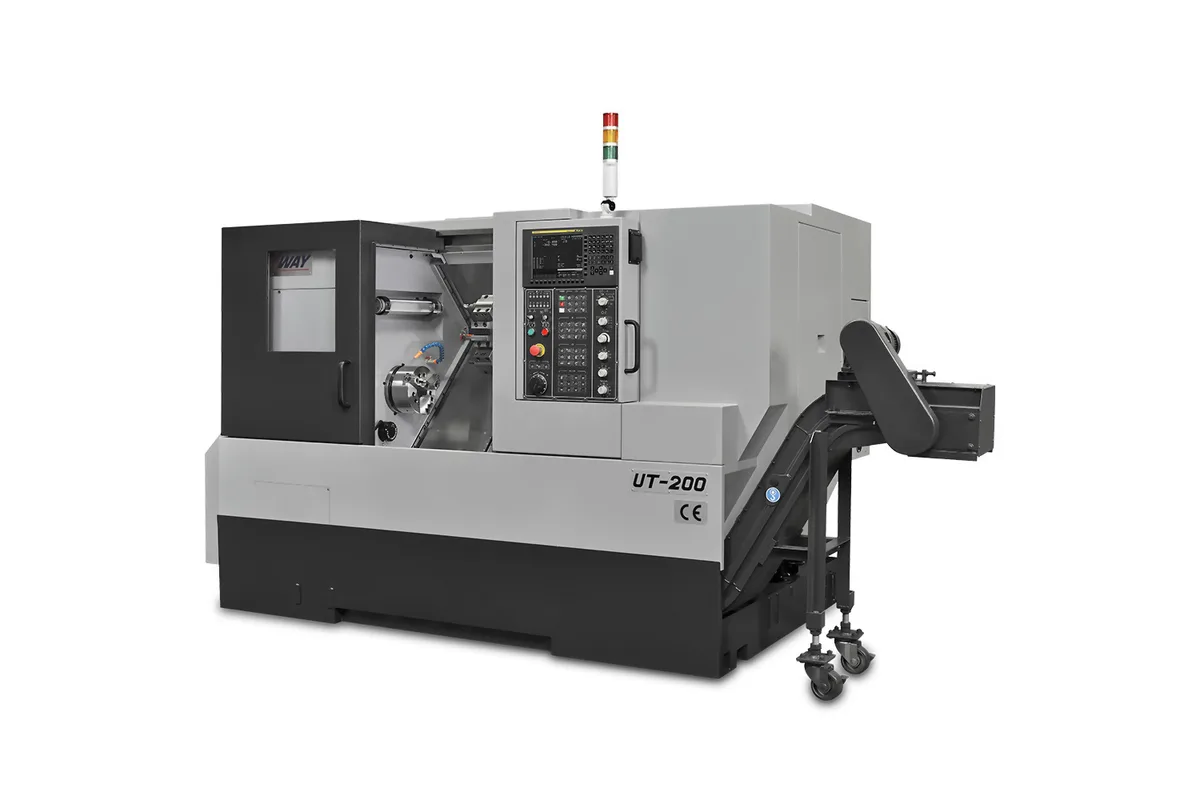

Accuway UT-200 / UT-200M slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 / 4,500 / 4,000 / 3,500 rpm

Spindle Power

Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)

Max Turn Length

550 / 550 / 550 / 470 mm (21.7 / 21.7 / 21.7 / 18.5 in)

control

FANUC 0i-T

swing over bed

505 mm (19.9 in)

swing over saddle

318 mm (12.5 in)

How much does the Accuway UT-200 cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accuway UT-200 is a 2-axis slant bed turning center with box guideways, a 300 mm (11.8 in) maximum turning diameter and 600 mm (23.6 in) of Z travel. It is the plain turning model of the UT-200 page; the UT-200M beside it adds rotary tools.

Accuway prints four spindle columns for this one model, and the right one has to be chosen at order. They read, in order: an A2-5 nose with a 6 in chuck, 44 mm (1.7 in) bar capacity and 6,000 rpm; an A2-6 nose with an 8 in chuck, 52 mm (2.0 in) bar and 4,500 rpm; the same A2-6 and 8 in chuck with a 65 mm (2.6 in) bar at 4,000 rpm; and an A2-8 nose with a 10 in chuck, 75 mm (3.0 in) bar and 3,500 rpm. Maximum turning length is 550 mm (21.7 in) on the first three and 470 mm (18.5 in) on the fourth, because the larger spindle and chuck take up room.

Motor power is 11/15 kW (14.8/20.1 hp), continuous and 30 min, with 15/18.5 kW (20.1/24.8 hp) printed in brackets. The turret uses BOT tooling and its drive is listed as Hydraulic/Servo. Station count also follows the spindle column: 8, 10, 10 or 12, with 25 mm (1.0 in) square shanks except on the 12-station turret, which takes 20 mm (0.8 in).

A tailstock is part of the table: 545 mm (21.5 in) body travel and an MT#4 quill of 75 mm (3.0 in) diameter with 80 mm (3.1 in) of travel. Both axes rapid at 20 m/min (787 in/min). The machine weighs 3,600 kg (7,937 lb).

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	505 mm (19.9 in)
Swing Over Saddle	318 mm (12.5 in)
Max Turning Diameter	300 mm (11.8 in)
Max Turning Length	550 / 550 / 550 / 470 mm (21.7 / 21.7 / 21.7 / 18.5 in)
Guideway Type	Box
Spindle Nose	A2-5 / A2-6 / A2-6 / A2-8
Chuck Size	6 / 8 / 8 / 10 in
Bar Capacity	44 / 52 / 65 / 75 mm (1.7 / 2.0 / 2.6 / 3.0 in)
Max Spindle Speed	6,000 / 4,500 / 4,000 / 3,500 rpm
Spindle Motor Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)
X Axis Travel	220 mm (8.7 in)
Z Axis Travel	600 mm (23.6 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	20 m/min (787 in/min)
Turret Tooling	BOT
Turret Drive	Hydraulic/Servo
Turret Stations	8 / 10 / 10 / 12
Square Tool Shank	25 / 25 / 25 / 20 mm (1.0 / 1.0 / 1.0 / 0.8 in)
Round Tool Shank	32 mm (1.3 in)
Tailstock Body Travel	545 mm (21.5 in)
Tailstock Quill Travel	80 mm (3.1 in)
Tailstock Quill Diameter	75 mm (3.0 in)
Tailstock Quill Taper	MT#4
Machine Dimensions	L x W x H: 2.9 x 1.6 x 1.8 m (114.2 x 63.0 x 70.9 in)
Machine Weight	3,600 kg (7,937 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Four spindle configurations from A2-5 at 6,000 rpm to A2-8 at 3,500 rpm
Bar capacity up to 75 mm (3.0 in) on the A2-8 spindle
Box guideways with 20 m/min (787 in/min) rapids on X and Z
Tailstock with 545 mm (21.5 in) body travel and an MT#4 quill
Bar feeder interface, parts catcher and gantry loader system are available as options

Limitations

No rotary tools; milling needs the UT-200M
Turning length falls to 470 mm (18.5 in) with the A2-8 spindle
8 or 10 turret stations on the smaller spindle columns
The 15/18.5 kW motor figure is bracketed, not the listed rating

Best For

General 2-axis chucking and shaft work up to 300 mm in diameter Bar work from 44 mm to 75 mm, depending on the spindle chosen Shafts supported by a tailstock within 550 mm of turning length Shops that want box ways on an 8 in class lathe

Frequently Asked Questions

01 What spindle options does the Accuway UT-200 have?

Four columns are printed: A2-5 with a 6 in chuck, 44 mm bar and 6,000 rpm; A2-6 with an 8 in chuck, 52 mm bar and 4,500 rpm; A2-6 with an 8 in chuck, 65 mm bar and 4,000 rpm; and A2-8 with a 10 in chuck, 75 mm bar and 3,500 rpm. Motor power is 11/15 kW (14.8/20.1 hp) in every column.

02 How long a part can the UT-200 turn?

Maximum turning length is 550 mm (21.7 in), or 470 mm (18.5 in) with the A2-8 spindle. Z-axis travel is 600 mm (23.6 in) and X-axis travel is 220 mm (8.7 in). Swing over bed is 505 mm (19.9 in) and swing over saddle 318 mm (12.5 in).

03 What turret does the UT-200 use?

A BOT turret with a drive listed as Hydraulic/Servo. The number of tools row reads 8, 10, 10 and 12 across the four spindle columns. Square shanks are 25 mm (1.0 in), or 20 mm (0.8 in) on the 12-station version, and round shanks are 32 mm (1.3 in).

04 What is the difference between the UT-200 and the UT-200L?

Bed length. The UT-200L has 1,050 mm (41.3 in) of Z travel and a 1,045 mm (41.1 in) tailstock body travel, and weighs 4,700 kg (10,362 lb). The UT-200 has 600 mm of Z and weighs 3,600 kg (7,937 lb). Spindle columns and turret are the same.
