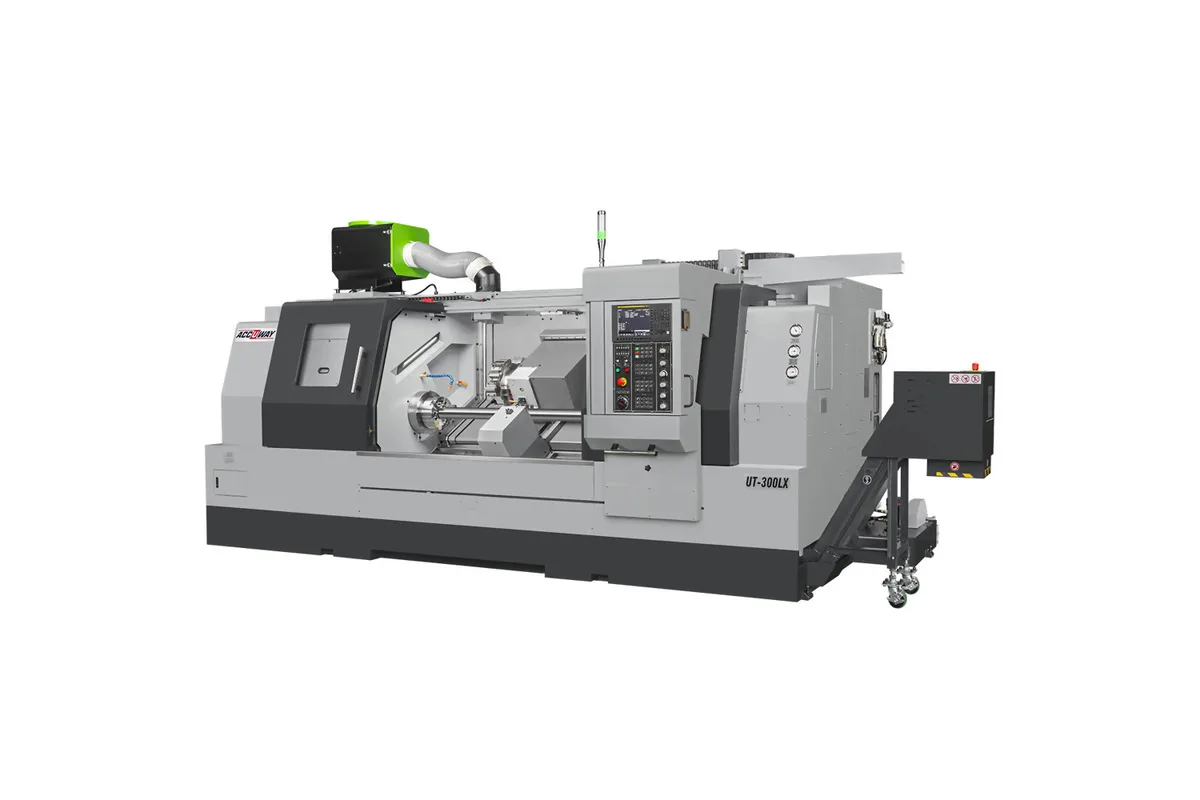

Accuway UT-300LX
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300LX cost?
Price estimate
We do not have a price for the Accuway UT-300LX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 1,750 mm (68.9 in) of Z travel, the Accuway UT-300LX is the first UT-300 bed that Accuway treats as a dedicated shaft machine. The option list changes to match: bar feeder, parts catcher and gantry loader disappear from it, and a steady rest appears.
Maximum turning length is 1,680 mm (66.1 in) with an A2-8 spindle nose, or 1,600 mm (63.0 in) with A2-11, and the turning diameter is 500 mm (19.7 in). The casting is wider as well as longer. Where the UT-300L measures 1.8 m across, the UT-300LX is 5.2 x 2.3 x 2.2 m (204.7 x 90.6 x 86.6 in) and weighs 7,500 kg (16,534 lb).
One figure does not fall off with the extra length. Z rapid traverse is still 24 m/min (945 in/min), the same as the short-bed models, while the next size up drops to 15 m/min (591 in/min) on the UT-300LX2. For a shop whose shafts fit inside 1,680 mm, that makes the LX the quicker machine between cuts.
The tailstock body moves over 1,540 mm (60.6 in), and its MT#5 quill is 110 mm (4.3 in) in diameter. Tooling is a 12-station BOT turret. Spindle choice follows the series: 75 mm (3.0 in) to 116.5 mm (4.6 in) of bar capacity, 3,500 rpm down to 2,000 rpm, on a 15/18.5 kW (20.1/24.8 hp) motor with 18.5/22 kW (24.8/29.5 hp) shown in brackets. No rotary tool rows are given.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 612 mm (24.1 in) |
| Swing Over Saddle | 400 mm (15.7 in) |
| Max Turning Diameter | 500 mm (19.7 in) |
| Max Turning Length | 1,680 / 1,680 / 1,600 / 1,600 mm (66.1 / 66.1 / 63.0 / 63.0 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 1,750 mm (68.9 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Tailstock Body Travel | 1,540 mm (60.6 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 110 mm (4.3 in) |
| Tailstock Quill Taper | MT#5 |
| Machine Dimensions | L x W x H: 5.2 x 2.3 x 2.2 m (204.7 x 90.6 x 86.6 in) |
| Machine Weight | 7,500 kg (16,534 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,680 mm (66.1 in) maximum turning length
- Z rapid traverse of 24 m/min (945 in/min) despite the long bed
- Steady rest offered as an optional accessory
- Tailstock body travel of 1,540 mm (60.6 in)
- A2-11 spindle columns with a 15 in chuck
Limitations
- No bar feeder, parts catcher or loader on the option list
- Footprint of 5.2 x 2.3 x 2.2 m (204.7 x 90.6 x 86.6 in)
- Two-axis only: no rotary tools in the table
- The steady rest is an option, not standard equipment
Best For
Frequently Asked Questions
01
X-axis travel is 300 mm (11.8 in) and Z-axis travel 1,750 mm (68.9 in). Rapid traverse is 20 m/min (787 in/min) in X and 24 m/min (945 in/min) in Z. The tailstock body travels 1,540 mm (60.6 in).
02
A steady rest is on the optional accessories list, together with an auto door, a linear scale, a tool setter and a collet chuck. It is not among the standard accessories, so it has to be ordered.
03
The UT-300LX2 has 2,250 mm (88.6 in) of Z travel, weighs 9,000 kg (19,841 lb) and rapids at 15 m/min (591 in/min) in Z. The UT-300LX has 1,750 mm (68.9 in), weighs 7,500 kg (16,534 lb) and rapids at 24 m/min (945 in/min).
04
The spindle motor row gives 15/18.5 kW (20.1/24.8 hp) as continuous and short-time ratings, and shows 18.5/22 kW (24.8/29.5 hp) in brackets. Maximum spindle speed is 3,500, 2,700, 2,500 or 2,000 rpm depending on the spindle column.
