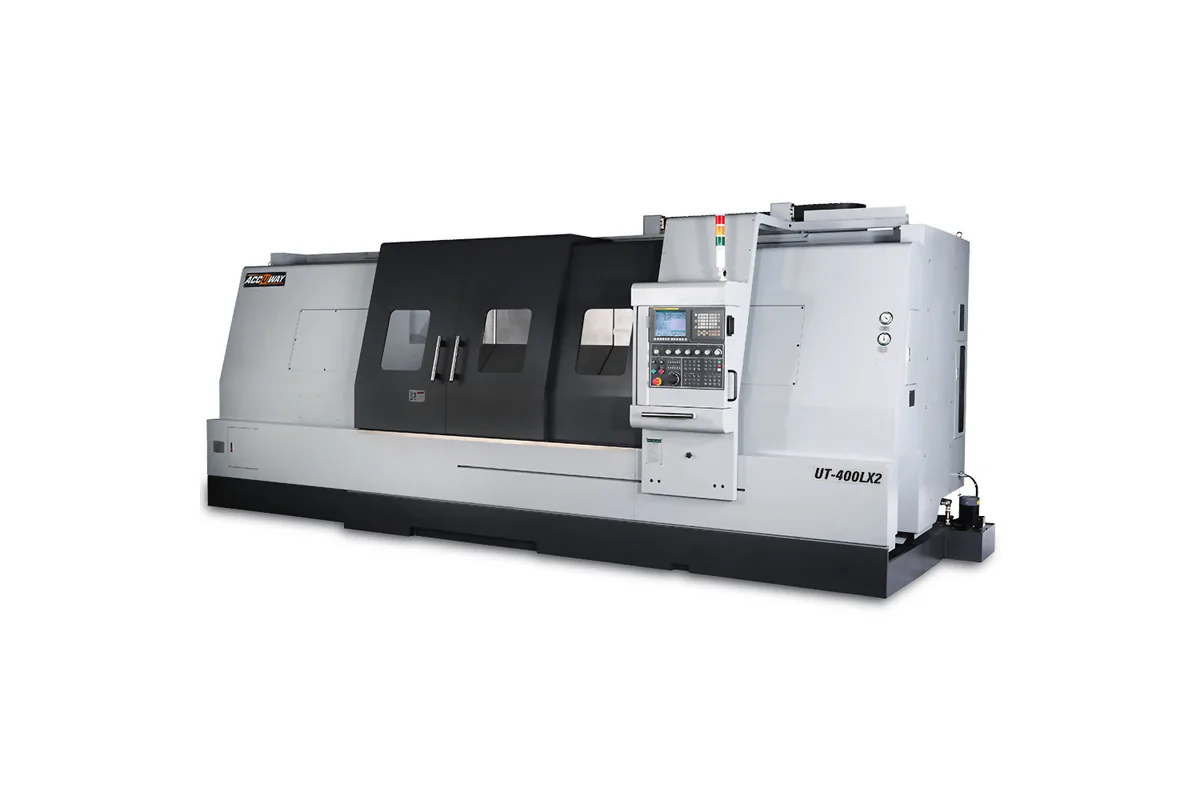

Accuway UT-400LX2
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-400LX2 cost?
Price estimate
We do not have a price for the Accuway UT-400LX2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With the Accuway UT-400LX2 the heavy UT-400 headstock gets a 2,200 mm (86.6 in) Z travel. Maximum turning length is 2,080 mm (81.9 in) and maximum turning diameter 700 mm (27.6 in).
A two-metre part 700 mm across can weigh several tonnes, so the supporting figures count for more than the travels. The tailstock quill is 160 mm (6.3 in) in diameter on an MT#6 taper, and its body can be placed anywhere over 2,050 mm (80.7 in). Swing over the saddle is 745 mm (29.3 in). The machine itself is listed at 17,500 kg (38,580 lb).
That weight row is worth a second look. It is higher than the 17,000 kg (37,478 lb) given for the longer UT-400LX3, which is not what one expects of a shorter bed. Both figures are reproduced as the maker prints them. For foundation design, ask Accuway for a confirmed weight.
Z rapid traverse is 15 m/min (591 in/min). The spindle has 30/37 kW (40.2/49.6 hp) through a 2-step gearbox and is offered in four sizes, from an A2-11 nose with a 131 mm (5.2 in) bore and 2,000 rpm to an A2-15 nose with a 258 mm (10.2 in) bore, a 24 in chuck and 800 rpm. Twelve BOT stations hold 32 mm (1.3 in) square and 50 mm (2.0 in) round tools. The APT 60 power turret and a steady rest are optional accessories.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 900 mm (35.4 in) |
| Swing Over Saddle | 745 mm (29.3 in) |
| Max Turning Diameter | 700 mm (27.6 in) |
| Max Turning Length | 2,080 mm (81.9 in) |
| Guideway Type | Box |
| Spindle Nose | A2-11 / A2-15 / A2-15 / A2-15 |
| Chuck Size | 15 / 20 / 20 / 24 in |
| Spindle Bore | 131 / 205 / 235 / 258 mm (5.2 / 8.1 / 9.3 / 10.2 in) |
| Max Spindle Speed | 2,000 / 1,500 / 850 / 800 rpm |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45 kW (49.6/60.3 hp) + 2-step gearbox |
| X Axis Travel | 380 mm (15.0 in) |
| Z Axis Travel | 2,200 mm (86.6 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 15 m/min (591 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 2,050 mm (80.7 in) |
| Tailstock Quill Travel | 150 mm (5.9 in) |
| Tailstock Quill Diameter | 160 mm (6.3 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 6.9 x 2.8 x 2.7 m (271.7 x 110.2 x 106.3 in) |
| Machine Weight | 17,500 kg (38,580 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,080 mm (81.9 in) turning length at 700 mm (27.6 in) diameter
- Four spindle sizes up to a 258 mm (10.2 in) bore with a 24 in chuck
- 160 mm (6.3 in) tailstock quill with 2,050 mm (80.7 in) of body travel
- 30/37 kW (40.2/49.6 hp) through a 2-step gearbox
- 745 mm (29.3 in) swing over saddle
Limitations
- Z rapid traverse of 15 m/min (591 in/min)
- Listed weight of 17,500 kg (38,580 lb) should be confirmed with the maker
- Footprint of 6.9 x 2.8 x 2.7 m (271.7 x 110.2 x 106.3 in)
- Power turret and steady rest are options
Best For
Frequently Asked Questions
01
Maximum turning diameter is 700 mm (27.6 in) and maximum turning length 2,080 mm (81.9 in). Swing over bed is 900 mm (35.4 in), swing over saddle 745 mm (29.3 in), X travel 380 mm (15.0 in) and Z travel 2,200 mm (86.6 in).
02
15 in on the A2-11 nose, and 20 in, 20 in or 24 in on the A2-15 nose. The matching spindle hole diameters are 131 mm (5.2 in), 205 mm (8.1 in), 235 mm (9.3 in) and 258 mm (10.2 in).
03
The UT-400L has 1,500 mm (59.1 in) of Z travel, a Z rapid of 24 m/min (945 in/min) and weighs 14,000 kg (30,864 lb). The UT-400LX2 has 2,200 mm (86.6 in), 15 m/min (591 in/min) and a listed weight of 17,500 kg (38,580 lb).
04
Its table has no rotary tool rows. The optional accessories list an APT 60 power turret + CS contouring control and an APT 60 power turret + CF Axis Control. For a Y axis, Accuway lists the UT-400LX3Y and UT-400LX4Y.
