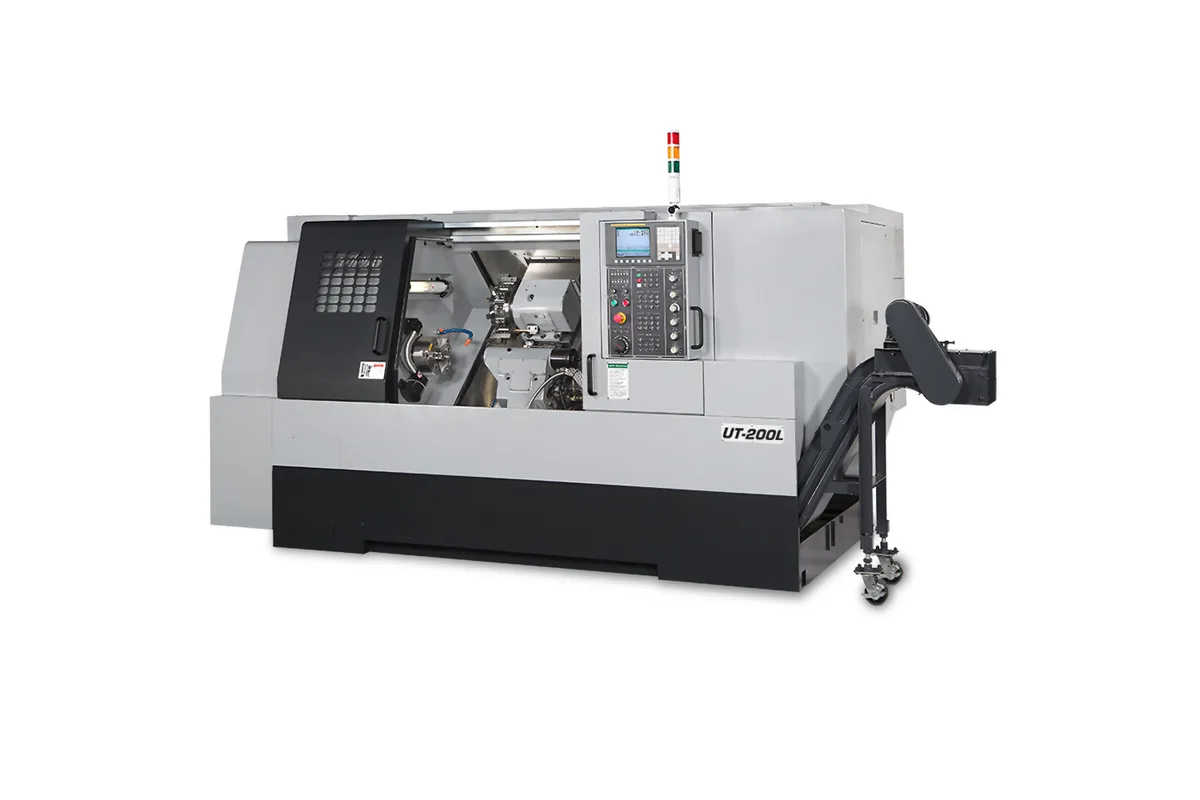

Accuway UT-200L
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-200L cost?
Price estimate
We do not have a price for the Accuway UT-200L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The long-bed Accuway UT-200L turns shafts up to 1,000 mm (39.4 in) between chuck and tailstock. Z-axis travel is 1,050 mm (41.3 in) and the tailstock body travels 1,045 mm (41.1 in), so the centre can follow a workpiece of almost any length the bed allows.
In section it is the UT-200. Swing over bed is 505 mm (19.9 in), swing over saddle 318 mm (12.5 in), maximum turning diameter 300 mm (11.8 in) and X travel 220 mm (8.7 in), on box guideways. The extra bed adds weight and floor length: 4,700 kg (10,362 lb) and 3.7 m, against 3,600 kg (7,937 lb) for the UT-200.
Slender shafts are the usual work for a bed this long, and the tailstock figures matter for them. The quill is 75 mm (3.0 in) in diameter with an MT#4 taper and 80 mm (3.1 in) of travel. No steady rest appears in the options list for this model, so very thin shafts need their support discussed with Accuway.
The spindle is offered in four columns, from an A2-5 nose at 6,000 rpm with a 6 in chuck to an A2-8 nose at 3,500 rpm with a 10 in chuck and 75 mm (3.0 in) of bar capacity. In that last column the turning length is 920 mm (36.2 in). Power is 11/15 kW (14.8/20.1 hp). The BOT turret has 8, 10 or 12 stations according to the column. For rotary tools on this bed, see the UT-200LM.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 505 mm (19.9 in) |
| Swing Over Saddle | 318 mm (12.5 in) |
| Max Turning Diameter | 300 mm (11.8 in) |
| Max Turning Length | 1,000 / 1,000 / 1,000 / 920 mm (39.4 / 39.4 / 39.4 / 36.2 in) |
| Guideway Type | Box |
| Spindle Nose | A2-5 / A2-6 / A2-6 / A2-8 |
| Chuck Size | 6 / 8 / 8 / 10 in |
| Bar Capacity | 44 / 52 / 65 / 75 mm (1.7 / 2.0 / 2.6 / 3.0 in) |
| Max Spindle Speed | 6,000 / 4,500 / 4,000 / 3,500 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp) |
| X Axis Travel | 220 mm (8.7 in) |
| Z Axis Travel | 1,050 mm (41.3 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 8 / 10 / 10 / 12 |
| Square Tool Shank | 25 / 25 / 25 / 20 mm (1.0 / 1.0 / 1.0 / 0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Tailstock Body Travel | 1,045 mm (41.1 in) |
| Tailstock Quill Travel | 80 mm (3.1 in) |
| Tailstock Quill Diameter | 75 mm (3.0 in) |
| Tailstock Quill Taper | MT#4 |
| Machine Dimensions | L x W x H: 3.7 x 1.6 x 1.8 m (145.7 x 63.0 x 70.9 in) |
| Machine Weight | 4,700 kg (10,362 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,000 mm (39.4 in) maximum turning length on a 1,050 mm (41.3 in) Z travel
- Tailstock body travel of 1,045 mm (41.1 in)
- Four spindle configurations with bar capacity from 44 mm (1.7 in) to 75 mm (3.0 in)
- Box guideways and 20 m/min (787 in/min) rapids
Limitations
- 300 mm (11.8 in) turning diameter is modest for the bed length
- No steady rest in the published options list
- 2-axis only, with a BOT turret and no rotary tools
- 3.7 m long and 4,700 kg (10,362 lb)
Best For
Frequently Asked Questions
01
Z-axis travel is 1,050 mm (41.3 in) and maximum turning length is 1,000 mm (39.4 in), or 920 mm (36.2 in) with the A2-8 spindle. The machine is 3.7 x 1.6 x 1.8 m (145.7 x 63.0 x 70.9 in).
02
Body travel is 1,045 mm (41.1 in). The quill is 75 mm (3.0 in) in diameter with 80 mm (3.1 in) of travel and an MT#4 taper. Those quill figures are the same as on the short-bed UT-200.
03
A2-5 with a 6 in chuck, A2-6 with an 8 in chuck in two bar sizes, and A2-8 with a 10 in chuck. Bar capacities are 44, 52, 65 and 75 mm, and speeds 6,000, 4,500, 4,000 and 3,500 rpm. Motor power is 11/15 kW (14.8/20.1 hp), with 15/18.5 kW in brackets.
04
Yes. The UT-200LM, on the same page, lists rotary tools at 6,000 rpm and a 12-station BMT/VDI turret, with a maximum turning diameter of 260 mm (10.2 in) and a turning length of 900 mm (35.4 in).
