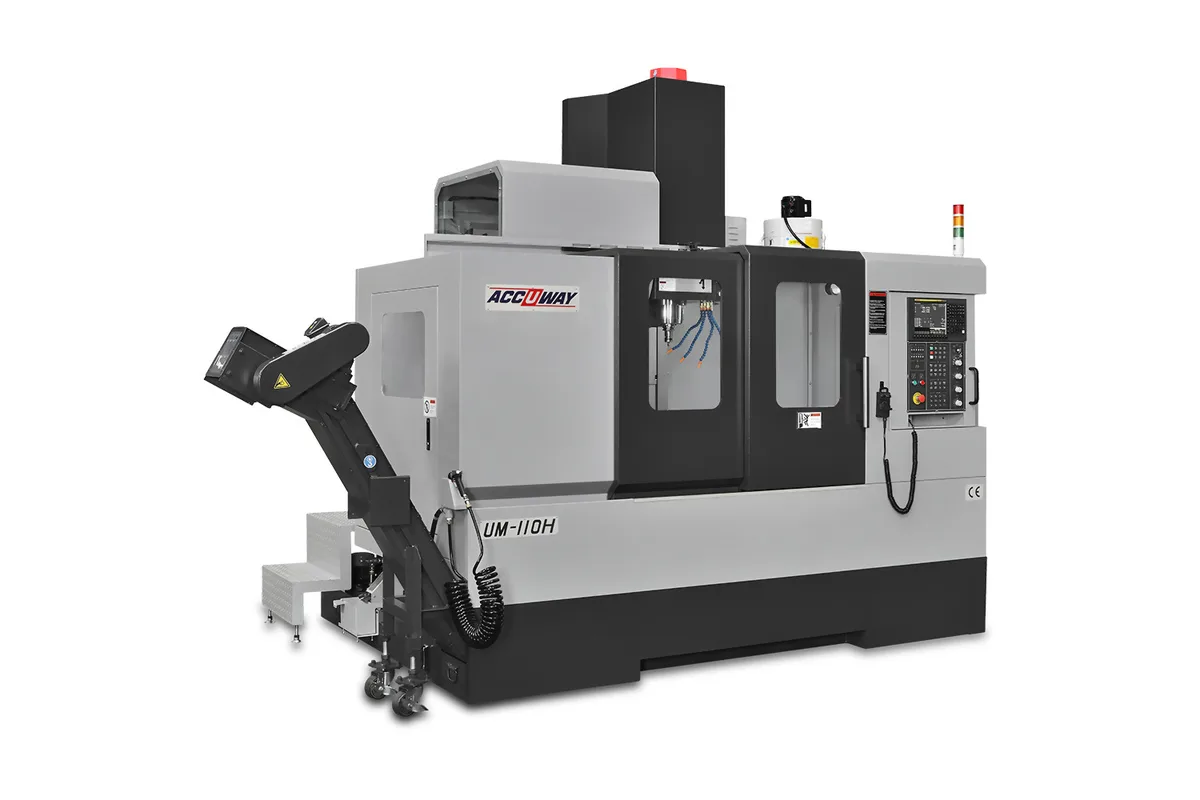

Accuway UM-110H
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-110H cost?
Price estimate
We do not have a price for the Accuway UM-110H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Roller guideways, a direct-drive spindle and 42 m/min (1,654 in/min) rapids in X and Y define the Accuway UM-110H, the high-speed counterpart of the UM-110. Travels are 1,100 mm (43.3 in), 550 mm (21.7 in) and 550 mm (21.7 in), and the 1,200 x 600 mm (47.2 x 23.6 in) table carries 1,200 kg (2,646 lb).
On a machine with this much X, rapid rate counts for more than on a short one. Traversing the full 1,100 mm between a row of fixtures happens many times per cycle, and Accuway lists Z at 36 m/min (1,417 in/min) as well, so tool changes and retracts are quicker too. The cutting feed rate, 12 m/min (472 in/min), is no higher than on the standard machine.
Spindle speed is 12,000 rpm with 15,000 rpm in brackets, on a BT40 nose with a 70 mm (2.8 in) bearing inner diameter. Power is 7.5/11 kW (10.1/14.8 hp) continuous and 30 min; the bracketed alternative is 15/18.5 kW (20.1/24.8 hp). With the smaller motor, the high speed serves light cuts in aluminium and finishing in steel more than heavy roughing.
As on the UM-85H, the options include Z-axis travel 740mm, a Heidenhain linear scale, a workpiece touch probe and 20 bar coolant through the spindle. Weight is 7,500 kg (16,534 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 12,000 (15,000) rpm |
| Spindle Taper | BT40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Drive | Direct |
| X Axis Travel | 1,100 mm (43.3 in) |
| Y Axis Travel | 550 mm (21.7 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| Distance Spindle Nose to Table | 150~700 mm (5.9~27.6 in) |
| Table Size | 1,200 x 600 mm (47.2 x 23.6 in) |
| T-Slots | No. of T-slot x width x pitch: 5 x 18 x 100 mm |
| Max Table Load | 1,200 kg (2,646 lb) |
| Rapid Traverse X | 42 m/min (1,654 in/min) |
| Rapid Traverse Y | 42 m/min (1,654 in/min) |
| Rapid Traverse Z | 36 m/min (1,417 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Roller |
| Tool Capacity | 24 (30/32) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | 75 mm (3.0 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC 1 (AICC II) |
| Spindle Motor Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp), in brackets 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 3/3/4 kW (4.0/4.0/5.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 3 x 2.2 x 3 m (118.1 x 86.6 x 118.1 in) |
| Machine Weight | 7,500 kg (16,534 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 42 m/min (1,654 in/min) rapids in X and Y across 1,100 mm (43.3 in) of X travel
- Direct-drive spindle listed at 12,000 rpm, with 15,000 rpm in brackets
- Roller guideway bearings in the standard specification
- 1,200 kg (2,646 lb) table load, the same as the belt-drive UM-110
- Options include Z-axis travel 740mm and a linear scale
Limitations
- 7.5/11 kW (10.1/14.8 hp) standard motor is modest for 12,000 rpm roughing
- Y travel of 550 mm (21.7 in) is narrow for the X length
- Tool diameter is limited to 75 mm (3.0 in) with adjacent pockets occupied
- Coolant through spindle is an option at 20 bar, not standard
Best For
Frequently Asked Questions
01
Rapid traverse is 42 m/min (1,654 in/min) in X and Y and 36 m/min (1,417 in/min) in Z, with a cutting feed rate of 12 m/min (472 in/min). The spindle is listed at 12,000 rpm, and 15,000 rpm is printed in brackets with spindle speed upgrading on the options list.
02
No. Both list 7,500 kg (16,534 lb) net weight and 3 x 2.2 x 3 m as machine dimensions, with the same 1,200 x 600 mm table and 1,200 kg load. The UM-110 differs in its belt drive at 10,000 rpm, ball guideways and 30 m/min (1,181 in/min) rapids.
03
An arm type changer. Magazine capacity is listed as 24, with 30/32 bracketed. Tools may be 300 mm (11.8 in) long and 7 kg (15 lb), with a diameter of 75 mm (3.0 in), or 150 mm (5.9 in) without adjacent tools.
04
Ball screw diameter is 45/45/45 mm (1.8/1.8/1.8 in) for X/Y/Z, and the X/Y/Z feed motor row reads 3/3/4 kW. The guideway bearing type is Roller. The air supply requirement is 5.5 kg/cm².
