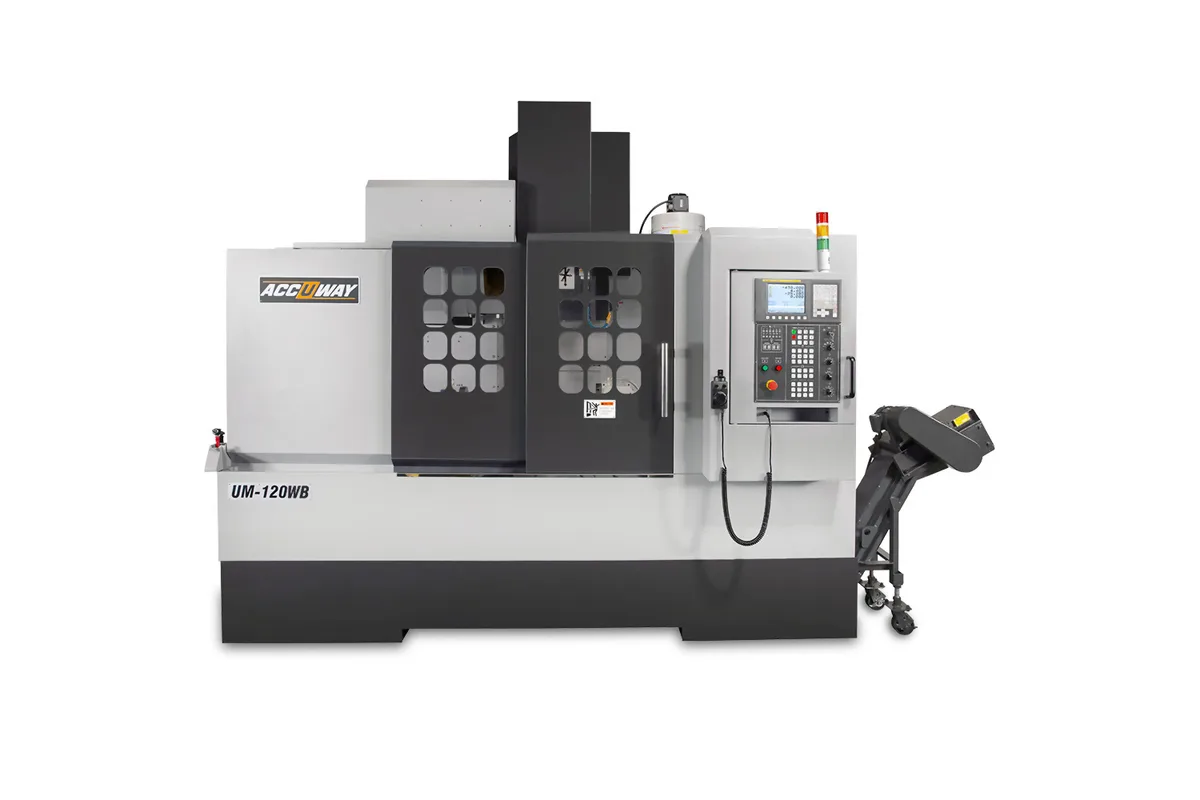

Accuway UM-120WB
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-120WB cost?
Price estimate
We do not have a price for the Accuway UM-120WB that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Box ways and a BT50 spindle make the Accuway UM-120WB the heavy-cut member of the 1,200 mm class. The guideway bearing type row reads Box, rapid traverse is 24 m/min (945 in/min) on X, Y and Z, and the spindle is the 6,000 rpm, 15/18.5 kW (20.1/24.8 hp) unit with a 90 mm (3.5 in) bearing inner diameter.
The two letters each name one choice. W is the 50-taper head shared with the UM-120W. B is the box-way base, as on the BT40 UM-120B. Here both come together, which is the combination that a shop roughing steel plate or cast iron usually asks for: a taper that holds a large cutter and ways that damp the cut.
Travels are 1,200 mm (47.2 in), 650 mm (25.6 in) and 600 mm (23.6 in). The table is 1,300 x 650 mm (51.2 x 25.6 in), so it extends beyond the X stroke and leaves room for clamps at the ends. T-slots are 18 mm on a 120 mm pitch, five of them, and the load limit is 1,200 kg (2,646 lb). Spindle nose to table is 150~750 mm (5.9~29.5 in).
The drive is belt as listed, with a 2-step gear box among the options. For the lowest speeds and the largest drills that option matters more on this machine than on any roller-guide sibling. Tools may weigh 15 kg (33 lb). Net weight is 8,000 kg (17,637 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 6,000 rpm |
| Spindle Taper | BT50 |
| Spindle Bearing Inner Diameter | 90 mm (3.5 in) |
| Spindle Drive | Belt |
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Distance Spindle Nose to Table | 150~750 mm (5.9~29.5 in) |
| Table Size | 1,300 x 650 mm (51.2 x 25.6 in) |
| T-Slots | No. of T-slot x width x pitch: 5 x 18 x 120 mm |
| Max Table Load | 1,200 kg (2,646 lb) |
| Rapid Traverse X | 24 m/min (945 in/min) |
| Rapid Traverse Y | 24 m/min (945 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Box |
| Tool Capacity | 24 (32) |
| Max Tool Weight | 15 kg (33 lb) |
| Max Tool Diameter (full magazine) | 105 mm (4.1 in) |
| Max Tool Diameter Without Adjacent Tools | 210 mm (8.3 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 3/3/7 kW (4.0/4.0/9.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 3.3 x 2.7 x 3.0 m (129.9 x 106.3 x 118.1 in) |
| Machine Weight | 8,000 kg (17,637 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Box guideways combined with a BT50 spindle
- 15/18.5 kW (20.1/24.8 hp) motor and a 90 mm (3.5 in) spindle bearing
- 1,300 x 650 mm (51.2 x 25.6 in) table, longer than the 1,200 mm X travel
- Optional 2-step gear box for low-speed torque
- Tools up to 15 kg (33 lb) and 105 mm (4.1 in) in diameter with a full magazine
Limitations
- 24 m/min (945 in/min) rapids, slower than the 30 m/min (1,181 in/min) of the UM-120W
- Top spindle speed is 6,000 rpm on the standard belt drive
- Table load is 1,200 kg (2,646 lb)
- Gear box is not standard on this size
Best For
Frequently Asked Questions
01
The guideways and what follows from them. The UM-120W lists Roller guideway bearings and 30 m/min (1,181 in/min) rapids with a 1,200 x 650 mm table. The UM-120WB lists Box, 24 m/min (945 in/min) and a 1,300 x 650 mm (51.2 x 25.6 in) table. Spindle, travels and weight are the same.
02
A belt-driven BT50 spindle at 6,000 rpm with a 15/18.5 kW (20.1/24.8 hp) motor, continuous and 30 min ratings, and a 90 mm (3.5 in) bearing inner diameter. Spindle oil cooling is standard. A 2-step gear box is an optional accessory.
03
The magazine row reads 24 (32), with an arm type exchange. Each tool can be up to 300 mm (11.8 in) long and 15 kg (33 lb), and 210 mm (8.3 in) in diameter if the adjacent pockets are empty.
04
A FANUC 0i-M. The standard accessories list gives the controller with AICC II, although the AI contour control row of the table prints AICC I. An RJ-45 interface, rigid tapping and a 10.4" colored LCD monitor are also standard.
