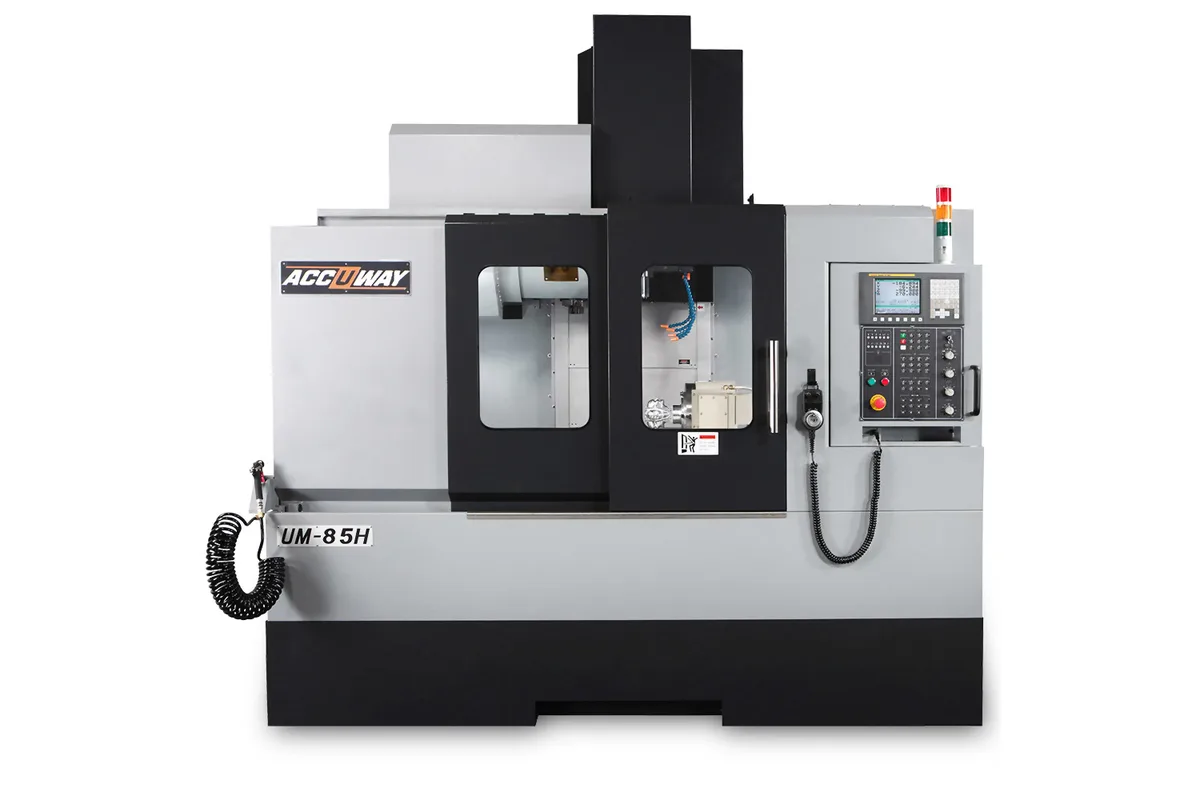

Accuway UM-85H
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-85H cost?
Price estimate
We do not have a price for the Accuway UM-85H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The H in Accuway UM-85H stands for the faster of two versions of the 850 mm frame. Its BT40 spindle is listed as direct drive at 12,000 rpm, the linear guideways use roller bearings, and rapid traverse is 42 m/min (1,654 in/min) in X and Y and 36 m/min (1,417 in/min) in Z.
Set those against the UM-85, which lists a belt drive at 10,000 rpm, ball guideways and 30 m/min (1,181 in/min) on every axis. The envelope does not change: 850 mm (33.5 in) of X, 550 mm (21.7 in) of Y and 550 mm (21.7 in) of Z over a 1,100 x 600 mm (43.3 x 23.6 in) table that carries 1,000 kg (2,205 lb). Weight is the same 7,000 kg (15,432 lb), so the gain is in the drive train, not the casting.
A direct-drive spindle has no belt to slip or stretch and suits finishing passes and small cutters at the top of the speed range. Accuway brackets 15,000 rpm next to the 12,000 rpm figure and lists spindle speed upgrading as an option. Motor power reads 7.5/11 kW (10.1/14.8 hp), with 15/18.5 kW (20.1/24.8 hp) in brackets.
The options list has one entry the other UM pages lack: Z-axis travel 740mm. For tall parts on a 4th axis, that is worth asking about. Cutting feed rate is 12 m/min (472 in/min), and the 24-tool arm changer (30/32 bracketed) takes tools to 300 mm (11.8 in) long.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 12,000 (15,000) rpm |
| Spindle Taper | BT40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Drive | Direct |
| X Axis Travel | 850 mm (33.5 in) |
| Y Axis Travel | 550 mm (21.7 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| Distance Spindle Nose to Table | 150~700 mm (5.9~27.6 in) |
| Table Size | 1,100 x 600 mm (43.3 x 23.6 in) |
| T-Slots | No. of T-slot x width x pitch: 5 x 18 x 100 mm |
| Max Table Load | 1,000 kg (2,205 lb) |
| Rapid Traverse X | 42 m/min (1,654 in/min) |
| Rapid Traverse Y | 42 m/min (1,654 in/min) |
| Rapid Traverse Z | 36 m/min (1,417 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Roller |
| Tool Capacity | 24 (30/32) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | 75 mm (3.0 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I (AICC II) |
| Spindle Motor Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp), in brackets 15/18.5 kW (20.1/24.8 hp) |
| Feed Motor Xyz | X/Y/Z: 3/3/4 kW (4.0/4.0/5.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 2.7 x 2.2 x 3 m (106.3 x 86.6 x 118.1 in) |
| Machine Weight | 7,000 kg (15,432 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Direct-drive BT40 spindle at 12,000 rpm, with 15,000 rpm printed in brackets
- Rapid traverse of 42 m/min (1,654 in/min) in X and Y and 36 m/min (1,417 in/min) in Z
- Roller-type guideway bearings as listed in the table
- A Z-axis travel of 740mm appears on the optional accessories list
- FANUC 0i-M controller with AICC II is a standard accessory
Limitations
- Base spindle motor is 7.5/11 kW (10.1/14.8 hp); the 15/18.5 kW figure is bracketed
- Cutting feed rate is 12 m/min (472 in/min), the same as the slower UM-85
- Table load of 1,000 kg (2,205 lb) is unchanged from the UM-85
- 20 bar coolant through spindle and linear scales are optional
Best For
Frequently Asked Questions
01
Three rows of the table. Drive system is Direct instead of Belt (Direct), spindle speed is 12,000 rpm instead of the UM-85's 10,000 rpm, and guideway bearing type is Roller instead of Ball. Rapids rise to 42 m/min (1,654 in/min) in X and Y and 36 m/min (1,417 in/min) in Z. Travels and table are identical.
02
The optional accessories list on Accuway's page includes the entry Z-axis travel 740mm. The standard table gives 550 mm (21.7 in) of Z and 150~700 mm (5.9~27.6 in) from spindle nose to table. The page gives no further detail on the option.
03
The motor row reads 7.5/11 kW (10.1/14.8 hp) continuous and 30 min, followed by 15/18.5 kW (20.1/24.8 hp) in brackets. The spindle bearing inner diameter is 70 mm (2.8 in), and a spindle oil cooling system is standard.
04
Machine dimensions are 2.7 x 2.2 x 3 m (106.3 x 86.6 x 118.1 in), length by width by height, and net weight is 7,000 kg (15,432 lb). The air supply requirement is listed as 5.5 kg/cm².
