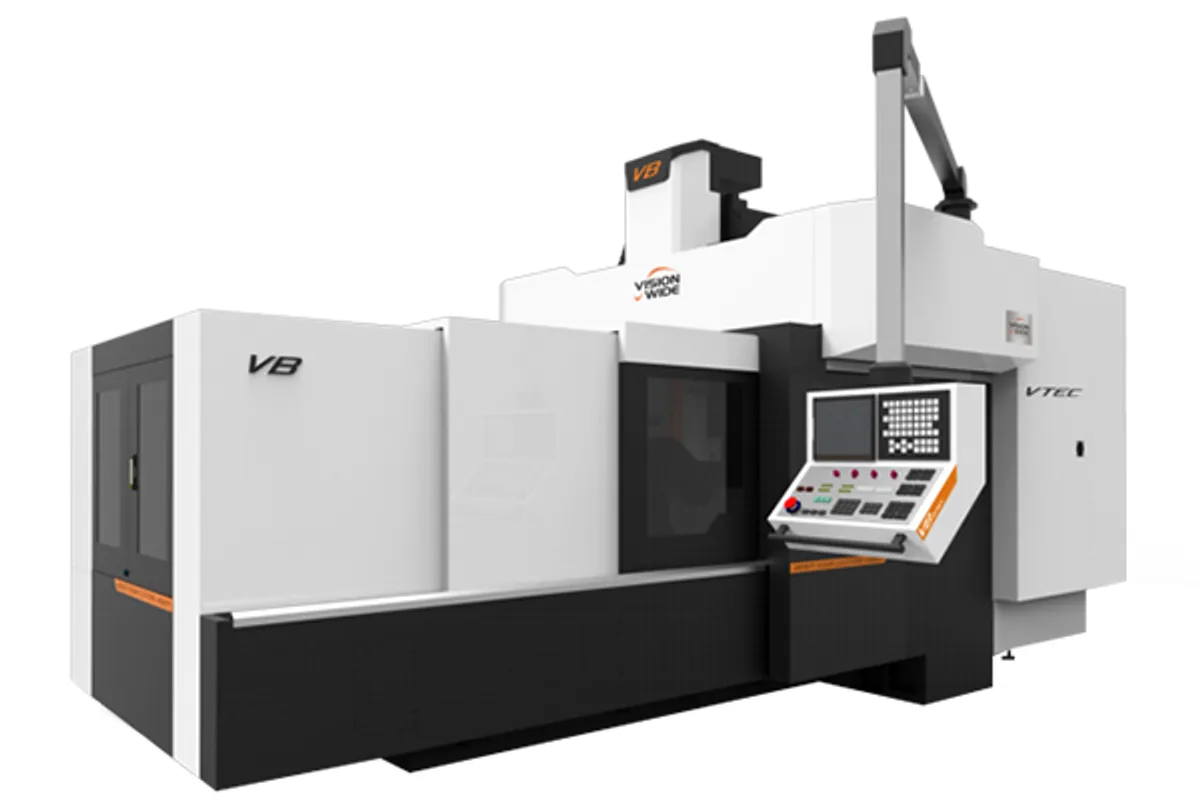

Vision Wide VB-4020
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide VB-4020 cost?
Price estimate
We do not have a price for the Vision Wide VB-4020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The longest VB is the Vision Wide VB-4020: 4,100 mm (161.4 in) of X travel, 2,000 mm (78.7 in) of Y, and a 4,100×1,700 mm (161.4×66.9 in) table that takes 12,000 kg (26,455 lb).
It is the one model in the series long enough for the X-axis ball screw supporter, which the standard list applies to X travels above 4m. With a ball screw cooling system also standard, the long screw is both held straight and kept at temperature, the two things that decide whether a four-metre axis positions consistently through a shift.
One item on this page needs a question to the maker. The specification table gives tool capacity as 32/40 pcs(OPT.), which reads as 32 standard and 40 optional. The accessory lists give a 40 tools magazine with arm type ATC as standard and a 60 tools magazine as the option. Both cannot be right, so have the magazine size written into the quotation.
Performance is that of the larger VB frame: 12 m/min rapids in X and Y, 15 m/min in Z, cutting feed of 1-7,000 mm/min. The motor is 18.5/22 kW (24.8/29.5 hp) with two larger options, and the gear spindle runs 4,000 rpm or 6,000 rpm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT..) |
| Table Size | 4,100×1,700 mm (161.4×66.9 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y：12 m/min，Z：15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,100 mm (161.4 in) of X travel on box ways
- 12,000 kg (26,455 lb) table load
- X-axis ball screw supporter and ball screw cooling system
- 4,100×1,700 mm (161.4×66.9 in) table matching the X travel
Limitations
- The table and the accessory lists disagree on the tool magazine sizes
- X and Y rapids of 12 m/min
- Y travel is limited to 2,000 mm (78.7 in)
Best For
Frequently Asked Questions
01
The VB-4020, with 4,100 mm (161.4 in) of X travel, 2,000 mm (78.7 in) of Y and a 4,100×1,700 mm (161.4×66.9 in) table rated for 12,000 kg (26,455 lb).
02
The page is inconsistent. The table lists 32/40 pcs(OPT.), while the accessory lists name a 40 tools magazine with arm type ATC as standard and a 60 tools magazine as an option. Confirm with Vision Wide.
03
Yes. The X-axis ball screw supporter is standard for X travels above 4m, and this model has 4,100 mm (161.4 in). A ball screw cooling system is standard on the whole series.
04
Rapid traverse is 12 m/min in X and Y and 15 m/min in Z. The cutting feed range is 1-7,000 mm/min, the same as on every VB model.
