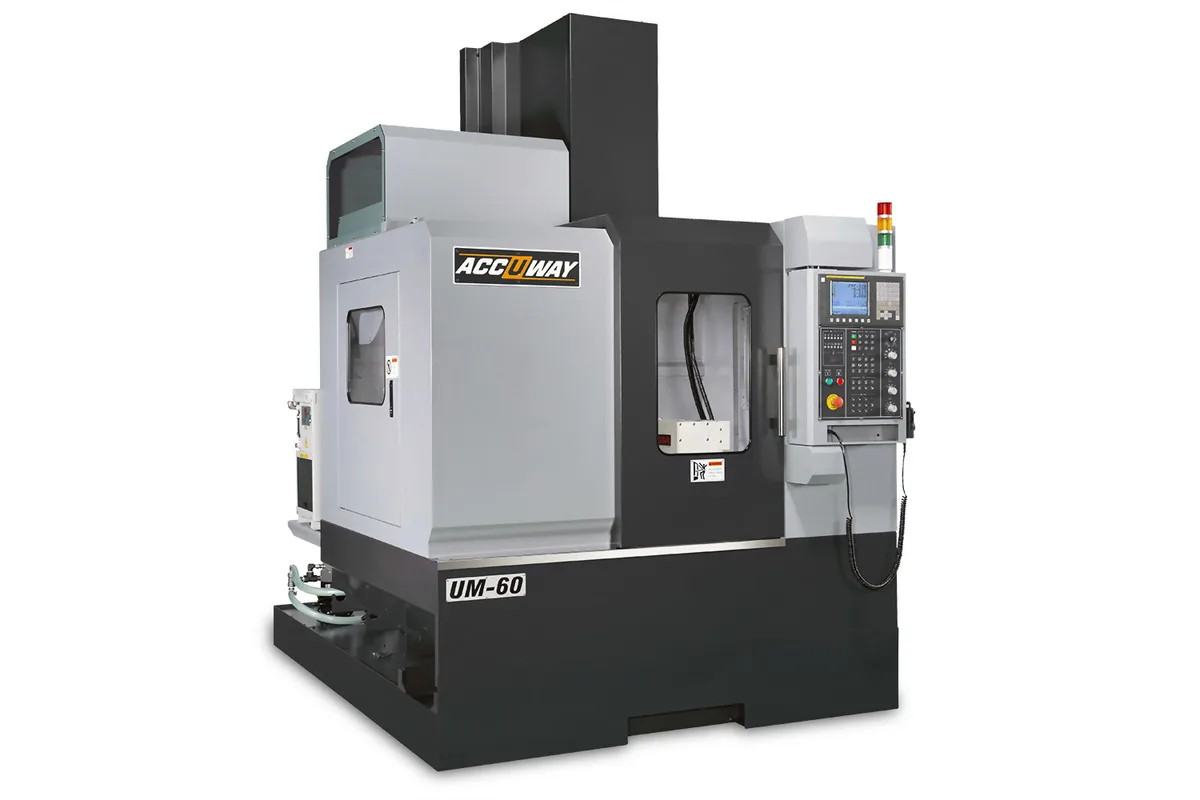

Accuway UM-60
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-60 cost?
Price estimate
We do not have a price for the Accuway UM-60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UM-60 is the smallest of the maker's BT40 vertical machining centers: 600 mm (23.6 in) of X travel, 520 mm (20.5 in) of Y and 540 mm (21.3 in) of Z over a 750 x 560 mm (29.5 x 22.0 in) table. The control is a FANUC 0i-M, and the standard accessories list pairs it with AICC II.
Table load is 750 kg (1,653 lb). That is generous for a table this size, so a pair of vises or a 4th axis rotary table (an optional accessory, as is its interface) still leaves capacity for the part. The spindle nose sits 150~690 mm (5.9~27.2 in) above the table, which matters once a rotary table and a tall fixture are stacked under it.
The spindle runs to 10,000 rpm on a 7.5/11 kW (10.1/14.8 hp) motor, continuous and 30 min ratings. Accuway prints 12,000 rpm in brackets beside the speed and lists spindle speed upgrading as an option; the drive row reads Belt (Direct). Unlike the UM-85, this table shows no bracketed motor alternative, so 11 kW is the ceiling on paper.
X and Y rapids are 36 m/min (1,417 in/min), with Z at 30 m/min (1,181 in/min). Ball screws are 40/40/40 mm (1.6/1.6/1.6 in) on ball-type guideways, and roller type guide way is an option. The arm type changer holds 24 tools up to 75 mm (3.0 in) in diameter, 300 mm (11.8 in) long and 7 kg (15 lb). The machine weighs 5,000 kg (11,023 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 10,000 (12,000) rpm |
| Spindle Taper | BT40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Drive | Belt (Direct) |
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 520 mm (20.5 in) |
| Z Axis Travel | 540 mm (21.3 in) |
| Distance Spindle Nose to Table | 150~690 mm (5.9~27.2 in) |
| Table Size | 750 x 560 mm (29.5 x 22.0 in) |
| T-Slots | No. of T-slot x width x pitch: 5 x 18 x 100 mm |
| Max Table Load | 750 kg (1,653 lb) |
| Rapid Traverse X | 36 m/min (1,417 in/min) |
| Rapid Traverse Y | 36 m/min (1,417 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 40/40/40 mm (1.6/1.6/1.6 in) |
| Guideway Bearing Type | Ball |
| Tool Capacity | 24 |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | 75 mm (3.0 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Ai Contour Control | AICC I (AICC II) |
| Spindle Motor Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp) |
| Feed Motor Xyz | X/Y/Z: 3/3/4 kW (4.0/4.0/5.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 2 x 2.6 x 2.8 m (78.7 x 102.4 x 110.2 in) |
| Machine Weight | 5,000 kg (11,023 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 36 m/min (1,417 in/min) rapids on X and Y, with 30 m/min (1,181 in/min) on Z
- 750 kg (1,653 lb) table load on a 750 x 560 mm (29.5 x 22.0 in) table
- Rigid tapping, spindle oil cooling system, cutter air blast and a 4-bar coolant system are standard accessories
- Compact for a BT40 machine: 2 x 2.6 x 2.8 m (78.7 x 102.4 x 110.2 in) and 5,000 kg (11,023 lb)
Limitations
- 600 mm (23.6 in) of X travel is the shortest in the UM range
- Spindle motor is 7.5/11 kW (10.1/14.8 hp) with no bracketed higher rating in the table
- The magazine row shows 24 tools only, without the larger capacities printed for the UM-85
- Chain type chip conveyor, 20 bar coolant through spindle and the tool setter are optional accessories
Best For
Frequently Asked Questions
01
X is 600 mm (23.6 in), Y is 520 mm (20.5 in) and Z is 540 mm (21.3 in). The table measures 750 x 560 mm (29.5 x 22.0 in), carries 750 kg (1,653 lb) and has 5 T-slots, 18 mm wide on a 100 mm pitch.
02
A BT40 spindle listed at 10,000 rpm, with 12,000 rpm printed in brackets and spindle speed upgrading among the options. The motor is rated 7.5/11 kW (10.1/14.8 hp), continuous and 30 min. The bearing inner diameter is 70 mm (2.8 in) and a spindle oil cooling system is standard.
03
Only in X and what follows from it. The UM-75 has 750 mm (29.5 in) of X travel and a 900 x 560 mm (35.4 x 22.0 in) table, against 600 mm and 750 x 560 mm here. Y, Z, the spindle, the rapids and the 750 kg table load are the same on both.
04
A FANUC 0i-M controller with AICC II, an RJ-45 interface, rigid tapping, a 10.4" colored LCD monitor, cutter air blast, a spray gun and a three-color warning light are all on the standard list. A data server, linear scales, a workpiece touch probe and a contact tool setter are options.
