GF Machining Solutions Mikron MILL S 500 Graphite
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The GF Machining Solutions Mikron MILL S 500 Graphite is the larger of GF's two dedicated graphite milling machines, offering a 500 x 400 x 400 mm (19.7 x 15.7 x 15.7 in) work envelope that accommodates the full range of electrode formats used in production die-sinking EDM operations — from small precision features through large automotive injection mold cavity electrodes.
The MILL S 500 Graphite shares the core architecture of the MILL S 400 Graphite: Step-Tec precision spindle, purpose-built graphite dust management, fully sealed machine internals, dry machining design, and Heidenhain TNC 640 control. The expansion in X travel from 400 mm to 500 mm and the increase in table load capacity from 250 kg (551 lb) to 300 kg (661 lb) enable electrode production for larger mold cavities without requiring a second machine or a general-purpose VMC backup for oversize electrodes.
The Step-Tec spindle runs at 42,000 RPM with 13 kW (17 hp) through an HSK-E32 taper — identical to the MILL S 400 Graphite's spindle. The additional X travel does not change the spindle specification because graphite cutting is driven by surface speed and tool diameter, not part size. Both machines produce equivalent electrode surface finishes; the 500 simply handles larger electrode blanks and heavier tombstone fixtures.
The integrated dust management system on the MILL S 500 Graphite scales proportionally to the larger work zone: higher extraction flow rate, larger HEPA filter cartridge capacity, and extended filter service intervals compared to the 400 model. The sealed linear guides, ballscrews, and drive systems remain the same specification — graphite contamination protection is not compromised on the larger machine.
For mold shops running a range of die-sinking EDM machines from small precision units to large automotive cavity sinkers, the MILL S 500 Graphite provides a single electrode machining solution that handles every electrode in the shop's production mix without trade-offs. Pricing runs from approximately $280,000 to $450,000 configured.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 500 mm (19.7 in) |
| Y-Axis Travel | 400 mm (15.7 in) |
| Z-Axis Travel | 400 mm (15.7 in) |
| Table Size | 600 x 500 mm (23.6 x 19.7 in) |
| Table Load Capacity | 300 kg (661 lb) |
| Max Spindle Speed | 42,000 RPM |
| Spindle Taper | HSK-E32 |
| Spindle Motor Power | 13 kW (17 hp) |
| Spindle Technology | Step-Tec precision spindle |
| Machining Type | Dry (graphite) — no coolant |
| Dust Extraction | Integrated HEPA-grade closed-loop system (high-flow) |
| Sealed System | Linear guides, ballscrews, drives, and electrical cabinet fully sealed |
| Tool Capacity | 20 (expandable to 40) |
| Rapid Traverse Rate | 60 m/min (2,362 ipm) |
| Positioning Accuracy | 0.003 mm (3 µm) |
| Machine Weight | 8,500 kg (18,739 lb) |
| CNC Control | Heidenhain TNC 640 |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 500 mm X travel covers the full electrode size range for production automotive, aerospace, and large injection mold EDM work — the MILL S 400 Graphite cannot handle these larger electrodes
- 300 kg table load capacity supports heavy electrode tombstones and multi-electrode fixture plates that batch multiple electrodes per setup, improving throughput in high-volume electrode production
- 42,000 RPM Step-Tec spindle delivers the same mirror-surface electrode finish capability as the MILL S 400 Graphite across the full size range of electrodes the larger machine can accommodate
- Purpose-built sealed architecture protects machine longevity — shops that have previously worn out general-purpose VMCs with graphite report significantly lower maintenance costs on the dedicated MILL S platform
- High-flow HEPA dust extraction system scaled for the larger work zone ensures effective particle capture even during aggressive electrode roughing operations on large electrode blanks
- Same Heidenhain TNC 640 control and GF rConnect as the MILL S 400 Graphite — single-program architecture and operator training carries across both machines for shops running both models
Limitations
- Single-purpose graphite machining design requires shops to justify investment on graphite electrode production volume alone — a general-purpose VMC covers a broader workload at lower cost
- At 8,500 kg, the MILL S 500 Graphite requires a reinforced foundation area and careful shop floor placement near the EDM machines it serves
- 13 kW spindle power limits aggressive roughing of very large electrode blanks — for electrodes requiring significant material removal from large billets, cycle times can be longer than on higher-power machines
- HSK-E32 taper tooling inventory requirement adds cost for shops that do not already run small-taper high-speed spindle machines
Best For
Frequently Asked Questions
01
Choose the MILL S 500 Graphite if any of the following apply: your electrodes regularly exceed 380 mm in their longest dimension, you run large multi-cavity tombstone setups that require more than 250 kg table capacity, or you operate large die-sinking EDM machines (such as GF's AgieCharmilles FORM series in larger sizes) where electrode blanks approach or exceed the MILL S 400's envelope. If your electrode production is concentrated on small-to-medium precision work (watch components, medical devices, small injection molds), the MILL S 400 Graphite handles it at a lower purchase price.
02
Yes. The MILL S 500 Graphite's Heidenhain TNC 640 control supports standard automation interfaces, and GF offers System 3R WorkShopManager integration for pallet-based electrode blank and finished electrode management. A robot cell can load electrode blanks, manage tool changes, and unload finished electrodes for extended unattended operation. Given that graphite cutting generates no coolant management issues and the enclosed dust extraction system runs continuously, the MILL S 500 Graphite is well-suited to overnight lights-out electrode production when combined with appropriate automation.
03
All standard EDM graphite grades are compatible, including fine-grain (ISO-63, ISO-88, ISO-grade 5 equivalents), medium-grain production grades, and extruded graphite stock. The machine's sealed internals and HEPA extraction system handle the full range of graphite dust particle sizes across all commercial grades. For very fine-grain graphite (used for ultra-fine surface finish EDM on mold steel), the 42,000 RPM Step-Tec spindle and rigid HSK-E32 interface provide the surface quality needed to match the EDM finish requirements of premium graphite grades.
04
GF's MILL S Graphite series competes primarily with high-speed VMCs adapted for graphite and dedicated graphite milling machines from Yasda, Röders, and similar precision builders. Makino and Sodick both offer EDM machines with integrated electrode machining capability. The MILL S 500 Graphite differentiates on the combination of Step-Tec 42,000 RPM spindle quality, fully integrated dust management, and the GF ecosystem integration with AgieCharmilles EDM machines. For shops running GF sinker EDM (FORM series), the MILL S Graphite and AgieCharmilles EDM share System 3R tooling systems for seamless electrode-to-EDM workflow without re-referencing.
05
Primary maintenance items are the HEPA filter system (filter replacement based on usage, typically every 3-6 months in heavy graphite production), dust collection bin emptying, work zone cleaning, and standard machine tool maintenance (lubrication, periodic axis calibration, spindle inspection). The fully sealed ballscrews and linear guides require no additional graphite-specific maintenance beyond standard lubrication intervals. The Step-Tec spindle requires periodic inspection and air bearing pressure monitoring. GF recommends an annual preventive maintenance visit from a certified GF Machining Solutions service engineer.

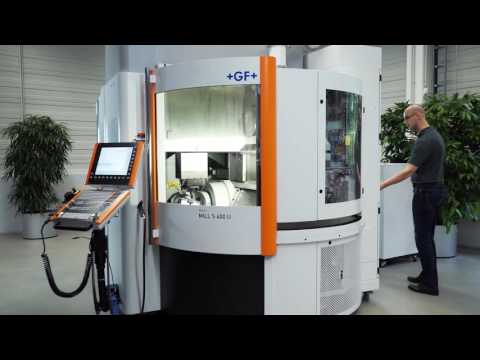

Videos
