Accuway Vertical Machining Centers (VMC)

Accuway UM-110

Q: How much does the Accuway UM-110 cost?

The price estimate for the Accuway UM-110 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-um-110#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

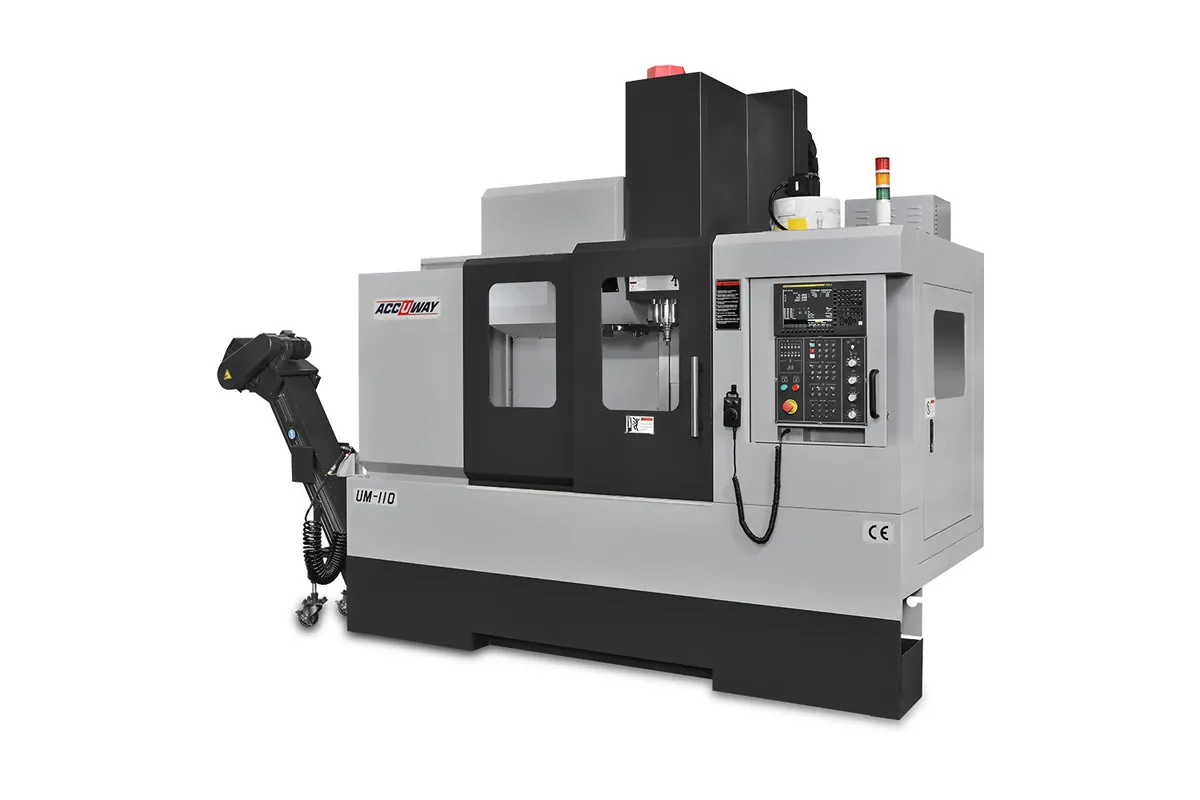

Accuway UM-110 vertical machining center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

10,000 (12,000) rpm

Spindle Taper

BT40

Tool Capacity

24 (30/32)

Table Size

1,200 x 600 mm (47.2 x 23.6 in)

Spindle Power

Cont. / 30min: 7.5/11 kW (10.1/14.8 hp), in brackets 15/18.5 kW (20.1/24.8 hp)

control

FANUC 0i-M

How much does the Accuway UM-110 cost?

Price estimate

Uncertain

We do not have a price for the Accuway UM-110 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A longer X on the 850 frame: that is the short description of the Accuway UM-110. X travel is 1,100 mm (43.3 in), while Y and Z remain 550 mm (21.7 in) each, and the table is 1,200 x 600 mm (47.2 x 23.6 in). Table load rises to 1,200 kg (2,646 lb).

The proportions decide what it is good at. A 600 mm wide table under 1,100 mm of X favours rails, manifolds and rows of small parts in a line of vises. Square plates are better served by the UM-120, whose Y travel is 650 mm (25.6 in).

Spindle and drive are the standard BT40 package of the series. 10,000 rpm is the listed speed, with 12,000 rpm in brackets and a Belt (Direct) drive row. The motor is 7.5/11 kW (10.1/14.8 hp), with 15/18.5 kW (20.1/24.8 hp) bracketed. Feed motors are 3/3/4 kW on X/Y/Z, driving 45/45/45 mm (1.8/1.8/1.8 in) ball screws on ball-bearing guideways at 30 m/min (1,181 in/min).

Net weight is 7,500 kg (16,534 lb) on a footprint of 3 x 2.2 m, and height is 3 m. The FANUC 0i-M comes with AICC II on the standard list. A small oddity: this page's AI contour control row prints AICC 1 (AICC II), where other UM pages print AICC I.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-M
Max Spindle Speed	10,000 (12,000) rpm
Spindle Taper	BT40
Spindle Bearing Inner Diameter	70 mm (2.8 in)
Spindle Drive	Belt (Direct)
X Axis Travel	1,100 mm (43.3 in)
Y Axis Travel	550 mm (21.7 in)
Z Axis Travel	550 mm (21.7 in)
Distance Spindle Nose to Table	150~700 mm (5.9~27.6 in)
Table Size	1,200 x 600 mm (47.2 x 23.6 in)
T-Slots	No. of T-slot x width x pitch: 5 x 18 x 100 mm
Max Table Load	1,200 kg (2,646 lb)
Rapid Traverse X	30 m/min (1,181 in/min)
Rapid Traverse Y	30 m/min (1,181 in/min)
Rapid Traverse Z	30 m/min (1,181 in/min)
Cutting Feed Rate	12 m/min (472 in/min)
Ball Screw Diameter Xyz	X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in)
Guideway Bearing Type	Ball
Tool Capacity	24 (30/32)
Max Tool Weight	7 kg (15 lb)
Max Tool Diameter (full magazine)	75 mm (3.0 in)
Max Tool Diameter Without Adjacent Tools	150 mm (5.9 in)
Tool Change Method	Arm type
Max Tool Length	300 mm (11.8 in)
Ai Contour Control	AICC 1 (AICC II)
Spindle Motor Power	Cont. / 30min: 7.5/11 kW (10.1/14.8 hp), in brackets 15/18.5 kW (20.1/24.8 hp)
Feed Motor Xyz	X/Y/Z: 3/3/4 kW (4.0/4.0/5.4 hp)
Coolant Pump Motor	50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp)
Air Supply	5.5 kg/cm²
Machine Dimensions	L x W x H: 3 x 2.2 x 3 m (118.1 x 86.6 x 118.1 in)
Machine Weight	7,500 kg (16,534 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

1,100 mm (43.3 in) of X travel with a 1,200 x 600 mm (47.2 x 23.6 in) table
1,200 kg (2,646 lb) table load, against 1,000 kg (2,205 lb) on the UM-85
30 m/min (1,181 in/min) rapid traverse on X, Y and Z
Arm type tool changer with 24 pockets and 30/32 printed in brackets

Limitations

Y travel is only 550 mm (21.7 in) against 1,100 mm of X
Ball-bearing guideways as listed; the roller version is the UM-110H
Standard spindle motor is 7.5/11 kW (10.1/14.8 hp)
Maximum tool weight of 7 kg (15 lb) rules out heavy face mills

Best For

Long parts such as rails, bars and manifolds up to 1,100 mm Multiple vises in a row on a 1,200 mm table General BT40 machining with loads up to 1,200 kg Shops that need more X than the UM-85 in a similar footprint

Frequently Asked Questions

01 What is the table size and load of the UM-110?

The table is 1,200 x 600 mm (47.2 x 23.6 in) with 5 T-slots of 18 mm at a 100 mm pitch, and the maximum weight on the table is 1,200 kg (2,646 lb). X, Y and Z travels are 1,100 mm, 550 mm and 550 mm.

02 Which is better for plate work, the UM-110 or the UM-120?

The UM-120 has 1,200 mm (47.2 in) of X, 650 mm (25.6 in) of Y and 600 mm (23.6 in) of Z, with a 1,200 x 650 mm table rated at 1,300 kg (2,866 lb). The UM-110 gives 550 mm of Y and Z. For wide plates the extra 100 mm of Y on the UM-120 is the deciding figure.

03 What control does the Accuway UM-110 use?

A FANUC 0i-M. The standard accessories list reads FANUC 0i-M controller + AICC II, along with an RJ-45 interface and a 10.4" colored LCD monitor. A 15" monitor and a 2G data server are optional.

04 How heavy is the UM-110 and how much room does it need?

Net weight is 7,500 kg (16,534 lb). The machine dimension row gives 3 x 2.2 x 3 m (118.1 x 86.6 x 118.1 in) as L x W x H. An optional chain type chip conveyor with chip cart adds to that footprint.
