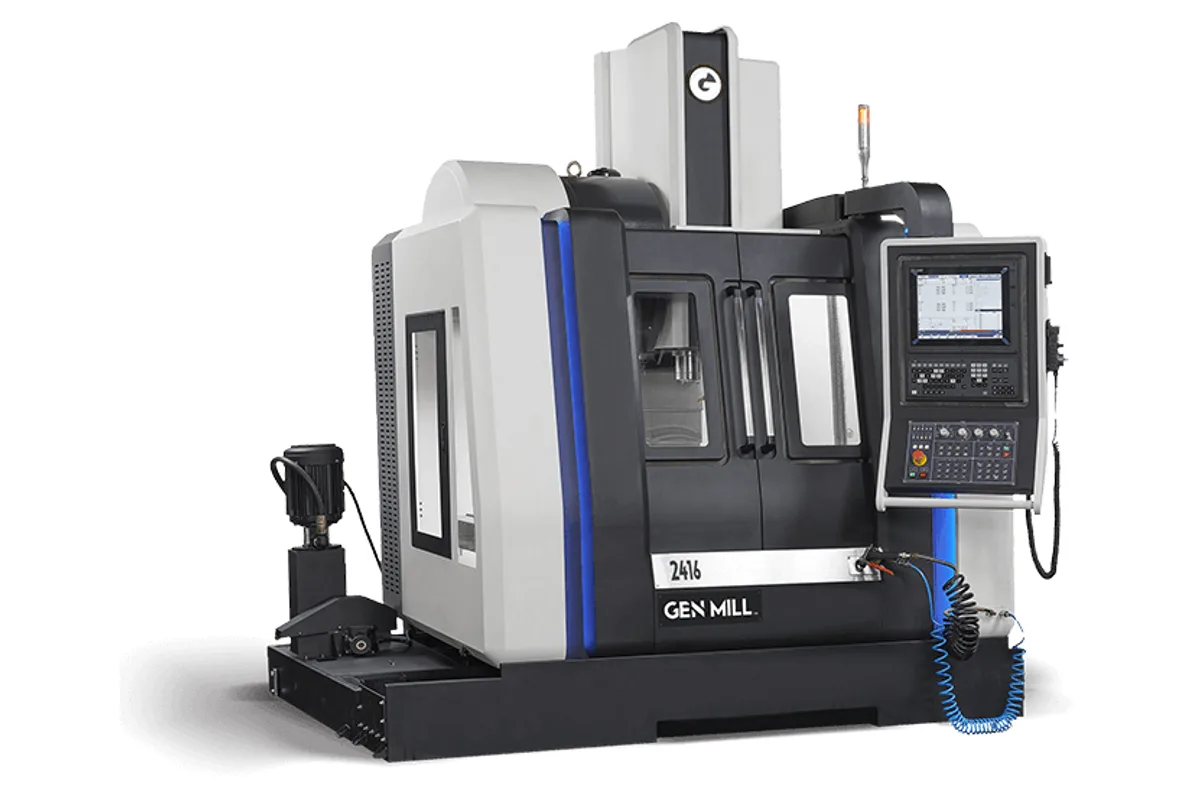

Ganesh GEN MILL 2416
Image: expandmachinery.com, Ganesh
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Ganesh GEN MILL 2416 cost?
Price estimate
We do not have a price for the Ganesh GEN MILL 2416 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The GEN MILL 2416 is the smallest of Expand Machinery's 3-axis vertical machining centers, with 24.01 in (610 mm) of X travel, 15.75 in (400 mm) of Y and 17.72 in (450 mm) of Z. It is a 40-taper machine with a 12,000 rpm inline direct-drive spindle and a 24+1 twin-arm tool changer.
The table measures 25.59 x 15.75 in (650 x 400 mm), barely longer than the X stroke, and carries 882 lb (400 kg). Daylight under the spindle runs from 5.11 to 22.83 in (130 - 580 mm), which leaves room for a vise plus a tall tool, or for a small rotary table.
For its size the machine is equipped for fast work. Rapids are 1,417 ipm (36 m/min) in X and Y and 1,260 ipm (32 m/min) in Z, tool changes take 2.2 sec tool-to-tool, and the maker lists 2,700 block look-ahead, a spindle chiller and 300 psi through-the-tool coolant. The spindle is a double-ground Big-Plus type. Its motor is rated 15 HP on the S3 rating and 10 HP for 30 min, which is modest; a 15,000 rpm spindle is optional. Cutting feed tops out at 393 ipm (10 m/min).
All three axes run on cross-roller linear ways of 30, 35 and 35 mm with 32 mm ballscrews. Listed accuracy is ±0.0002 in over 12 in and repeatability ±0.0001 in over 12 in to JIS6338. The machine weighs 9,923 lb (4,500 kg) and takes 87 x 73 x 113 in of floor space, plus 44 in for the conveyor. The GEN MILL 3120 is the next size up, with 31.496 in (800 mm) of X and a 30+1 tool changer.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 24.01 in (610 mm) |
| Y Axis Travel | 15.75 in (400 mm) |
| Z Axis Travel | 17.72 in (450 mm) |
| Distance Spindle Nose to Table | 5.11 - 22.83 in (130 - 580 mm) |
| Throat | 15.35 in (390 mm) spindle center to Z-axis way covers |
| Table Size | 25.59 x 15.75 in (650 x 400 mm) |
| T-Slots | 3 T-slots, 18 mm wide on 100 mm centers |
| Max Table Load | 882 lb (400 kg) |
| Spindle Motor Power | 15 HP S3 power, 10 HP 30 min duty rating (S1 / S2 / S3 = 5.5 / 7.5 / 11 kW) |
| Max Spindle Speed | 12,000 rpm (15,000 rpm optional), inline direct drive |
| Spindle Taper | CAT 40 (BT 40 optional) |
| Spindle Runout | ≤ 0.000040 in T.I.R. |
| Positioning Accuracy | ±0.0002 in / 12 in (±0.005 mm over 300 mm travel), JIS6338 |
| Repeatability | ±0.0001 in / 12 in (±0.003 mm over 300 mm travel), JIS6338 |
| Rapid Traverse Xyz | 1,417 ipm (36 m/min) X, Y; 1,260 ipm (32 m/min) Z |
| Cutting Feed Rate | 0.02 - 393 ipm (10 m/min) |
| Axis Motor Power | X, Y 2.7 HP (2.0 kW); Z 3.35 HP (2.5 kW) |
| Ballscrews | 32 mm, 12 mm pitch (X, Y, Z) |
| Linear Ways | 30 / 35 / 35 mm cross-roller (X / Y / Z) |
| Tool Capacity | 24+1, twin-arm tool changer |
| Tool Change Time | 2.2 sec tool-to-tool |
| Max Tool Diameter (full magazine) | 5.90 in (150 mm); 3.15 in (80 mm) with adjacent tools |
| Max Tool Length | 11.81 in (300 mm) from gage line |
| Max Tool Weight | 15 lb (7 kg) |
| Air Requirement | 85 psi at 14 scfm |
| Power Requirement | 25 kVA, 220 VAC ±5%, 60 Hz |
| Coolant Tank Capacity | 68 gallons (256 liters) |
| Machine Dimensions | 87 x 73 x 113 in (218 x 186 x 288 cm) W x D x H, add 44 in for conveyor |
| Machine Weight | 9,923 lb (4,500 kg) |
Specifications sourced from expandmachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 12,000 rpm inline direct-drive Big-Plus spindle, with 15,000 rpm optional
- Rapids of 1,417 ipm (36 m/min) in X and Y and a 2.2 sec tool-to-tool change
- Cross-roller linear ways on all three axes
- 300 psi through-the-tool coolant and a spindle chiller listed as features
- Listed repeatability of ±0.0001 in over 12 in (±0.003 mm over 300 mm travel)
Limitations
- Y travel is 15.75 in (400 mm) and table load 882 lb (400 kg)
- Spindle motor is 15 HP on the S3 rating, 10 HP for 30 min
- 24+1 tool positions, fewer than the 30+1 of the GEN MILL 3120
- Tools are limited to 3.15 in (80 mm) in diameter with adjacent pockets full, and to 15 lb (7 kg)
Best For
Frequently Asked Questions
01
X, Y and Z travels are 24.01 in (610 mm), 15.75 in (400 mm) and 17.72 in (450 mm). The table is 25.59 x 15.75 in (650 x 400 mm) with 3 T-slots of 18 mm on 100 mm centers, and it carries 882 lb (400 kg). Spindle nose to table is 5.11 - 22.83 in (130 - 580 mm).
02
A CAT 40 inline direct-drive spindle at 12,000 rpm, with BT 40 and a 15,000 rpm version optional. The motor is rated 15 HP on S3 and 10 HP on the 30 min duty rating. Expand Machinery describes the spindle as a double-ground Big-Plus type and lists a spindle chiller.
03
24+1 in a twin-arm changer with random access, changing in 2.2 sec tool-to-tool. Maximum tool diameter is 5.90 in (150 mm), or 3.15 in (80 mm) with adjacent tools, maximum length 11.81 in (300 mm) from the gage line and maximum weight 15 lb (7 kg).
04
A 25 kVA connected load at 220 VAC ±5%, 60 Hz, and air at 85 psi and 14 scfm. Floor space is 87 x 73 x 113 in (218 x 186 x 288 cm), with 44 in more for the conveyor. The machine weighs 9,923 lb (4,500 kg) and the coolant tank holds 68 gallons (256 liters).
