Vision Wide Vertical Machining Centers (VMC)

Vision Wide VB-2520

Q: How much does the Vision Wide VB-2520 cost?

The price estimate for the Vision Wide VB-2520 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-vb-2520#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

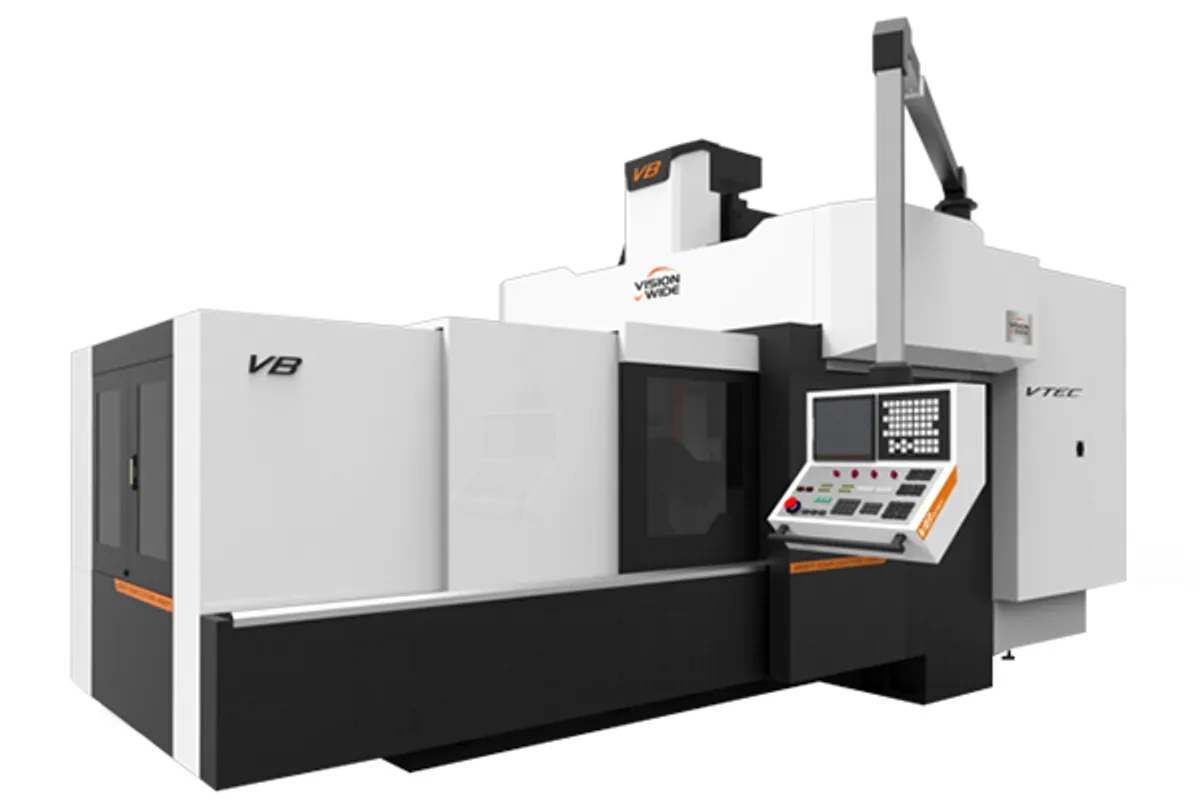

Image: visionwide-tech.com, Vision Wide

Key Specifications

Tool Capacity

32/40 pcs(OPT.)

Table Size

2,500×1,700 mm (98.4×66.9 in)

x axis travel

2,500 mm (98.4 in)

y axis travel

2,000 mm (78.7 in)

z axis travel

800/1,020 mm (31.5/40.2 in)(OPT..)

max table load

10,000 kg (22,046 lb)

How much does the Vision Wide VB-2520 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide VB-2520 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Cast iron is the substance of the Vision Wide VB-2520. Vision Wide says the main structural parts are Meehanite grade castings of box shape with ribs, given a stress-relief heat treatment, to provide durable and rigid support.

For a heavy-cutting machine the casting grade is not a marketing detail. A dense, stress-relieved iron casting holds its shape over years and damps vibration better than a welded steel frame, and both properties show up in tool life when a large cutter is working at the edge of its capacity. The VB is the series in which the maker leans on that: box ways, geared spindle, iron structure.

It is also where the largest motor makes sense. The standard is 18.5/22 kW (24.8/29.5 hp). The options are 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp), and a shop buying this machine for roughing should compare them before ordering.

The VB-2520 has 2,500 mm (98.4 in) of X travel and 2,000 mm (78.7 in) of Y. The table is 2,500×1,700 mm (98.4×66.9 in), rated for 10,000 kg (22,046 lb). Rapid traverse is 15 m/min on each axis, and the gear spindle runs 4,000 rpm as standard.

Full Specifications

Parameter	Value
X Axis Travel	2,500 mm (98.4 in)
Y Axis Travel	2,000 mm (78.7 in)
Z Axis Travel	800/1,020 mm (31.5/40.2 in)(OPT..)
Table Size	2,500×1,700 mm (98.4×66.9 in)
Max Table Load	10,000 kg (22,046 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.)
Spindle Speed 2 Step Gear	4,000/6,000 rpm(OPT.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xyz	X/Y/Z：15 m/min
Tool Capacity	32/40 pcs(OPT.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Meehanite grade castings with stress-relief heat treatment
Motor options of 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp)
2,500×1,700 mm (98.4×66.9 in) table for 10,000 kg (22,046 lb)
Hardened box ways on X, Y and Z

Limitations

No spindle torque figure is published
Cutting feed of 1-7,000 mm/min
Larger motors are extras over the 18.5/22 kW (24.8/29.5 hp) standard

Best For

Roughing with large cutters in steel and iron Die blocks and machine parts up to 10,000 kg (22,046 lb) Long-term heavy-duty use in iron and steel

Frequently Asked Questions

01 What is the Vision Wide VB-2520 made of?

Vision Wide says the main casting structure parts are made of Meehanite grade cast iron with stress-relief heat treatment, in a box shape with ribs, and that the bed has strong V-shape reinforcing ribs.

02 Which spindle motors are available on the VB-2520?

18.5/22 kW (24.8/29.5 hp) is standard. 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp) are marked as options. Each pair is the continuous and short-time rating.

03 What are the VB-2520 travels?

X travel is 2,500 mm (98.4 in), Y travel 2,000 mm (78.7 in) and Z travel 800 mm, or 1,020 mm with the option. The table is 2,500×1,700 mm (98.4×66.9 in).

04 How much load does the VB-2520 table take?

10,000 kg (22,046 lb). The shorter VB-2020 takes 9,000 kg (19,841 lb) and the longer VB-3020 takes 11,000 kg (24,250 lb).
