Trumpf TruLaser Station 7000

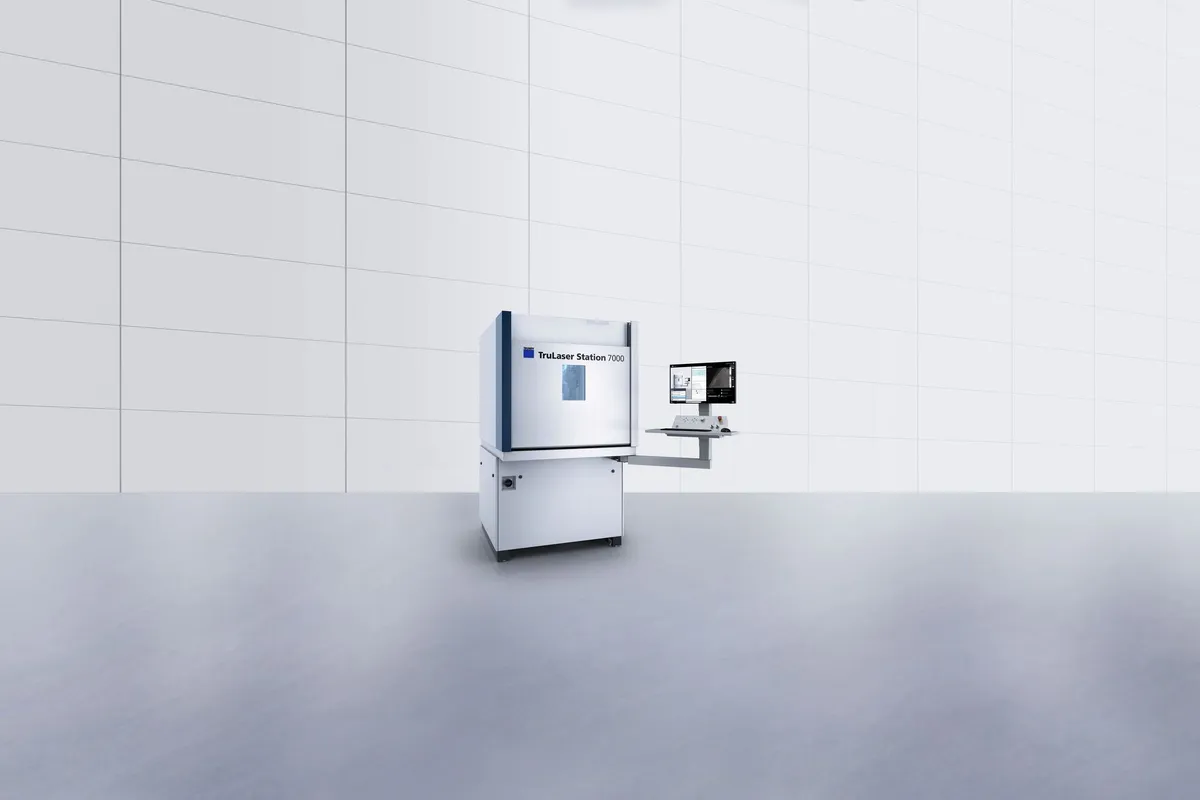

The Trumpf TruLaser Station 7000 is a compact, fully enclosed 5-axis laser welding system designed for small assemblies and precision components. It is the entry-level machine in Trumpf's laser welding product line, targeting shops and production environments that need automated laser welding capability in a minimal footprint without the investment and floor space requirements of a full robotic welding cell.

The machine provides 5-axis motion with travel ranges of 650 mm (X), 350 mm (Y), 500 mm (Z), +/-120 degrees (B-axis), and continuous 360-degree C-axis rotation. Maximum axis speeds are 6 m/min individually and 10 m/min simultaneously. Positioning accuracy is 0.08 mm on linear axes with 0.03 mm repeatability. These specifications target precision welding of small components rather than high-speed processing of large assemblies.

Laser power options include up to 2,000 W from Trumpf's range of TruDisk, TruFiber, TruMicro, and TruPulse laser sources. The TruMicro and TruPulse options enable micro-welding and pulsed welding for applications requiring minimal heat input -- medical devices, electronics, and precision instruments where thermal distortion must be controlled.

The compact footprint makes the TruLaser Station 7000 suitable for integration into existing production lines and cleanroom environments. An optional rotary table enables automated fixturing for series production of cylindrical or rotationally symmetric components. Integrated image processing provides in-process quality verification.

The machine is fully enclosed with Class 1 laser safety rating, meaning no special laser safety room is required. This is a significant practical advantage over open-beam robotic cells that require dedicated laser-safe enclosures or curtained areas. The system includes Trumpf's standard TruTops programming environment for offline path generation.
