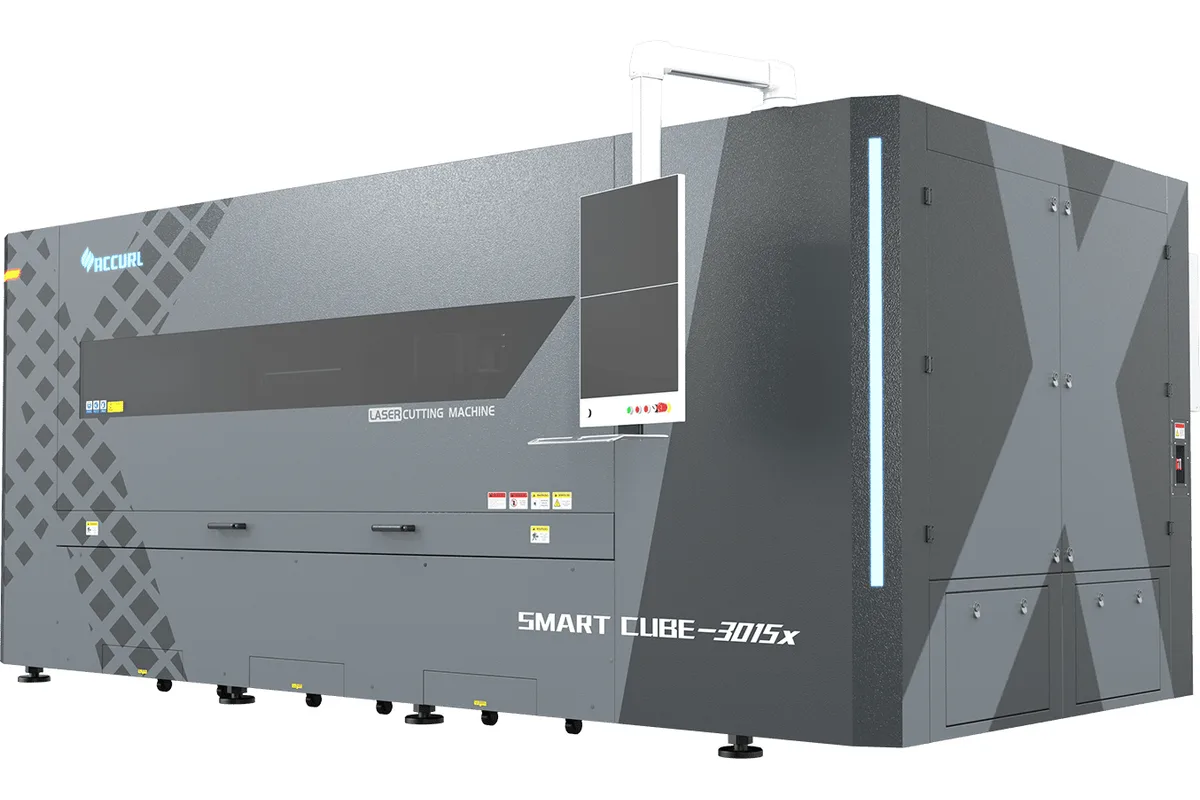

Accurl SMART Cube X 1251.25
Image: accurl.com, Accurl
Key Specifications
Accuracy
Repeatability
work area length
work area width
max workpiece weight
automatic shuttle table
How much does the Accurl SMART Cube X 1251.25 cost?
Price estimate
We do not have a price for the Accurl SMART Cube X 1251.25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Between the two ends of the compact range sits the Accurl SMART Cube X 1251.25. Its work area is listed as 1,300 mm (51.2 in) long and 2,520 mm (99.2 in) wide, and the shuttle table may carry 500 kg (1,102 lb). That makes it the natural fit for the medium sheet format that many suppliers stock, on a machine still built for tight floor space.
What does the middle size give up or gain? Against the SMART Cube X 1001.20 it carries more than the 350 kg (772 lb) of that machine. Against the SMART Cube X 1501.30 it stays below the 750 kg (1,653 lb) that the largest model carries. Everything else in Accurl's table is common to the series: a structural steel gantry, traverse speed up to 120,000 mm/min, ± 0.03 mm positioning accuracy and ± 0.05 mm repeatability according to VDI/DGQ 3441.
Weight is the figure to plan around. Accurl tells buyers to select the sheet metal format according to the maximum permissible workpiece weight, and with 500 kg (1,102 lb) available a full-size sheet for this table stays inside the limit only up to a moderate thickness. The laser itself goes further: with a 12 kW source the table shows 30 mm (1.18 in) in mild steel, stainless and aluminium.
Components come in a European and an Asian set: THERMACUT Ex-Trabeam or BOCHU BLT cutting head, MSE SmartControl or TWINCUT S80, Eckelmann or Yaskawa drives. Racks are WITTENSTEIN alpha and linear guides BOSCH Rexroth in both.
Full Specifications
| Parameter | Value |
|---|---|
| Work Area Length | 1,300 mm (51.2 in) |
| Work Area Width | 2,520 mm (99.2 in) |
| Max Workpiece Weight | 500 kg (1,102 lb) |
| Automatic Shuttle Table | Included as standard |
| Cutting Process | Fiber laser |
| Max Laser Source Power | 12 kW |
| Traverse Speed | up to 120,000 mm/min |
| Positioning Accuracy | ± 0.03 mm according to VDI/DGQ 3441 |
| Repeatability | ± 0.05 mm according to VDI/DGQ 3441 |
| Xy Axis Drive | linear guides, driven on both sides and helical toothed racks |
| Z Axis Drive | rack |
| Gantry Type | structural steel gantry |
| CNC Control | MSE SmartControl / TWINCUT S80 |
| Main Control Panel | ergonomic 2 x 21.5" TFT multitouch panel |
| Operating System | Windows 11 LTSC / Windows 10 LTSC |
| Max Sheet Thickness Mild Steel | 18 mm (0.71 in) at 3 kW; 25 mm (0.98 in) at 6 kW; 30 mm (1.18 in) at 12 kW |
| Max Sheet Thickness Stainless Steel | 10 mm (0.39 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 30 mm (1.18 in) at 12 kW |
| Max Sheet Thickness Aluminium | 12 mm (0.47 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 30 mm (1.18 in) at 12 kW |
| Max Sheet Thickness Brass | 6 mm (0.24 in) at 3 kW; 15 mm (0.59 in) at 6 kW; 20 mm (0.79 in) at 12 kW |
| Max Sheet Thickness Copper | 5 mm (0.20 in) at 3 kW; 10 mm (0.39 in) at 6 kW; 15 mm (0.59 in) at 12 kW |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Work area of 1,300 mm (51.2 in) by 2,520 mm (99.2 in) for medium-format sheet
- 500 kg (1,102 lb) maximum workpiece weight
- Automatic shuttle table included as standard
- WITTENSTEIN alpha racks and BOSCH Rexroth linear guides
- Up to 30 mm (1.18 in) mild steel, stainless and aluminium at 12 kW
Limitations
- The 500 kg (1,102 lb) limit restricts thick plate in full-size sheets
- No overall footprint figures are published for this model
- Repeatability is ± 0.05 mm, looser than the ± 0.02 mm of the SmartLINE X 3001.15
- Laser power for the series ends at 12 kW
Best For
Frequently Asked Questions
01
Accurl lists 1,300 mm (51.2 in) for length and 2,520 mm (99.2 in) for width. It is the middle of three sizes; the SMART Cube X 1001.20 is smaller and the SMART Cube X 1501.30 larger, and all three share the same motion and accuracy figures.
02
The maximum permissible workpiece weight is 500 kg (1,102 lb). Accurl notes that the sheet metal format should be selected according to that limit, so check the weight of your thickest full sheet before ordering.
03
Positioning accuracy Pa is ± 0.03 mm and repeatability Ps is ± 0.05 mm, both stated according to VDI/DGQ 3441. Traverse speed is up to 120,000 mm/min on linear guides with helical toothed racks driven on both sides.
04
The page lists a THERMACUT Ex-Trabeam or BOCHU BLT cutting head, MicroStep Europa MSE SmartControl or TWINCUT S80 control, Eckelmann or Yaskawa servo drives, WITTENSTEIN alpha gears and racks, BOSCH Rexroth linear guides and a HOERBIGER LasGARCompact gas valve.
