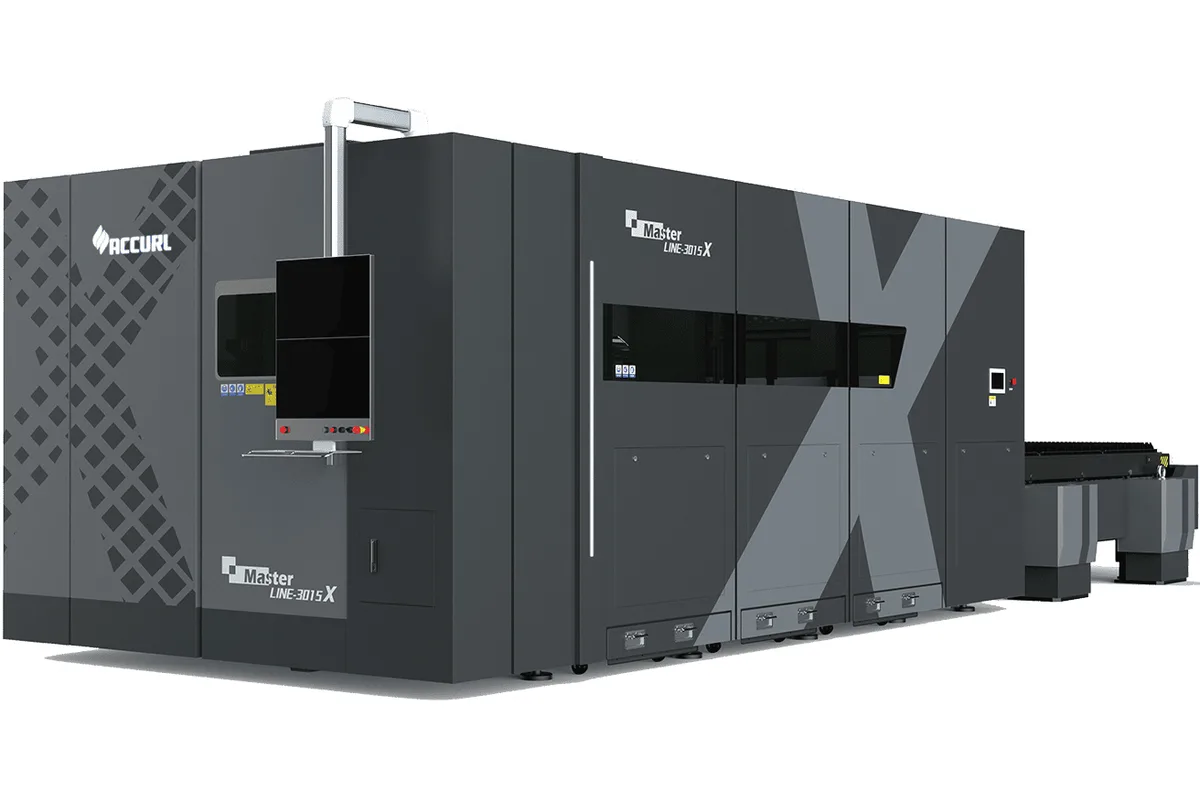

Accurl MasterLINE X 4001.20
Image: accurl.com, Accurl
Key Specifications
Accuracy
Repeatability
work area length
work area width
max workpiece weight
length incl peripherals
How much does the Accurl MasterLINE X 4001.20 cost?
Price estimate
We do not have a price for the Accurl MasterLINE X 4001.20 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 4,010 mm (157.9 in) by 2,010 mm (79.1 in) work area defines the Accurl MasterLINE X 4001.20, the second of five table sizes in Accurl's high-end laser line. It carries 400 kg/m², runs at up to 180,000 mm/min and comes with an automatic shuttle table.
This is the size at which the MasterLINE X starts to compete for plate work as well as thin sheet. A 4 m by 2 m sheet nests long structural parts, and the available sources reach far beyond what the table rating will let you load in a single full sheet: 400 kg/m² is the same figure as the MasterLINE X 3001.15, and it is the MasterLINE X 6001.20 that first moves to 550 kg/m². Buyers who mean to cut thick plate regularly should weigh that before choosing the 4 m table.
For sheet up to the weight limit the machine offers the full specification of the line. The gantry is ultra-light cast aluminium, X and Y run on linear guides with helical toothed racks driven on both sides, and accuracy is ± 0.03 mm positioning with ± 0.02 mm repeatability. Accurl lists an automatic nozzle changer and its LasGAM gas control among the features of the series.
The cell measures approximately 12,070 mm (475.2 in) by 3,680 mm (144.9 in) with a height of 2,680 mm (105.5 in), peripherals included. Controls are the MSE SmartControl or the TWINCUT S80, each on two 21.5" multitouch panels.
Full Specifications
| Parameter | Value |
|---|---|
| Work Area Length | 4,010 mm (157.9 in) |
| Work Area Width | 2,010 mm (79.1 in) |
| Max Workpiece Weight | 400 kg/m² |
| Length Incl Peripherals | 12,070 mm (475.2 in) (approximate) |
| Width Incl Peripherals | 3,680 mm (144.9 in) (approximate) |
| Height Incl Peripherals | 2,680 mm (105.5 in) (approximate) |
| Automatic Shuttle Table | Included as standard |
| Cutting Process | Fiber laser |
| Max Laser Source Power | 60 kW |
| Traverse Speed | up to 180,000 mm/min |
| Positioning Accuracy | ± 0.03 mm according to VDI/DGQ 3441 |
| Repeatability | ± 0.02 mm according to VDI/DGQ 3441 |
| Xy Axis Drive | linear guides, driven on both sides and helical toothed racks |
| Z Axis Drive | rack |
| Gantry Type | ultra-light cast aluminium gantry |
| CNC Control | MSE SmartControl / TWINCUT S80 |
| Main Control Panel | ergonomic 2 x 21.5" TFT multitouch panel |
| Operating System | Windows 11 LTSC / Windows 10 LTSC |
| Max Sheet Thickness Mild Steel | 18 mm (0.71 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 50 mm (1.97 in) at 30 kW |
| Max Sheet Thickness Stainless Steel | 10 mm (0.39 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW |
| Max Sheet Thickness Aluminium | 12 mm (0.47 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW |
| Max Sheet Thickness Brass | 6 mm (0.24 in) at 3 kW; 20 mm (0.79 in) at 12 kW; 25 mm (0.98 in) at 30 kW |
| Max Sheet Thickness Copper | 5 mm (0.20 in) at 3 kW; 15 mm (0.59 in) at 12 kW; 15 mm (0.59 in) at 30 kW |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Work area of 4,010 mm (157.9 in) by 2,010 mm (79.1 in)
- Up to 180,000 mm/min traverse speed
- ± 0.03 mm positioning accuracy and ± 0.02 mm repeatability
- Laser sources of up to 60 kW are available for the series
- MSE SmartControl or TWINCUT S80 on an ergonomic 2 x 21.5" TFT multitouch panel
Limitations
- 400 kg/m² rating; the 550 kg/m² table starts with the MasterLINE X 6001.20
- Installed length of roughly 12,070 mm (475.2 in)
- Bevel cutting is not yet available, only announced
- No per-model weight of the machine itself is published
Best For
Frequently Asked Questions
01
Its work area is 4,010 mm (157.9 in) long and 2,010 mm (79.1 in) wide, the 4,000 x 2,000 mm entry in Accurl's list of table sizes. The maximum permissible workpiece weight is 400 kg/m².
02
About 12,070 mm (475.2 in) in length and 3,680 mm (144.9 in) in width, with a height of 2,680 mm (105.5 in). The approximate figures include the laser source, filter system, cooler and safety equipment.
03
The laser is; the table sets the limit. Accurl's thickness table shows 50 mm (1.97 in) mild steel at 30 kW, but the table rating is 400 kg/m², and Accurl says to select the sheet format according to the permissible workpiece weight.
04
Positioning accuracy Pa of ± 0.03 mm and repeatability Ps of ± 0.02 mm, both according to VDI/DGQ 3441. X and Y use linear guides and helical toothed racks driven on both sides; the Z axis is rack driven.
