Mazak Optiplex Nexus 510 II Fiber Laser
This model was not found in Yamazaki Mazak's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
Accuracy
cutting area
laser power
laser type
max cutting thickness steel
positioning speed
How much does the Mazak Optiplex Nexus 510 II Fiber Laser cost?
Estimated price range
Our best estimate for a cnc laser cutting machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak Optiplex Nexus 510 II Fiber Laser is listed with a long, narrow cutting area of 5,100 x 1,530 mm and a fiber source of 2,000 W to 6,000 W. A bed of that shape suits long strips, rails and nested runs of parts cut from long sheet. The model is absent from Mazak's current lineup and may be an older one. Its table is short and has not been checked against a Mazak source, so measure the bed and read the nameplate of any machine on offer.
Listed capacity at 6 kW is 22 mm in mild steel, with 16 mm given for stainless and 12 mm for aluminum. The drive is listed as linear motor with a positioning speed of 100 m/min, and positioning accuracy as ±0.05 mm. Machine weight is given as approximately 12,500 kg, which is the one installation figure in the table; sheet weight, floor space and electrical supply are missing.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 5,100 x 1,530 mm |
| Laser Power | 2,000 W – 6,000 W (fiber) |
| Laser Type | Fiber laser |
| Max Cutting Thickness Steel | 22 mm (mild steel, 6 kW); 16 mm (stainless); 12 mm (aluminum) |
| Positioning Speed | 100 m/min (linear motor drive) |
| Positioning Accuracy | ±0.05 mm |
| Control System | Mazak Mazatrol Fabric HMI |
| Machine Weight | Approx. 12,500 kg |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Listed 5,100 x 1,530 mm cutting area for long sheet and long parts
- Fiber source listed from 2,000 W to 6,000 W, with 22 mm mild steel capacity at 6 kW
- Linear motor drive with a listed positioning speed of 100 m/min
Limitations
- Absent from Mazak's current lineup; the listed figures have not been checked against a Mazak source
- The table is short: no sheet weight, floor space or power supply figures
Best For
Frequently Asked Questions
01
The listed cutting area is 5,100 x 1,530 mm. Because the table has not been checked against a Mazak source, measure the bed of the actual machine before planning sheet sizes around that figure.
02
The table lists 22 mm in mild steel at 6 kW, 16 mm in stainless and 12 mm in aluminum. The source is listed from 2,000 W to 6,000 W, and a lower-powered machine will not reach those thicknesses.
03
It is absent from Mazak's current lineup and may be an older model. Anyone considering a second-hand example should confirm power, bed size and the approximately 12,500 kg machine weight from its documentation.
More from Yamazaki Mazak
Mazak OptiPlex 3015 Ez
Mazak OptiPlex Nexus 3015
Mazak Optiplex 3015 Fiber II Laser
Mazak FabriGear 300
Mazak OptiPlex Champion
Mazak OPTIPLEX 3015 DDL
Other CNC Laser Cutting Machines

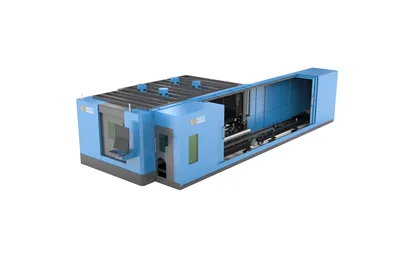

Haco HFL 3015 CEG
IPG Photonics YLP-HP High-Power Laser Processing System

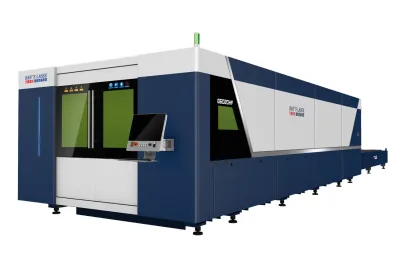

Han's Laser G6020HF
