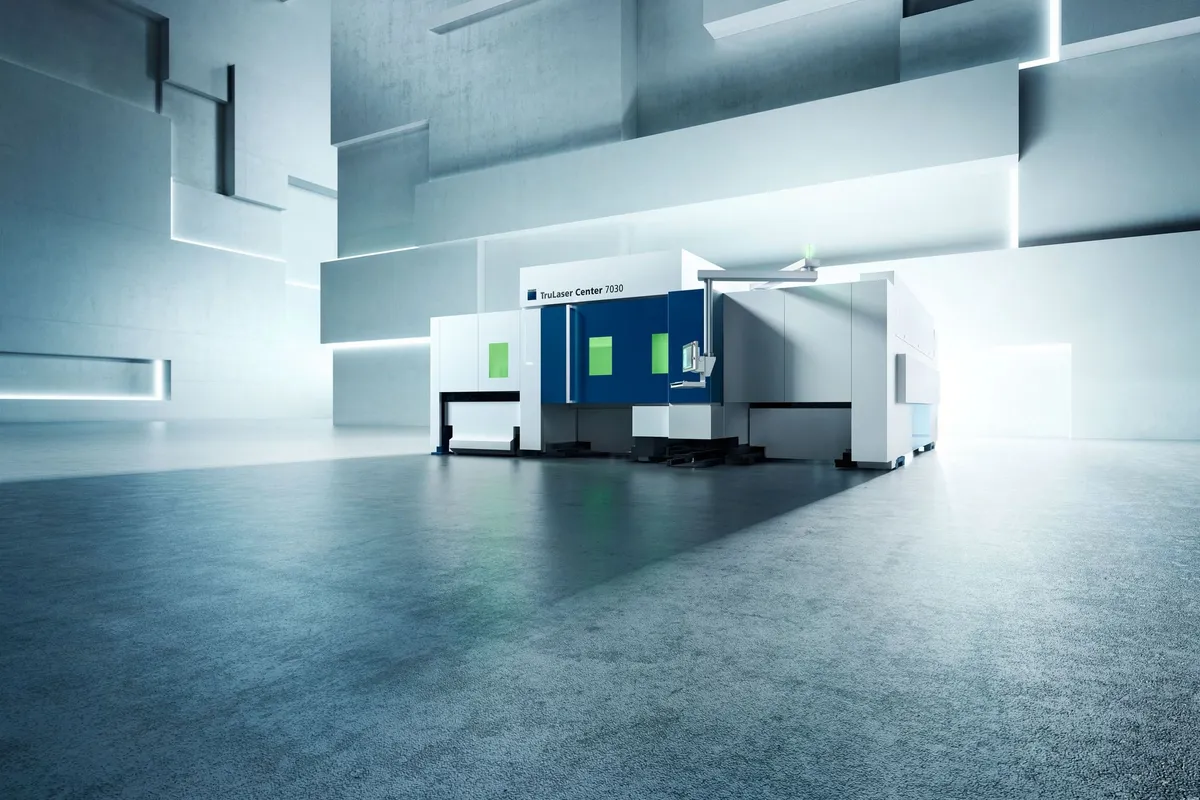

Trumpf TruLaser Center 7030
Image: trumpf.com, TRUMPF
Key Specifications
X Travel
Y Travel
Z Travel
working range x
working range y
working range z
How much does the Trumpf TruLaser Center 7030 cost?
Estimated price range
Our best estimate for a cnc laser cutting machine in this class — not a quote from TRUMPF. Configuration moves it a long way.
Overview
The Trumpf TruLaser Center 7030 is a 2D fiber laser that cuts, removes and sorts parts in one machine. The working range is 3,000 × 1,500 mm (118 × 59 in) with 120 mm (4.7 in) of Z, and the laser is either a TruFiber 6001 (6,000 W) or a TruFiber 12001 (12,000 W).
Two removal routes are listed, each with its own window of part sizes. SmartGate handles small parts from 30 x 30 mm to 160 x 160 mm. SortMaster Speed takes parts from 90 x 60 mm up to 2,000 x 1,500 mm. Check every part of a nest against those windows before committing a job to the machine: a part longer than 2,000 mm fits the 3,000 mm working range for cutting but lies outside what SortMaster Speed is listed to remove. Trumpf also names additional axes, brush tables and SmartLift as part of the design, and TruTops Boost generates a suggestion for the cutting, removal, sorting and depositing of the parts.
The thickness limits are the same with either laser: 12.7 mm (0.50 in) in mild steel and stainless steel, and 6 mm (0.24 in) in aluminum, copper and brass. Since the TruFiber 12001 adds no thickness over the 6001 here, the reason to choose it is cutting speed. The limits are also much lower than on a conventional machine with the same laser. The TruLaser 5030 with the TruFiber 6001 is listed up to 25 mm (0.98 in) in mild steel, so plate work stays on a machine of that kind.
The automation shows in mass and floor area. The TruLaser Center 7030 weighs 38,860 kg (85,672 lb) with all units, more than three times the 11,700 kg (25,794 lb) of the TruLaser 5030 on the same sheet format. It is 10,135 mm (399 in) long and 3,050 mm (120 in) high. Width is 6,420 mm (253 in) retracted and 10,720 mm (422 in) extended, and the extended figure is the one to plan the floor around.
Full Specifications
| Parameter | Value |
|---|---|
| Working Range X | 3,000 mm (118 in) |
| Working Range Y | 1,500 mm (59 in) |
| Working Range Z | 120 mm (4.7 in) |
| Laser Options | TruFiber 6001 (6,000 W) / TruFiber 12001 (12,000 W) |
| Max Thickness Brass Copper | 6 mm (0.24 in) |
| Smartgate Part Range | 30 x 30 mm to 160 x 160 mm |
| Sortmaster Speed Part Range | 90 x 60 mm to 2,000 x 1,500 mm |
| Machine Weight | 38,860 kg (85,672 lb) |
| Installation Length | 10,135 mm (399 in) |
| Installation Width Extended | 10,720 mm (422 in) |
| Installation Width Retracted | 6,420 mm (253 in) |
| Installation Height | 3,050 mm (120 in) |
| Weight with All Units | 38860 kg |
| Maximum Sheet Thickness Brass | 6 mm |
| Maximum Sheet Thickness Copper | 6 mm |
| Maximum Part Size | 2000 mm x 1500 mm |
| Minimum Part Size | 90 mm x 60 mm |
| X-Axis Travel | 3,000 mm (118 in) |
| Y-Axis Travel | 1,500 mm (59.1 in) |
| Z-Axis Travel | 120 mm (4.72 in) |
| Laser Power Options | 6 / 12 kW with TruFiber 6001 / 12001 |
| Max Sheet Thickness Mild Steel | 12.7 / 12.7 mm (0.50 / 0.50 in) with TruFiber 6001 / 12001 |
| Max Sheet Thickness Stainless Steel | 12.7 / 12.7 mm (0.50 / 0.50 in) with TruFiber 6001 / 12001 |
| Max Sheet Thickness Aluminum | 6 / 6 mm (0.24 / 0.24 in) with TruFiber 6001 / 12001 |
| Floor Space Required | 10,135 × 6,420 × 3,050 mm (399 × 253 × 120 in) |
Specifications sourced from trumpf.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Cutting, part removal, sorting and depositing in one machine, programmed with TruTops Boost
- SmartGate removes small parts from 30 x 30 mm to 160 x 160 mm
- SortMaster Speed handles parts from 90 x 60 mm up to 2,000 x 1,500 mm
- Choice of TruFiber 6001 (6,000 W) or TruFiber 12001 (12,000 W) on a 3,000 × 1,500 mm (118 × 59 in) working range
- Mild steel and stainless steel up to 12.7 mm (0.50 in) with either laser
Limitations
- Maximum thickness is 12.7 mm (0.50 in) in steel and stainless and 6 mm (0.24 in) in aluminum, copper and brass, whichever laser is fitted
- Parts longer than 2,000 mm are outside the SortMaster Speed range
- Needs 10,135 mm (399 in) of length and 10,720 mm (422 in) of width when extended
- At 38,860 kg (85,672 lb) the foundation and delivery route need checking early
Best For
Frequently Asked Questions
01
Two ranges are listed. SmartGate takes small parts from 30 x 30 mm to 160 x 160 mm. SortMaster Speed takes parts from 90 x 60 mm to 2,000 x 1,500 mm. A part that fits neither range, for example one longer than 2,000 mm, can lie inside the 3,000 × 1,500 mm working range and still not be covered by the listed removal figures.
02
Up to 12.7 mm (0.50 in) in mild steel and stainless steel and up to 6 mm (0.24 in) in aluminum, copper and brass. The figures are the same for the TruFiber 6001 and the TruFiber 12001. For comparison, the TruLaser 5030 with the TruFiber 6001 is listed up to 25 mm (0.98 in) in mild steel.
03
The TruFiber 6001 with 6,000 W and the TruFiber 12001 with 12,000 W. Both have the same listed thickness limits on this machine, so the larger laser is a choice for higher cutting speed within those limits and not for thicker material.
04
The installation is 10,135 mm (399 in) long and 3,050 mm (120 in) high. Its width is 6,420 mm (253 in) retracted and 10,720 mm (422 in) extended. Weight with all units is 38,860 kg (85,672 lb). Plan the floor for the extended width, and add the space for raw sheet and finished-part logistics around it.
05
According to Trumpf, TruTops Boost automatically generates a suggestion for the cutting, removal, sorting and depositing of parts. In practice that means the programmer starts from a proposed sequence for the whole process, including where each part is put down, and adjusts it where needed.
