Trumpf TruLaser Cell Series 1000
Image: trumpf.com, TRUMPF
Key Specifications
X Travel
Z Travel
axes
b axis range
q axis range
max speed x z
How much does the Trumpf TruLaser Cell Series 1000 cost?
Estimated price range
Our best estimate for a cnc laser cutting machine in this class — not a quote from TRUMPF. Configuration moves it a long way.
Overview

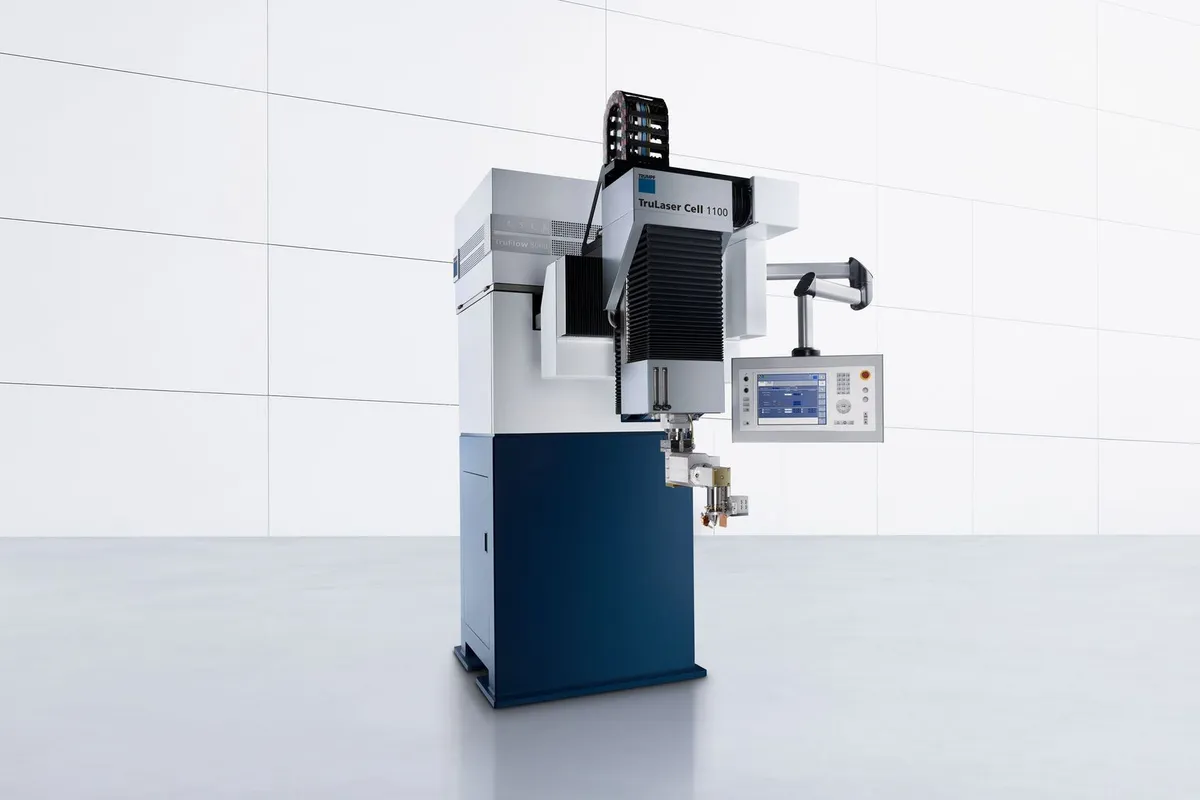

The Trumpf TruLaser Cell Series 1000 is a laser cell with an unusual axis set: X and Z linear axes with 300/500 mm of travel each, a B axis swinging +/-100 degrees, and a Q axis of +/-25 mm that is used for position correction. The table has no Y axis. A cell laid out this way is built for a seam that runs in one direction past the optics, with the Q axis holding the beam on the joint, and not for contouring flat sheet.
Two families of laser are listed. CO2 sources run from 3,200 W to 15,000 W. Solid-state sources, the TruDiode and TruDisk, run from 2,000 W to 8,000 W. The choice between them is the main configuration decision, since the axis figures are the same either way.
Those axis figures are modest. X and Z move at 30 m/min with an acceleration of 1.5 m/s², and the Q axis at 3 m/min. Positioning accuracy is 0.1 mm on the linear axes and 0.015 degrees on the B axis. That fits the job: the main axes set the position of the optics, and the Q axis then makes small corrections. The SeamLine sensor for seam tracking is an option, so plan on it if joint position varies from part to part.
Materials listed are steel, stainless steel, aluminum and non-ferrous metals, in thicknesses from 0.1 mm to several mm; the table gives no firmer upper limit. Travel is written as 300/500 mm without stating which variant has which, so confirm the travel when specifying. The control is a Trumpf integrated control.
Full Specifications
| Parameter | Value |
|---|---|
| Axes | X, Z, B, Q (position correction) |
| X-Axis Travel | 300/500 mm |
| Z-Axis Travel | 300/500 mm |
| B Axis Range | +/-100 degrees |
| Q Axis Range | +/-25 mm (position correction) |
| Max Speed X Z | 30 m/min |
| Max Speed Q | 3 m/min (correction axis) |
| Axis Acceleration | 1.5 m/s2 |
| Linear Positioning Accuracy | 0.1 mm |
| Rotary Positioning Accuracy | 0.015 degrees (B-axis) |
| Co2 Laser Power | 3,200 - 15,000 W |
| Solid State Laser Power | 2,000 - 8,000 W (TruDiode / TruDisk) |
| Materials | Steel, stainless steel, aluminum, non-ferrous metals |
| Thickness Range | 0.1 mm to several mm |
| Seam Tracking | SeamLine sensor (optional) |
| CNC Control | Trumpf integrated control |
| X Axis Travel Range | 300/500 mm |
| Z Axis Travel Range | 300/500 mm |
| B Axis Travel Range | ± 100 ° |
| Q Axis Travel Range | ± 25 mm |
| Max Axis Speed Axially Parallel in X | 30 m/min |
| Max Axis Speed Axially Parallel in Z | 30 m/min |
| Max Axis Speed of Q Axis | 3 m/min |
| Maximum Axis Speed Axially Parallel in X | 30 m/min |
| Maximum Axis Speed Axially Parallel in Z | 30 m/min |
| Maximum Axis Speed of Q Axis | 3 m/min |
| Max Axis Acceleration Axially Parallel in X | 1.5 m/s² |
| Max Axis Acceleration Axially Parallel in Z | 1.5 m/s² |
| Max Axis Acceleration of B Axis | 1.5 rad/s² |
| Positioning Accuracy of Linear Axes | 0.1 mm |
| Positioning Accuracy of Rotary Axes | 0.015 ° |
| Max Laser Output | 3200 W - 15000 W |
| Maximum Axis Acceleration Axially Parallel in X | 1.5 m/s2 |
| Maximum Axis Acceleration Axially Parallel in Z | 1.5 m/s2 |
| Maximum Axis Acceleration of B Axis | 1.5 rad/s2 |
| Maximum Laser Power | 2000 W - 8000 W |
| Available Lasers | TruDiode, TruDisk |
Specifications sourced from trumpf.com — verified 2026-03-28
Strengths & Limitations
Strengths
- CO2 lasers from 3,200 W to 15,000 W, or solid-state TruDiode and TruDisk lasers from 2,000 W to 8,000 W
- Q axis gives +/-25 mm of position correction at 3 m/min
- B axis range of +/-100 degrees with a positioning accuracy of 0.015 degrees
- Listed for steel, stainless steel, aluminum and non-ferrous metals from 0.1 mm
- X and Z axis speed of 30 m/min
Limitations
- X and Z travel is 300/500 mm, and no Y axis is listed
- Linear positioning accuracy is 0.1 mm
- The SeamLine seam tracking sensor is optional
- The upper thickness limit is given only as several mm
- Axis acceleration is 1.5 m/s²
Best For
Frequently Asked Questions
01
X, Z, B and Q. X and Z travel is listed as 300/500 mm, the B axis covers +/-100 degrees and the Q axis +/-25 mm. The Q axis is described as a position correction axis. No Y axis appears in the table.
02
Either a CO2 laser of 3,200 - 15,000 W or a solid-state laser of 2,000 - 8,000 W. The solid-state lasers named are the TruDiode and the TruDisk. The axis travel, speed and accuracy figures are the same for both.
03
X and Z run at 30 m/min with 1.5 m/s² of acceleration, and the Q axis at 3 m/min. Positioning accuracy is 0.1 mm for the linear axes and 0.015 degrees for the rotary axis.
04
Steel, stainless steel, aluminum and non-ferrous metals. The thickness range is given as 0.1 mm to several mm, with no exact upper limit, so ask Trumpf for the limit with the laser you are considering.
05
Seam tracking is listed with the SeamLine sensor, which is optional. The Q axis provides +/-25 mm of position correction at up to 3 m/min, which is the movement available for following a joint.
