Accurl MasterLINE X 3001.15

Q: How much does the Accurl MasterLINE X 3001.15 cost?

The price estimate for the Accurl MasterLINE X 3001.15 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accurl-masterline-x-3001-15#price; the request is passed to Accurl or an authorised dealer.

Specs verified 2026-10-05 · accurl.com Updated 2026-10-05

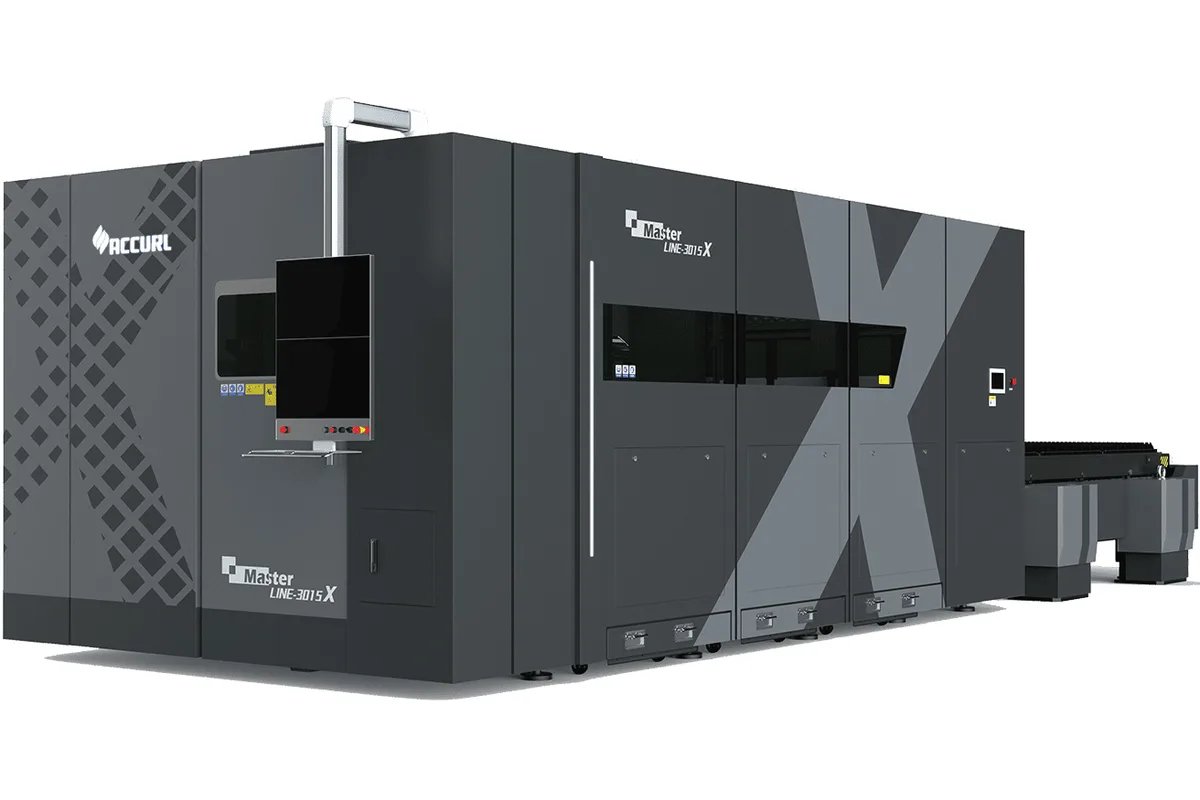

Accurl MasterLINE X series fiber laser cutting machine

Image: accurl.com, Accurl

Key Specifications

Accuracy

± 0.03 mm according to VDI/DGQ 3441

Repeatability

± 0.02 mm according to VDI/DGQ 3441

work area length

3,010 mm (118.5 in)

work area width

1,510 mm (59.4 in)

max workpiece weight

400 kg/m²

length incl peripherals

9,990 mm (393.3 in) (approximate)

How much does the Accurl MasterLINE X 3001.15 cost?

Price estimate

Uncertain

We do not have a price for the Accurl MasterLINE X 3001.15 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accurl MasterLINE X 3001.15 puts the fastest motion system of Accurl's X-Series on the smallest of its five table sizes. The work area is 3,010 mm (118.5 in) by 1,510 mm (59.4 in), traverse speed is up to 180,000 mm/min, and the table is rated at 400 kg/m².

Accurl calls the MasterLINE X the high-end machine of the platform, and on a 3 m table that translates into thin-sheet productivity. Short moves dominate a nest of small parts, so what counts is acceleration, and Accurl states that the ultra-light cast aluminium crossbeam allows accelerations of up to 3G. Positioning accuracy is ± 0.03 mm and repeatability ± 0.02 mm, according to VDI/DGQ 3441. The shuttle table extends or retracts in 20 seconds.

The same sheet size is available as the SmartLINE X 3001.15, which is listed at up to 140,000 mm/min and 300 kg/m² and comes only with the TWINCUT S80. The MasterLINE X adds the choice of the MSE SmartControl, a THERMACUT Ex-Trabeam cutting head and Eckelmann drives, and laser sources of up to 60 kW are offered for the series.

Installed, the cell is approximately 9,990 mm (393.3 in) long, 3,180 mm (125.2 in) wide and 2,680 mm (105.5 in) high including peripherals. The thickness table covers 3 kW to 30 kW, from 18 mm (0.71 in) to 50 mm (1.97 in) in mild steel; figures above 30 kW are on request. A bevel cutting head for cuts up to 45° is announced as a coming option.

Full Specifications

Parameter	Value
Work Area Length	3,010 mm (118.5 in)
Work Area Width	1,510 mm (59.4 in)
Max Workpiece Weight	400 kg/m²
Length Incl Peripherals	9,990 mm (393.3 in) (approximate)
Width Incl Peripherals	3,180 mm (125.2 in) (approximate)
Height Incl Peripherals	2,680 mm (105.5 in) (approximate)
Automatic Shuttle Table	Included as standard
Cutting Process	Fiber laser
Max Laser Source Power	60 kW
Traverse Speed	up to 180,000 mm/min
Positioning Accuracy	± 0.03 mm according to VDI/DGQ 3441
Repeatability	± 0.02 mm according to VDI/DGQ 3441
Xy Axis Drive	linear guides, driven on both sides and helical toothed racks
Z Axis Drive	rack
Gantry Type	ultra-light cast aluminium gantry
CNC Control	MSE SmartControl / TWINCUT S80
Main Control Panel	ergonomic 2 x 21.5" TFT multitouch panel
Operating System	Windows 11 LTSC / Windows 10 LTSC
Max Sheet Thickness Mild Steel	18 mm (0.71 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 50 mm (1.97 in) at 30 kW
Max Sheet Thickness Stainless Steel	10 mm (0.39 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Aluminium	12 mm (0.47 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Brass	6 mm (0.24 in) at 3 kW; 20 mm (0.79 in) at 12 kW; 25 mm (0.98 in) at 30 kW
Max Sheet Thickness Copper	5 mm (0.20 in) at 3 kW; 15 mm (0.59 in) at 12 kW; 15 mm (0.59 in) at 30 kW

Specifications sourced from accurl.com — verified 2026-10-05

Strengths & Limitations

Strengths

Traverse speed up to 180,000 mm/min, the highest in the X-Series tables
Accelerations of up to 3G stated for the aluminium crossbeam
± 0.02 mm repeatability according to VDI/DGQ 3441
Choice of MSE SmartControl or TWINCUT S80, and of two cutting heads
Shuttle table extends or retracts in 20 seconds

Limitations

Table rating of 400 kg/m², below the 550 kg/m² of the MasterLINE X 6001.20
The bevel cutting head is announced as coming soon, not available
Cutting thickness above 30 kW is given on request only
About 9,990 mm (393.3 in) of length for a 3,010 mm (118.5 in) work area

Best For

High-volume thin sheet on 3,000 x 1,500 mm format Nests of small parts where acceleration sets the cycle Shops wanting the MSE SmartControl on a small table Stainless and aluminium up to 40 mm (1.57 in) at 30 kW

Frequently Asked Questions

01 How fast is the MasterLINE X 3001.15?

Accurl lists a traverse speed of up to 180,000 mm/min and states that the T6061 aluminium crossbeam enables accelerations of up to 3G. The shuttle table needs 20 seconds to extend or retract between sheets.

02 What is the difference between the MasterLINE X 3001.15 and the SmartLINE X 3001.15?

Both have a 3,010 mm (118.5 in) by 1,510 mm (59.4 in) work area. The SmartLINE X 3001.15 is listed at up to 140,000 mm/min and 300 kg/m²; this machine at up to 180,000 mm/min and 400 kg/m², with a second control and cutting head option.

03 What floor space does the MasterLINE X 3001.15 need?

Approximately 9,990 mm (393.3 in) in length, 3,180 mm (125.2 in) in width and 2,680 mm (105.5 in) in height. Accurl states that the figure includes the laser source, the filter system, the cooler and the safety equipment.

04 Which laser powers are listed for the MasterLINE X 3001.15?

Sources of up to 60 kW are offered for the series. The published thickness table runs from 3 kW to 30 kW: 18 mm (0.71 in) mild steel at 3 kW, 30 mm (1.18 in) at 12 kW and 50 mm (1.97 in) at 30 kW. Above 30 kW Accurl quotes on request.
