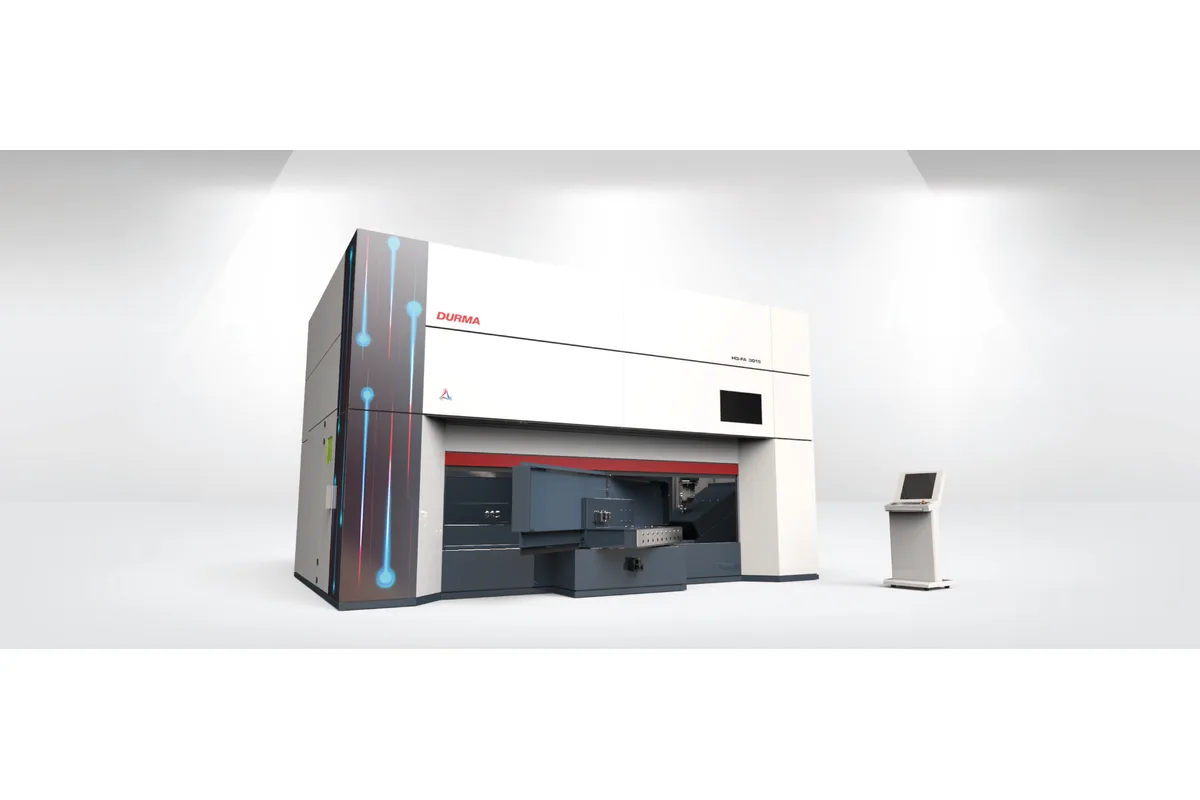

Durma HD-FA
Image: durmazlar.com.tr, Durma
Key Specifications
Accuracy
Repeatability
x axis travel
y axis travel
z axis travel
b axis range
How much does the Durma HD-FA cost?
Price estimate
We do not have a price for the Durma HD-FA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Unlike Durma's flat-bed lasers, the HD-FA is a 5 axis fiber laser for cutting formed, three-dimensional parts. The head moves 3,000 mm (118.1 in) in X, 1,500 mm (59.1 in) in Y and 650 mm (25.6 in) in Z, and tilts and turns on two rotary axes: B through ±135° and C through ±360° x n, meaning continuous rotation.
Durma names automotive work and other complex 3D parts as the purpose. Pressed panels, hydroformed tubes and deep-drawn housings are trimmed and pierced after forming, and that needs a head that can stay normal to a curved surface. The 650 mm (25.6 in) of Z stroke is what lets it reach over a tall part held in a fixture.
Parts are presented on a rotary table, so one side can be loaded while the other is cut. The door of that table is 4,000 mm (157.5 in) long. The machine itself measures 6,168 x 3,936 mm, h = 3,700 mm, weighs 16,000 kg (35,273 lb) and needs a secure area of 9,000 x 10,000 mm around it.
Maximum synchronous speed is 173 m/min with 17.3 m/s² of synchronous acceleration. Positional accuracy and repeatability are ±0.08 mm, wider than on the flat-bed machines, as is usual once two rotary axes are stacked on the linear ones. Cutting capacity is listed for two source powers. With 3 kW: 16 mm mild steel, 8 mm stainless steel and 8 mm aluminium. With 4 kW: 20 mm, 10 mm and 12 mm. Focus adjustment on the cutting head is automatic.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 1,500 mm (59.1 in) |
| Z Axis Travel | 650 mm (25.6 in) |
| B Axis Range | ±135° |
| C Axis Range | ±360° x n |
| Max Synchronous Speed | 173 m/min |
| Max Synchronous Acceleration | 17.3 m/s² |
| Positioning Accuracy | ±0.08 mm |
| Repeatability | ±0.08 mm |
| Machine Dimensions | 6,168 x 3,936 mm, h = 3,700 mm |
| Working Area | 9,000 x 10,000 mm (secure area) |
| Rotary Table Door Length | 4,000 mm (157.5 in) |
| Machine Weight | 16,000 kg (35,273 lb) |
| Cutting Capacity Mild Steel S235 | 3 kW: 16 mm; 4 kW: 20 mm |
| Cutting Capacity Stainless Steel 304 | 3 kW: 8 mm; 4 kW: 10 mm |
| Cutting Capacity Aluminium 5083 | 3 kW: 8 mm; 4 kW: 12 mm |
| Cutting Head Focus | Automatic |
Specifications sourced from durmazlar.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- Five axes: 3,000 mm (118.1 in) by 1,500 mm (59.1 in) by 650 mm (25.6 in) of travel with B ±135° and endless C rotation
- 173 m/min maximum synchronous speed and 17.3 m/s² synchronous acceleration
- Rotary table with a 4,000 mm (157.5 in) door for loading during cutting
- Cuts up to 20 mm mild steel and 12 mm aluminium with the 4 kW source
- Automatic focus on the cutting head
Limitations
- Positional accuracy and repeatability are ±0.08 mm
- Needs a 9,000 x 10,000 mm secure area and carries 16,000 kg (35,273 lb)
- Capacity is listed only for 3 kW and 4 kW sources
- Every part needs its own fixture, which adds preparation for short runs
Best For
Frequently Asked Questions
01
X stroke is 3,000 mm (118.1 in), Y stroke 1,500 mm (59.1 in) and Z stroke 650 mm (25.6 in). The B axis swivels ±135° and the C axis is given as ±360° x n. Maximum synchronous speed is 173 m/min.
02
Durma lists positional accuracy at ±0.08 mm and repeatability at ±0.08 mm. Its flat-bed HD-FN 3015 is listed at ±0.05 mm, so the tolerance band of the 5 axis machine is wider. That suits trimming of formed parts, where the part's own forming tolerance is usually larger.
03
The table gives two columns. With a 3 kW source: 16 mm mild steel, 8 mm stainless steel and 8 mm aluminium. With a 4 kW source: 20 mm mild steel, 10 mm stainless steel and 12 mm aluminium. Durma marks these as standard cutting parameters.
04
The machine size is 6,168 x 3,936 mm, h = 3,700 mm. Durma specifies a working area of 9,000 x 10,000 mm as the secure area, and the rotary table's door is 4,000 mm (157.5 in) long. Machine weight is 16,000 kg (35,273 lb).

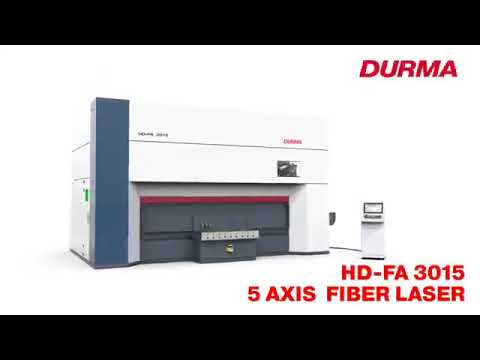

Videos
