Accurl Smart ECO SE-12030

Q: How much does the Accurl Smart ECO SE-12030 cost?

The price estimate for the Accurl Smart ECO SE-12030 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accurl-smart-eco-se-12030#price; the request is passed to Accurl or an authorised dealer.

Specs verified 2026-10-05 · accurl.com Updated 2026-10-05

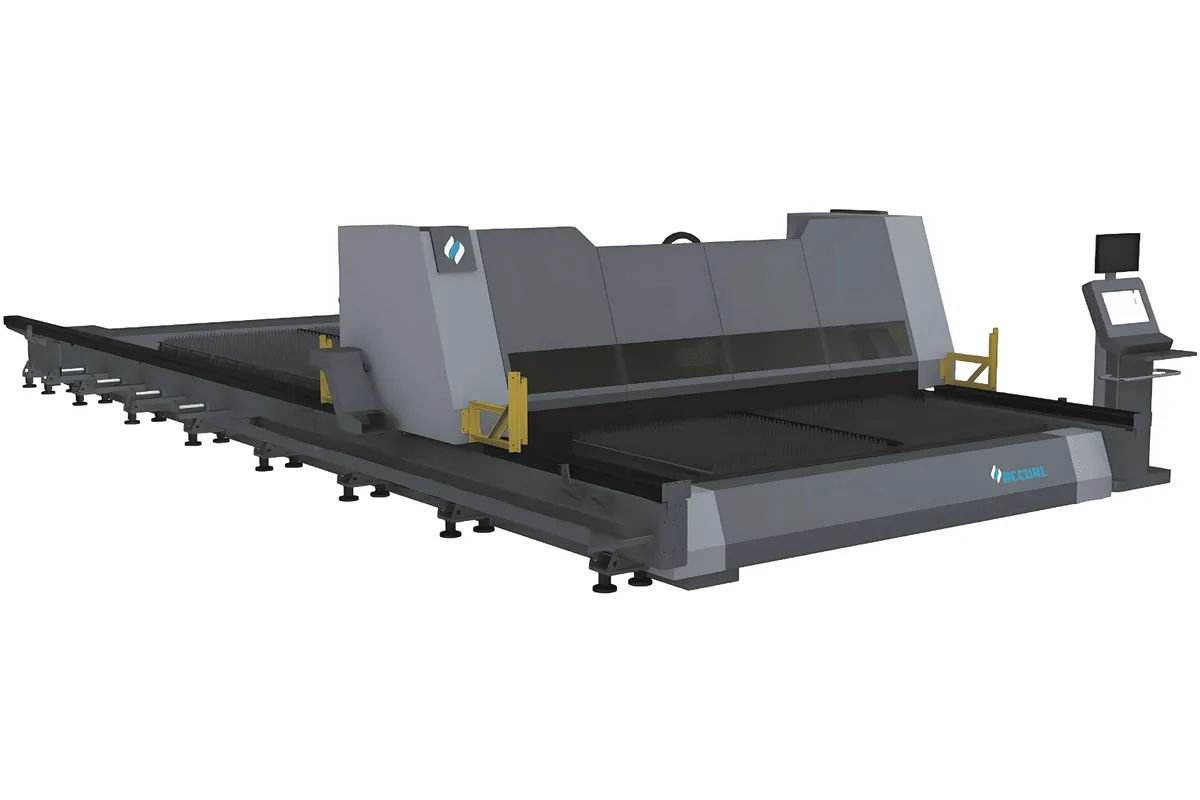

Accurl Smart ECO series large-format fiber laser cutting machine

Image: accurl.com, Accurl

Key Specifications

work area length

12,000 mm (472.4 in)

work area width

3,000 mm (118.1 in)

max workpiece weight

750 kg/m²

automatic shuttle table

Included as standard

cutting process

Fiber laser

max laser source power

60 kW

How much does the Accurl Smart ECO SE-12030 cost?

Price estimate

Uncertain

We do not have a price for the Accurl Smart ECO SE-12030 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Twelve metres by three is the plate size the Accurl Smart ECO SE-12030 is laid out for: its work area is 12,000 mm (472.4 in) long and 3,000 mm (118.1 in) wide. It is the second of the four standard Smart ECO models.

Compared with the faster enclosed lasers in Accurl's range, the Smart ECO is a steady machine. Its X/Y maximum linkage acceleration is 0.8g and its maximum linkage speed 80 m/min. On thick plate that is no handicap, because the cutting feed is set by the material, and the gantry spends its time cutting instead of repositioning. A buyer whose work is mostly thin sheet in long nests would feel the lower acceleration on every corner and every pierce move.

Load capacity suits the purpose. The table is rated at 750 kg/m², and the thickness table climbs with source power from 25 mm (0.98 in) of mild steel at 6 kW to 30 mm (1.18 in) at 12 kW and 50 mm (1.97 in) at 30 kW. Stainless and aluminium are listed at 40 mm (1.57 in) at 30 kW. For outputs above 30 kW Accurl says maximum thickness is given on request because it depends on the required quality.

The structure follows the pattern of the line: a steel crossbeam, helical toothed racks with drives on both sides for X and Y, a rack-driven Z axis. Accuracy is stated as ±0.05 mm/m. Accurl lists automatic nozzle change among the features, which on a bed this long saves the operator a walk to the head each time the nozzle size changes.

Full Specifications

Parameter	Value
Work Area Length	12,000 mm (472.4 in)
Work Area Width	3,000 mm (118.1 in)
Max Workpiece Weight	750 kg/m²
Automatic Shuttle Table	Included as standard
Cutting Process	Fiber laser
Max Laser Source Power	60 kW
Xy Max Linkage Speed	80 m/min
Xy Axis Positioning Accuracy	±0.05 mm/m
Xy Max Linkage Acceleration	0.8g
Xy Axis Drive	linear guides, driven on both sides and helical toothed racks
Z Axis Drive	rack
Gantry Type	steel crossbeam with intelligent lubrication system
CNC Control	Backoff Control CNC System
Main Control Panel	ergonomic 2 x 21.5" TFT multitouch panel
Operating System	Windows 11 LTSC / Windows 10 LTSC
Max Sheet Thickness Mild Steel	25 mm (0.98 in) at 6 kW; 30 mm (1.18 in) at 12 kW; 50 mm (1.97 in) at 30 kW
Max Sheet Thickness Stainless Steel	20 mm (0.79 in) at 6 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Aluminium	20 mm (0.79 in) at 6 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Brass	15 mm (0.59 in) at 6 kW; 20 mm (0.79 in) at 12 kW; 25 mm (0.98 in) at 30 kW
Max Sheet Thickness Copper	10 mm (0.39 in) at 6 kW; 15 mm (0.59 in) at 12 kW; 15 mm (0.59 in) at 30 kW

Specifications sourced from accurl.com — verified 2026-10-05

Strengths & Limitations

Strengths

Work area sized for 12 m plate: 12,000 mm (472.4 in) by 3,000 mm (118.1 in)
Table rating of 750 kg/m² for full plates
50 mm (1.97 in) mild steel at 30 kW; 40 mm (1.57 in) stainless and aluminium
Automatic nozzle change is among the listed features
Laser sources of up to 60 kW for the series

Limitations

Linkage acceleration of 0.8g limits output on thin sheet
Positioning accuracy is given as ±0.05 mm/m, so the error grows with distance
Maximum thickness above 30 kW is only quoted on request
No verified overall dimensions are published for this model

Best For

12 m plates cut in one set-up Thick mild steel at 12 kW to 30 kW Structural parts in long lengths Operations where cutting time, not rapid moves, dominates

Frequently Asked Questions

01 How long a plate fits the Smart ECO SE-12030?

The work area is 12,000 mm (472.4 in) in length and 3,000 mm (118.1 in) in width. The length of standard models can be extended by 3,000 mm or 6,000 mm segments up to a maximum of 26,000 mm, according to Accurl's footnote.

02 What acceleration and speed does the Smart ECO SE-12030 reach?

The table gives an X/Y maximum linkage acceleration of 0.8g and an X/Y maximum linkage speed of 80 m/min. These apply to the whole Smart ECO line and do not change with the length of the bed.

03 What is the table load of the Smart ECO SE-12030?

The maximum permissible workpiece weight is 750 kg/m². That figure, not the laser, decides how thick a full plate may be, and Accurl's footnote says to select the sheet metal format according to it.

04 How thick can the Smart ECO SE-12030 cut at 12 kW?

At 12 kW Accurl lists 30 mm (1.18 in) in mild steel, stainless steel and aluminium, 20 mm (0.79 in) in brass and 15 mm (0.59 in) in copper. At 30 kW mild steel rises to 50 mm (1.97 in).
