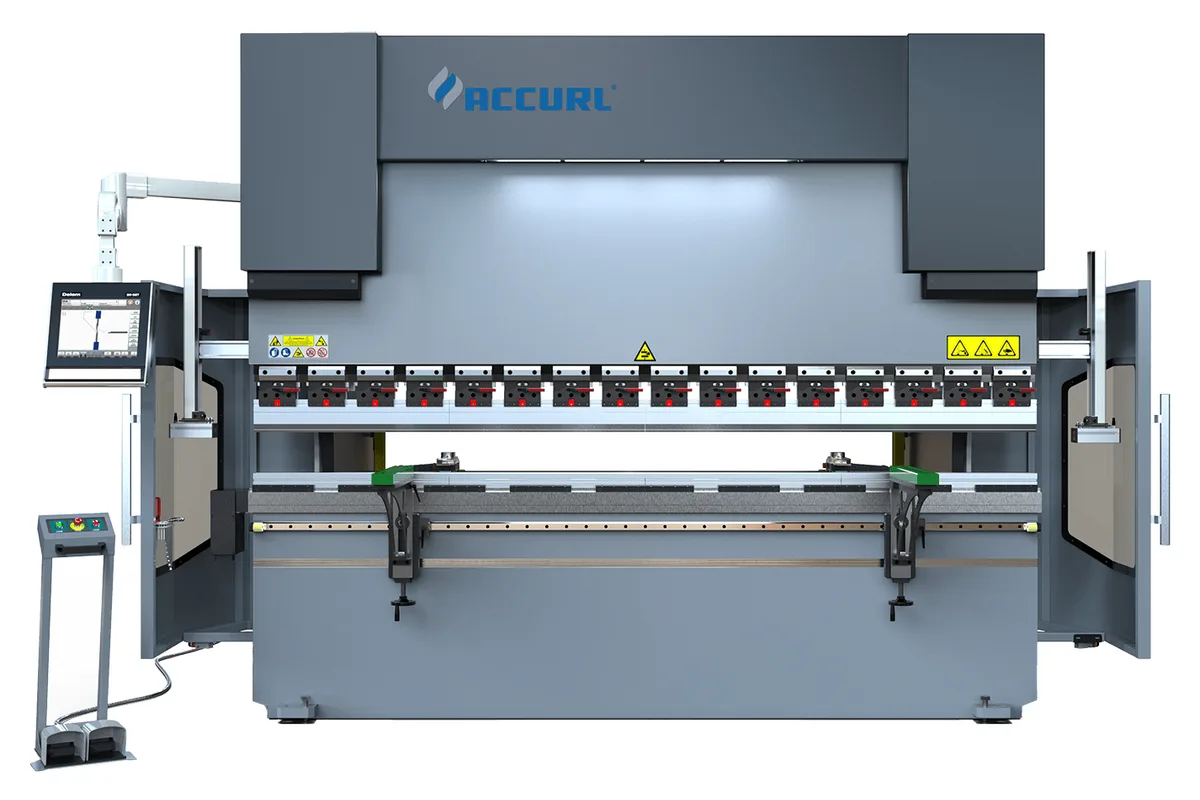

Accurl EURO-PRO B 60400
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 60400 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 60400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Six-metre bending in the EURO-PRO B series starts with the Accurl EURO-PRO B 60400. There is no lighter six-metre model in the table: the first one already has 4,000 kN. Bending length is 6,000 mm (236.2 in).
The distance between the side frames is 5,050 mm (198.8 in). That is a wide clear opening, and with the 450 mm (17.7 in) gap it lets a fabricator fold the long edges of large plates without turning them.
Size brings mass. The machine is listed at 38,000 kg (83,774 lb) and 6,400 mm (252 in) in length, with a width of 2,300 mm (90.6 in) and a height of 3,670 mm (144.5 in). Transport and unloading have to be arranged for a single piece of that weight.
The drive is the 30 kW (40.2 hp) unit of the 4,000 kN group. Approach is 100 mm/s, bending 8 mm/s and return 80 mm/s, with a stroke of 320 mm (12.6 in).
Over six metres the beam and table deflect more than on any shorter machine, so the crowning does real work here. Accurl states that the EURO-PRO comes standard with CNC crowning, and lists CNC motorized wave crowning in the standard equipment.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 4,000 kN |
| Bending Length | 6,000 mm (236.2 in) |
| Distance Between Side Frames | 5,050 mm (198.8 in) |
| Gap | 450 mm (17.7 in) |
| Daylight Opening | 400 mm (15.7 in) |
| Stroke | 320 mm (12.6 in) |
| Table Height | 880 mm (34.6 in) |
| Table Width | 200 mm (7.9 in) |
| Approach Speed | 100 mm/s |
| Bending Speed | 8 mm/s |
| Return Speed | 80 mm/s |
| Motor Power | 30 kW (40.2 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 6,400 mm (252 in) |
| Machine Width | 2,300 mm (90.6 in) |
| Machine Height | 3,670 mm (144.5 in) |
| Machine Weight | 38,000 kg (83,774 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,000 mm (236.2 in) bending length with 4,000 kN
- 5,050 mm (198.8 in) clear between the side frames
- CNC crowning is standard, which matters most at this length
- Table height of 880 mm (34.6 in)
Limitations
- 38,000 kg (83,774 lb) to transport, unload and found
- 100 mm/s approach and 80 mm/s return
- Daylight is listed as 400 mm (15.7 in)
- Backgauge stroke of 750 mm (29.5 in); the EURO-PRO B 60500 has 1,000 mm (39.4 in)
Best For
Frequently Asked Questions
01
Three. The Accurl EURO-PRO B 60400 has 4,000 kN, the EURO-PRO B 60500 has 5,000 kN and the EURO-PRO B 60600 has 6,000 kN. All bend 6,000 mm (236.2 in).
02
The side frames are 5,050 mm (198.8 in) apart. Parts longer than that, up to the bending length, are limited by the 450 mm (17.7 in) gap.
03
The table gives 6,400 mm (252 in) in length, 2,300 mm (90.6 in) in width and 3,670 mm (144.5 in) in height, at a weight of 38,000 kg (83,774 lb). Ask Accurl how the machine is shipped.
04
The backgauge stroke is 750 mm (29.5 in) and the standard unit is a two-axis BGA-2. For long parts gauged at two points Accurl offers a BGA-6 with X1, X2, R1, R2, Z1 and Z2 as an option.
