Accurl EURO-PRO B 32220

Specs verified 2026-10-05 · accurl.com Updated 2026-10-05

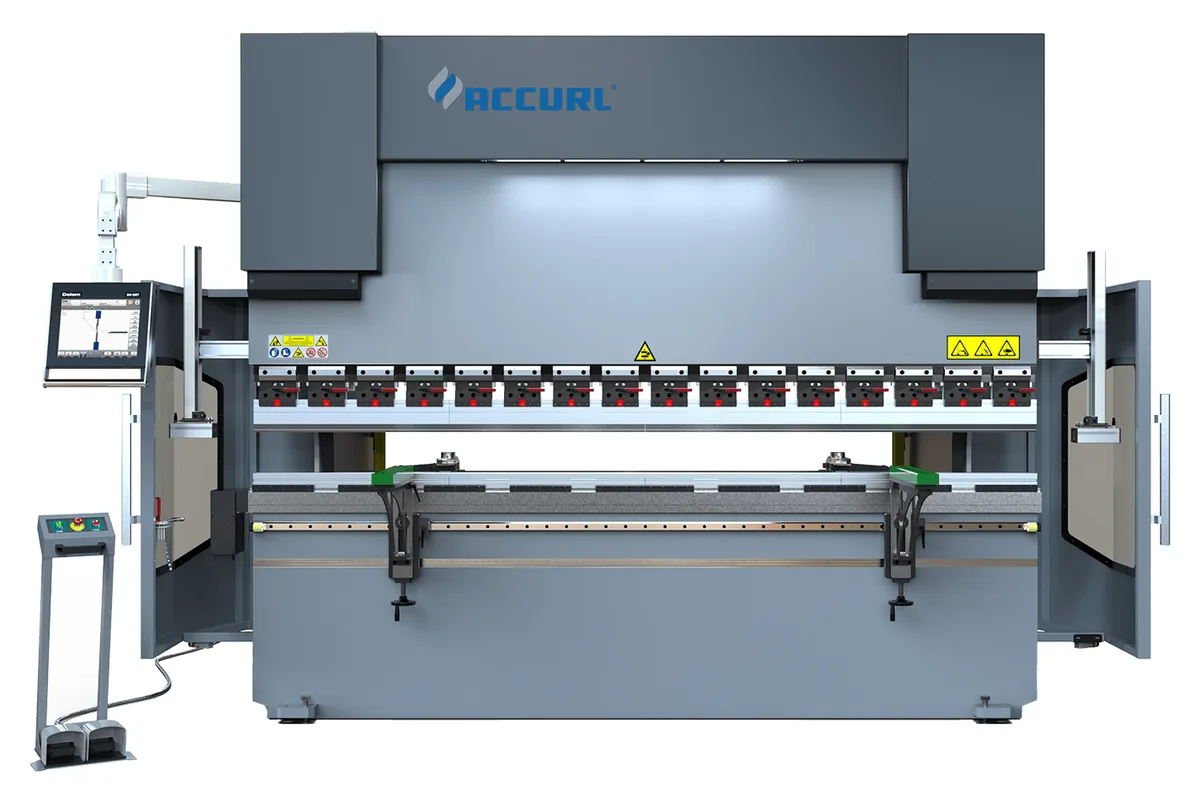

Image: accurl.com, Accurl

Key Specifications

bending force

2,200 kN

bending length

3,200 mm (126 in)

distance between side frames

2,700 mm (106.3 in)

gap

400 mm (15.7 in)

daylight opening

470 mm (18.5 in)

stroke

200 mm (7.9 in)

How much does the Accurl EURO-PRO B 32220 cost?

Price estimate

Uncertain

We do not have a price for the Accurl EURO-PRO B 32220 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Weight tells the story of the Accurl EURO-PRO B 32220. At 15,000 kg (33,069 lb) it is half as heavy again as the 10,000 kg (22,046 lb) EURO-PRO B 32175, for a rise in capacity from 1,750 kN to 2,200 kN. Accurl has built a different, heavier frame for this size.

The working parts follow. The table widens to 140 mm (5.5 in) and the daylight opens to 470 mm (18.5 in). The motor goes up to 18.5 kW (24.8 hp), which is why the ram holds 180 mm/s on approach and 140 mm/s on return despite the added force.

Bending length is 3,200 mm (126 in) with 2,700 mm (106.3 in) between the frames. The stroke has not changed: 200 mm (7.9 in). That is the figure to weigh up. A wider daylight helps with tall tools, but the open height available for withdrawing a formed part is still governed by the stroke.

The footprint is no larger than that of the light three-metre machines, at 4,200 mm (165.4 in) by 1,800 mm (70.9 in). Height is 2,900 mm (114.2 in). Check the floor loading rather than the floor area: the mass has grown, the base has not.

Full Specifications

Parameter	Value
Bending Force	2,200 kN
Bending Length	3,200 mm (126 in)
Distance Between Side Frames	2,700 mm (106.3 in)
Gap	400 mm (15.7 in)
Daylight Opening	470 mm (18.5 in)
Stroke	200 mm (7.9 in)
Table Height	950 mm (37.4 in)
Table Width	140 mm (5.5 in)
Approach Speed	180 mm/s
Bending Speed	10 mm/s
Return Speed	140 mm/s
Motor Power	18.5 kW (24.8 hp)
Backgauge Stroke	750 mm (29.5 in)
Machine Length	4,200 mm (165.4 in)
Machine Width	1,800 mm (70.9 in)
Machine Height	2,900 mm (114.2 in)
Machine Weight	15,000 kg (33,069 lb)

Specifications sourced from accurl.com — verified 2026-10-05

Strengths & Limitations

Strengths

2,200 kN on 3,200 mm (126 in)
18.5 kW (24.8 hp) motor holds the approach at 180 mm/s
Table width of 140 mm (5.5 in) for larger dies
Footprint of 4,200 mm (165.4 in) by 1,800 mm (70.9 in)

Limitations

Stroke is 200 mm (7.9 in); the EURO-PRO B 32250 has 250 mm (9.8 in)
15,000 kg (33,069 lb) on a small footprint concentrates the floor load
Height of 2,900 mm (114.2 in)

Best For

Plate parts with shallow flanges Heavy brackets, gussets and wear plates Three-metre plate work in a tight bay

Frequently Asked Questions

01 What changes between the EURO-PRO B 32175 and the EURO-PRO B 32220?

The EURO-PRO B 32175 has 1,750 kN, an 11 kW (14.8 hp) motor, 430 mm (16.9 in) of daylight and a 100 mm (3.9 in) table. This model has 2,200 kN, 18.5 kW (24.8 hp), 470 mm (18.5 in) and 140 mm (5.5 in).

02 How heavy is the Accurl EURO-PRO B 32220?

15,000 kg (33,069 lb). The catalogue gives the length as 4,200 mm (165.4 in), the width as 1,800 mm (70.9 in) and the height as 2,900 mm (114.2 in).

03 What is the working height?

The table height is 950 mm (37.4 in). The four-metre EURO-PRO B 40220 of the same capacity is listed with a table height of 1,050 mm (41.3 in), so the two are not interchangeable in a line.

04 What safety equipment does Accurl list?

Standard items are rear safety barriers of Category IV and a front AKAS LC-II F safety laser of Category IV or DSP safety. A CE Defender LazerSafe LZS004 with safety covers is optional equipment.
