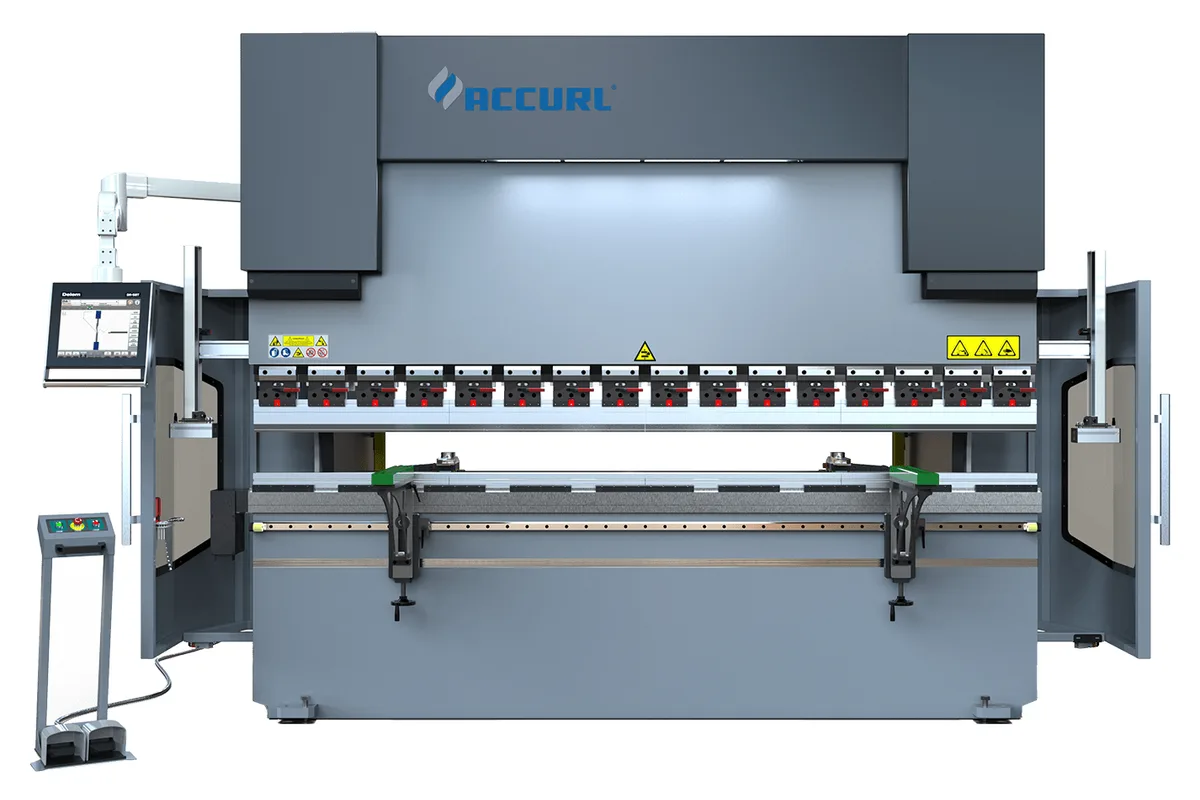

Accurl EURO-PRO B 40320
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 40320 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 40320 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO-PRO B 40320 brings 3,200 kN to a bending length of 4,000 mm (157.5 in). It is the middle one of three machines with this capacity, between a three-metre and a five-metre version.
A 300 mm (11.8 in) stroke and 560 mm (22 in) of daylight give it the tool space that plate work needs. The side frames are 3,300 mm (129.9 in) apart with a gap of 400 mm (15.7 in).
The ram moves at 120 mm/s on approach and 85 mm/s on return. In the bend the limit is 8 mm/s. With thick material that is seldom a restriction, since the operator is holding a heavy part and wants a controlled bend.
Two things in the specification should be raised with the maker. First, the weight is printed as 20,000 kg (44,092 lb), which is also the figure given for the shorter EURO-PRO B 30320. A longer machine of equal capacity would normally be heavier. Second, the motor is 22 kW (29.5 hp) here, while the five-metre EURO-PRO B 50320 is listed with 18.5 kW (24.8 hp).
Outline dimensions are 4,900 mm (192.9 in) by 2,150 mm (84.6 in), and the height is 3,360 mm (132.3 in). For gauging long plate parts, the optional BGA-6 backgauge has separate X and R axes for each finger.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 3,200 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Distance Between Side Frames | 3,300 mm (129.9 in) |
| Gap | 400 mm (15.7 in) |
| Daylight Opening | 560 mm (22 in) |
| Stroke | 300 mm (11.8 in) |
| Table Height | 1,160 mm (45.7 in) |
| Table Width | 180 mm (7.1 in) |
| Approach Speed | 120 mm/s |
| Bending Speed | 8 mm/s |
| Return Speed | 85 mm/s |
| Motor Power | 22 kW (29.5 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,900 mm (192.9 in) |
| Machine Width | 2,150 mm (84.6 in) |
| Machine Height | 3,360 mm (132.3 in) |
| Machine Weight | 20,000 kg (44,092 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,200 kN over 4,000 mm (157.5 in)
- 560 mm (22 in) daylight with a 300 mm (11.8 in) stroke
- 3,300 mm (129.9 in) between the side frames
- CNC motorized wave crowning as standard on a long, heavily loaded beam
Limitations
- Approach of 120 mm/s and return of 85 mm/s
- Printed weight of 20,000 kg (44,092 lb) equals the three-metre model and needs confirming
- Working table at 1,160 mm (45.7 in)
- Backgauge stroke of 750 mm (29.5 in)
Best For
Frequently Asked Questions
01
Three. The EURO-PRO B 30320 bends 3,200 mm (126 in), this model 4,000 mm (157.5 in) and the EURO-PRO B 50320 bends 5,000 mm (196.9 in).
02
The table prints 20,000 kg (44,092 lb). The five-metre EURO-PRO B 50320 is printed at 26,000 kg (57,319 lb). Have the weight confirmed for this size before ordering a foundation.
03
1,160 mm (45.7 in), with a width of 180 mm (7.1 in). At that height most shops use a crane or the optional sheet following system to present heavy plate.
04
A DELEM DA-66T CNC control unit with 2D graphics is standard, listed with 5 axis CNC. The DELEM DA69T and the ModEva Premium appear under optional equipment.
