Accurl EURO-PRO B 50400

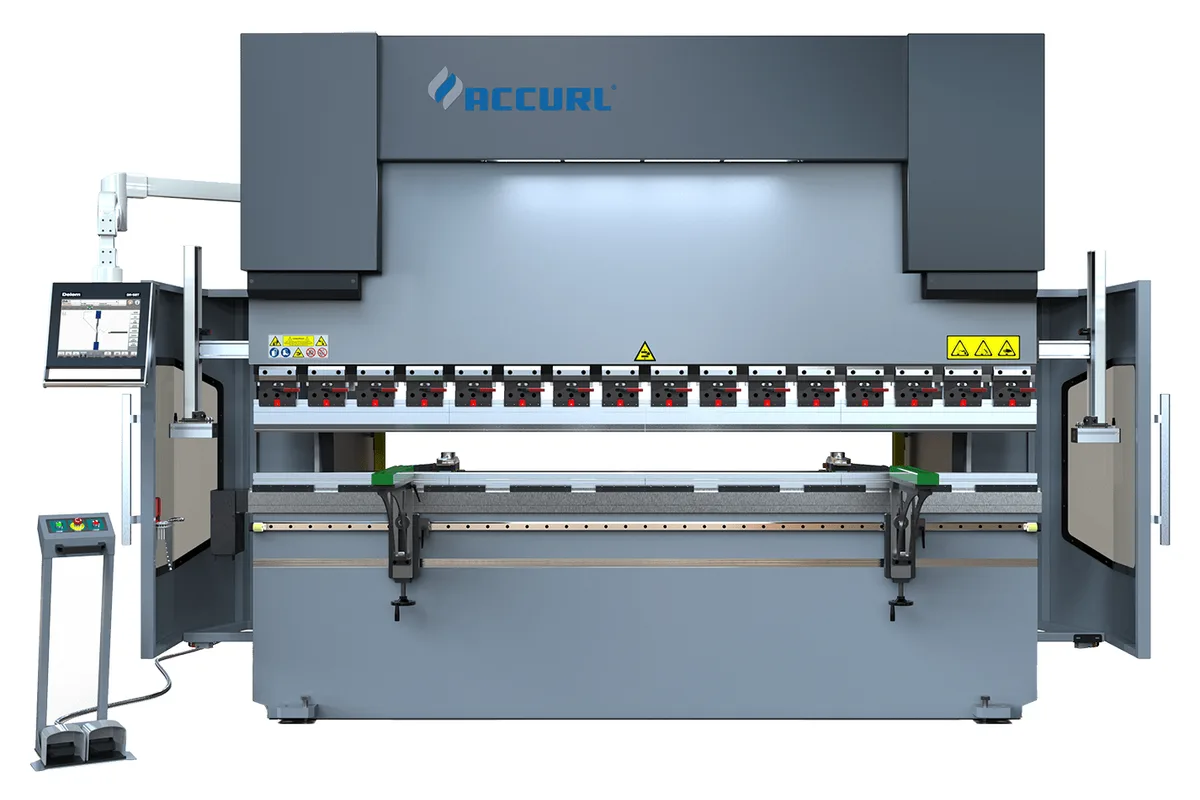

Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 50400 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 50400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Heavy plate on five metres: the Accurl EURO-PRO B 50400 has 4,000 kN on a bending length of 5,000 mm (196.9 in). It weighs 32,000 kg (70,547 lb).
Who needs this size? Builders of tipper bodies, crane booms, masts and long wear liners, where the part is both thick and longer than a four-metre bed. The side frames are 4,050 mm (159.4 in) apart and have a gap of 450 mm (17.7 in), so wide plates can be fed through or run past the frames.
Against the lighter five-metre machine, the EURO-PRO B 50320 with 3,200 kN, this model has a longer stroke, 320 mm (12.6 in), and a lower table at 880 mm (34.6 in). The motor is 30 kW (40.2 hp).
Approach speed is 100 mm/s, a step down from the 120 mm/s of the EURO-PRO B 40400 on the shorter bed. Bending runs at 8 mm/s and the ram returns at 80 mm/s. Listed daylight is 400 mm (15.7 in).
Plan the building around it. The machine is 5,300 mm (208.7 in) long, 2,250 mm (88.6 in) wide and 3,600 mm (141.7 in) high. A machine of this mass needs its foundation designed from the maker's drawing.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 4,000 kN |
| Bending Length | 5,000 mm (196.9 in) |
| Distance Between Side Frames | 4,050 mm (159.4 in) |
| Gap | 450 mm (17.7 in) |
| Daylight Opening | 400 mm (15.7 in) |
| Stroke | 320 mm (12.6 in) |
| Table Height | 880 mm (34.6 in) |
| Table Width | 200 mm (7.9 in) |
| Approach Speed | 100 mm/s |
| Bending Speed | 8 mm/s |
| Return Speed | 80 mm/s |
| Motor Power | 30 kW (40.2 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 5,300 mm (208.7 in) |
| Machine Width | 2,250 mm (88.6 in) |
| Machine Height | 3,600 mm (141.7 in) |
| Machine Weight | 32,000 kg (70,547 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 kN across 5,000 mm (196.9 in)
- 4,050 mm (159.4 in) between the side frames with a 450 mm (17.7 in) gap
- 320 mm (12.6 in) stroke for deep sections
- Table at 880 mm (34.6 in), lower than on the EURO-PRO B 50320
Limitations
- Approach speed of 100 mm/s
- Listed daylight of 400 mm (15.7 in) limits tool height
- 32,000 kg (70,547 lb) and 3,600 mm (141.7 in) high
- Backgauge stroke of 750 mm (29.5 in)
Best For
Frequently Asked Questions
01
32,000 kg (70,547 lb) by the specification table. The four-metre EURO-PRO B 40400 is listed at 27,000 kg (59,524 lb) and the six-metre EURO-PRO B 60400 at 38,000 kg (83,774 lb).
02
Fast approach is 100 mm/s, maximum bending speed 8 mm/s and return speed 80 mm/s. The 30 kW (40.2 hp) motor is listed with a stand-by function for an energy-saving drive.
03
The EURO-PRO B 50320 has 3,200 kN, a 300 mm (11.8 in) stroke, a 400 mm (15.7 in) gap and weighs 26,000 kg (57,319 lb). This model has 4,000 kN, a 320 mm (12.6 in) stroke and a 450 mm (17.7 in) gap.
04
The machine itself is 3,600 mm (141.7 in) high. Add the clearance your crane needs to lift the machine in and to change heavy tooling afterwards.
