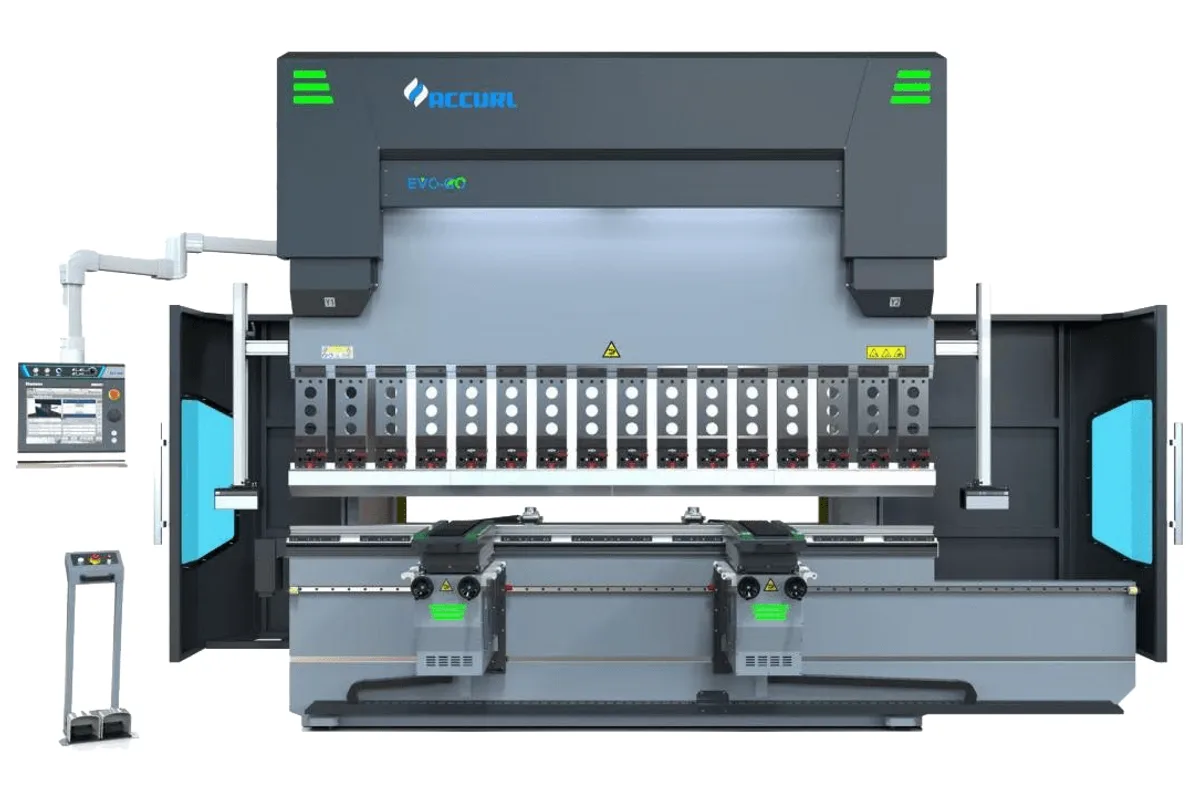

Accurl EURO GENIUS B32175H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B32175H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B32175H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO GENIUS B32175H is the mid-range three-metre machine of the series, rated 1,750 kN over 3,200 mm (126 in) with a 15 kW (20.1 hp) motor. The standard equipment list includes a stand-by function for an energy-saving drive.
From this size on the series is no longer at its top speed. Approach is 190 mm/s and return 160 mm/s. The difference from the lighter models is small on approach and more noticeable on the way up.
What the buyer gets in exchange is a real plate capability on a three-metre bed, in a machine of 11,500 kg (25,353 lb). The frame dimensions do not change: throat depth 450 mm (17.7 in), daylight 550 mm (21.7 in), stroke 300 mm (11.8 in).
The control is a DELEM DA-66T with 2D graphics, and the ram is positioned on the Y1 and Y2 axes independently. Crowning is CNC motorized. For angle control Accurl lists a height adjustable laser angle measurement system as an option.
Outline dimensions are 4,290 mm (168.9 in) by 1,780 mm (70.1 in) by 3,000 mm (118.1 in) high. Three metres of headroom is the figure to check in an older building.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,750 kN |
| Bending Length | 3,200 mm (126 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 550 mm (21.7 in) |
| Stroke | 300 mm (11.8 in) |
| Approach Speed | 190 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 160 mm/s |
| Motor Power | 15 kW (20.1 hp) |
| Backgauge Stroke | 800 mm (31.5 in) |
| Machine Length | 4,290 mm (168.9 in) |
| Machine Width | 1,780 mm (70.1 in) |
| Machine Height | 3,000 mm (118.1 in) |
| Machine Weight | 11,500 kg (25,353 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,750 kN on a 3,200 mm (126 in) bed
- 15 kW (20.1 hp) motor with stand-by function
- 190 mm/s approach speed with 0-10 mm/s bending
- 11,500 kg (25,353 lb), moderate for the capacity
Limitations
- Return speed of 160 mm/s, below the 180 mm/s of the EURO GENIUS B32135H
- Height of 3,000 mm (118.1 in)
- Stroke stays at 300 mm (11.8 in); the 350 mm (13.8 in) stroke begins with the EURO GENIUS B32250H
Best For
Frequently Asked Questions
01
Fast approach is 190 mm/s, maximum bending speed 0-10 mm/s and return speed 160 mm/s. The backgauge is servo driven according to Accurl's description of the series.
02
Two. The EURO GENIUS B40175H has 1,750 kN over 4,000 mm (157.5 in) and the EURO GENIUS B60175H over 6,000 mm (236.2 in). All three use a 15 kW (20.1 hp) motor.
03
3,000 mm (118.1 in) by the catalogue. Length is 4,290 mm (168.9 in) and width 1,780 mm (70.1 in). Crane hook height for installation has to be added to that.
04
CNC motorized wave crowning is standard. Accurl lists a height adjustable laser angle measurement system among the optional equipment, together with hydraulic and pneumatic tool clamping systems.
