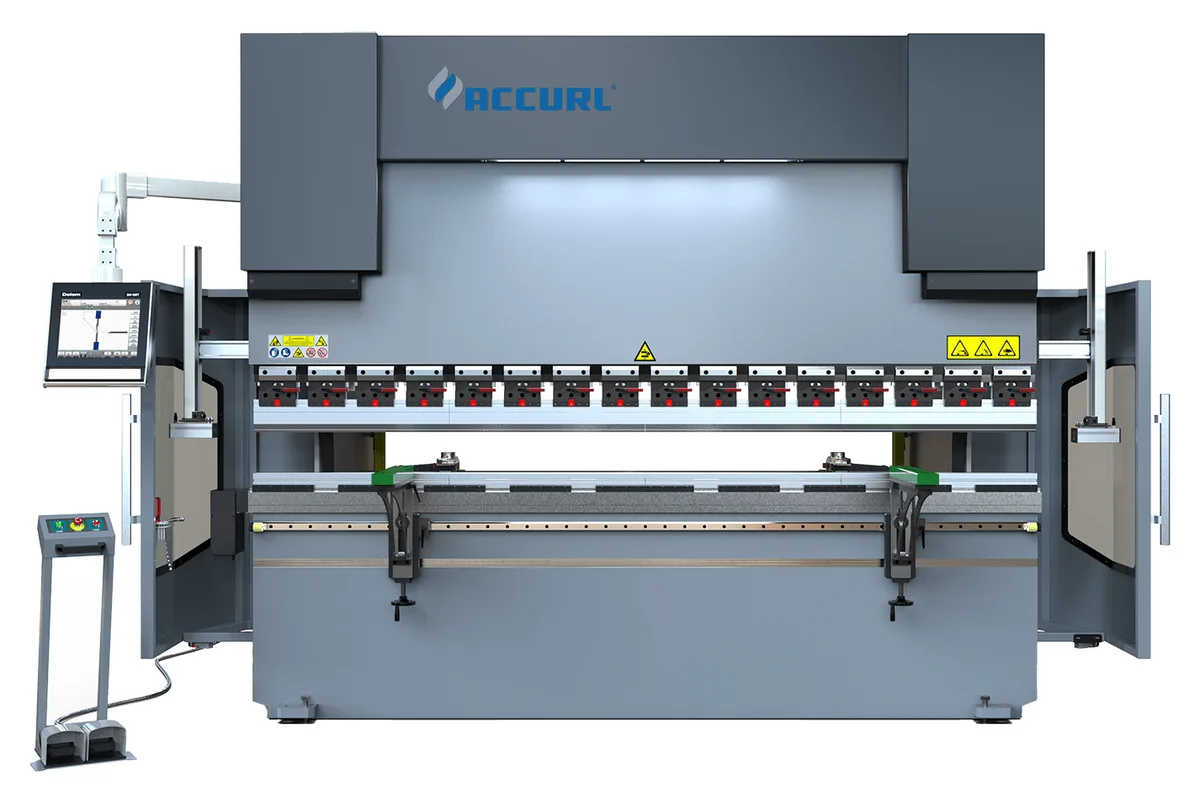

Accurl EURO-PRO B 32110
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 32110 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 32110 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With the Accurl EURO-PRO B 32110 the series moves from its two small frames to the full-size one. Capacity is 1,100 kN on a bending length of 3,200 mm (126 in), and nearly every dimension of the working space grows with it.
Compare the opening with the model below it: the EURO-PRO B 2563 has a 370 mm (14.6 in) gap, 350 mm (13.8 in) of daylight and a table 80 mm (3.1 in) wide. Here the gap is 400 mm (15.7 in), daylight 430 mm (16.9 in) and the table 100 mm (3.9 in) wide, at a working height of 940 mm (37 in). The stroke is unchanged at 200 mm (7.9 in).
The side frames stand 2,700 mm (106.3 in) apart, so a sheet of that width can pass through the machine for a deep bend.
None of this slows the ram. Approach stays at 200 mm/s, bending at 10 mm/s, return at 160 mm/s. The motor is 7.5 kW (10.1 hp).
Buyers should be clear about the rating. On three metres, 1,100 kN is for sheet metal work: cabinets, covers, light channel. The weight is 8,000 kg (17,637 lb), and the outline is 4,200 mm (165.4 in) by 1,800 mm (70.9 in) by 2,630 mm (103.5 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,100 kN |
| Bending Length | 3,200 mm (126 in) |
| Distance Between Side Frames | 2,700 mm (106.3 in) |
| Gap | 400 mm (15.7 in) |
| Daylight Opening | 430 mm (16.9 in) |
| Stroke | 200 mm (7.9 in) |
| Table Height | 940 mm (37 in) |
| Table Width | 100 mm (3.9 in) |
| Approach Speed | 200 mm/s |
| Bending Speed | 10 mm/s |
| Return Speed | 160 mm/s |
| Motor Power | 7.5 kW (10.1 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,200 mm (165.4 in) |
| Machine Width | 1,800 mm (70.9 in) |
| Machine Height | 2,630 mm (103.5 in) |
| Machine Weight | 8,000 kg (17,637 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,200 mm (126 in) bending length with 2,700 mm (106.3 in) between the side frames
- Approach of 200 mm/s and return of 160 mm/s
- 430 mm (16.9 in) daylight and a 400 mm (15.7 in) gap
- 7.5 kW (10.1 hp) motor of efficiency class IE3
- DELEM DA-66T control with Delem Profile-TL offline software as standard
Limitations
- 1,100 kN over 3,200 mm (126 in) leaves little reserve for plate
- Stroke of 200 mm (7.9 in); longer strokes begin with the EURO-PRO B 32250 at 250 mm (9.8 in)
- Standard backgauge has two axes, X and R
Best For
Frequently Asked Questions
01
3,200 mm (126 in), with 2,700 mm (106.3 in) between the side frames. Bending capacity is 1,100 kN. The gap in the frames is 400 mm (15.7 in) for parts that run past them.
02
Accurl lists a fast approach speed of 200 mm/s, a maximum bending speed of 10 mm/s and a return speed of 160 mm/s. These are the top figures of the series and they hold up to the EURO-PRO B 40135.
03
Yes. The EURO-PRO B 40110 has 1,100 kN on 4,000 mm (157.5 in), uses the same 7.5 kW (10.1 hp) motor and weighs 9,500 kg (20,944 lb).
04
8,000 kg (17,637 lb). Its length is 4,200 mm (165.4 in), its width 1,800 mm (70.9 in) and its height 2,630 mm (103.5 in), each marked as approximate in the catalogue.
