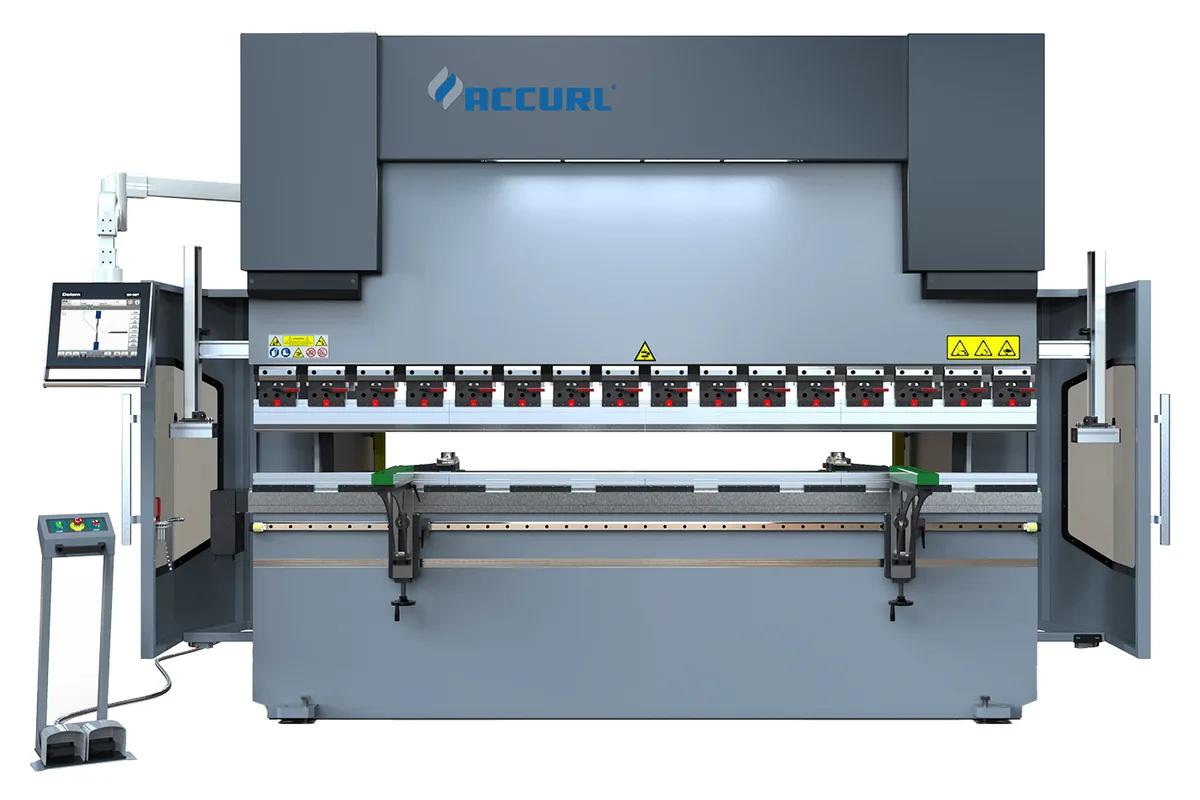

Accurl EURO-PRO B 40110
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 40110 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 40110 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Four metres at the lowest force Accurl offers on that length: the Accurl EURO-PRO B 40110 has a bending length of 4,000 mm (157.5 in) and a capacity of 1,100 kN. Length is the point of this model. Force is not.
Think of the parts that are long and thin. Roof edge trim, facade cassettes, shelving uprights, light box sections for vehicle bodies. They need the bed, a straight bend from end to end, and a ram that does not waste time. The catalogue covers the second requirement with CNC motorized wave crowning, which is standard on the series, and the third with a 200 mm/s approach and a 160 mm/s return.
The frames are 3,300 mm (129.9 in) apart. The opening is 430 mm (16.9 in) of daylight with a 200 mm (7.9 in) stroke and a 400 mm (15.7 in) gap, as on the three-metre EURO-PRO B 32110. Motor power is also the same, 7.5 kW (10.1 hp).
Handling long, floppy sheet is the practical difficulty at this size. Sheet metal frontal supports are on the standard list; the AP3-AP4 sheet following system is an option.
The machine weighs 9,500 kg (20,944 lb) and is 4,800 mm (189 in) long, 1,800 mm (70.9 in) wide and 2,700 mm (106.3 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,100 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Distance Between Side Frames | 3,300 mm (129.9 in) |
| Gap | 400 mm (15.7 in) |
| Daylight Opening | 430 mm (16.9 in) |
| Stroke | 200 mm (7.9 in) |
| Table Height | 940 mm (37 in) |
| Table Width | 100 mm (3.9 in) |
| Approach Speed | 200 mm/s |
| Bending Speed | 10 mm/s |
| Return Speed | 160 mm/s |
| Motor Power | 7.5 kW (10.1 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,800 mm (189 in) |
| Machine Width | 1,800 mm (70.9 in) |
| Machine Height | 2,700 mm (106.3 in) |
| Machine Weight | 9,500 kg (20,944 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 mm (157.5 in) bending length at 9,500 kg (20,944 lb)
- Keeps the 200 mm/s approach of the shorter models
- 3,300 mm (129.9 in) between the side frames
- Runs on a 7.5 kW (10.1 hp) motor
Limitations
- 1,100 kN is thin-sheet capacity on a four-metre bend
- Backgauge stroke of 750 mm (29.5 in) on a long bed
- The AP3-AP4 sheet following system for long panels is optional equipment
- Needs 4,800 mm (189 in) of floor length
Best For
Frequently Asked Questions
01
Shops whose parts are long rather than thick. It gives 4,000 mm (157.5 in) of bending length with 1,100 kN, the lightest four-metre combination in the EURO-PRO B table.
02
The EURO-PRO B 40135, with 1,350 kN, an 11 kW (14.8 hp) motor and a weight of 10,000 kg (22,046 lb). Speeds and the 430 mm (16.9 in) daylight stay the same.
03
Sheet metal frontal supports are standard equipment. Accurl lists the AP3-AP4 sheet following system and additional sliding front support arms as options for the series.
04
Length 4,800 mm (189 in), width 1,800 mm (70.9 in), height 2,700 mm (106.3 in) and weight 9,500 kg (20,944 lb) according to the table. The working table is 940 mm (37 in) high.
