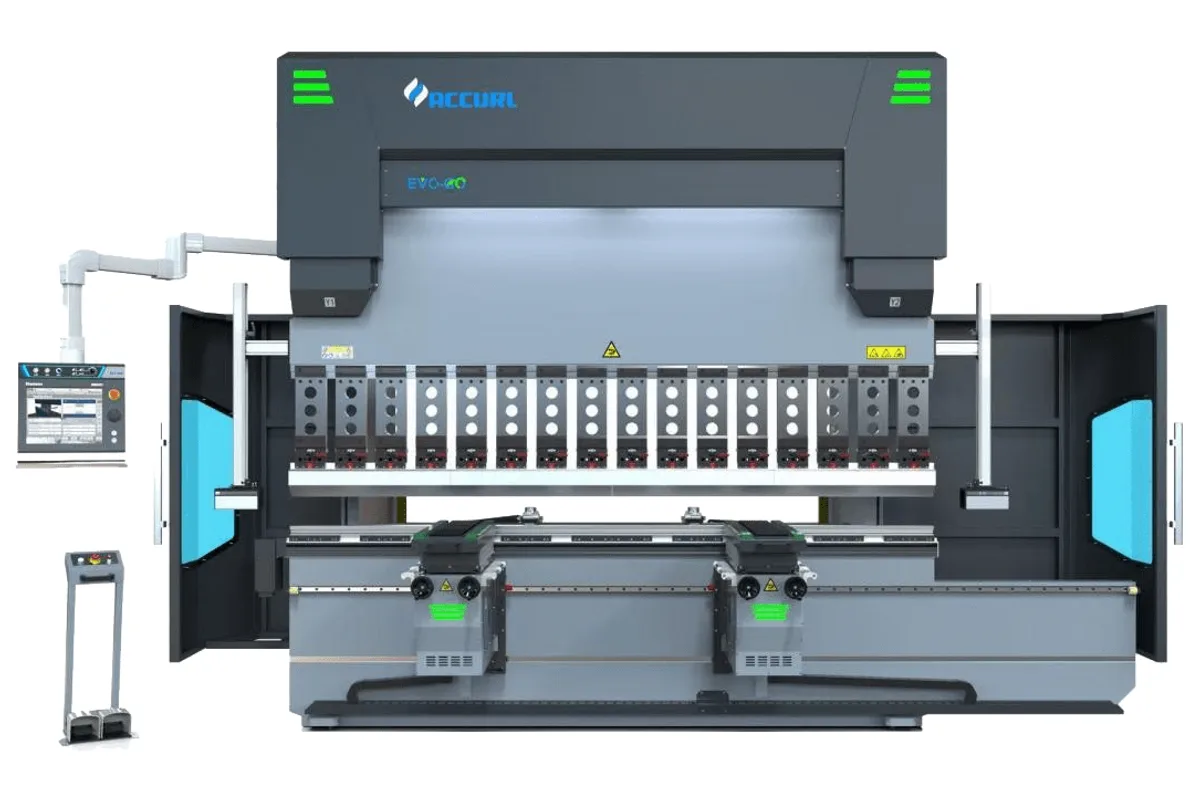

Accurl EURO GENIUS B60175H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B60175H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B60175H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO GENIUS B60175H is the lightest six-metre press brake in the series. Its bending length is 6,000 mm (236.2 in), its capacity 1,750 kN, and it reaches that length on a 15 kW (20.1 hp) motor.
Six metres changes the machine more than the force does. Weight jumps to 19,700 kg (43,430 lb), against 12,650 kg (27,888 lb) for the EURO GENIUS B40175H of equal capacity. The outline grows to 6,900 mm (271.7 in) by 2,000 mm (78.7 in), with a height of 3,380 mm (133.1 in).
At 1,750 kN this is a machine for long thin work: lamp poles in light gauge, long gutters and flashings, six-metre door and frame profiles, cable tray. Thick plate over the full bed is beyond it, and the series continues upward to the EURO GENIUS B60320H with 3,200 kN for that purpose.
Approach and return are both 160 mm/s. Bending speed is 0-10 mm/s. Stroke, daylight and throat depth are 300 mm (11.8 in), 550 mm (21.7 in) and 450 mm (17.7 in).
On a six-metre beam, deflection is the enemy of a straight bend. CNC motorized wave crowning is standard equipment, which Accurl describes as keeping the angle constant along the entire plate length. The standard backgauge is a BGA-2, and its stroke is 800 mm (31.5 in).
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,750 kN |
| Bending Length | 6,000 mm (236.2 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 550 mm (21.7 in) |
| Stroke | 300 mm (11.8 in) |
| Approach Speed | 160 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 160 mm/s |
| Motor Power | 15 kW (20.1 hp) |
| Backgauge Stroke | 800 mm (31.5 in) |
| Machine Length | 6,900 mm (271.7 in) |
| Machine Width | 2,000 mm (78.7 in) |
| Machine Height | 3,380 mm (133.1 in) |
| Machine Weight | 19,700 kg (43,430 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,000 mm (236.2 in) bending length
- Lightest six-metre model at 19,700 kg (43,430 lb)
- 160 mm/s in both approach and return
- CNC motorized wave crowning as standard
- Modest 15 kW (20.1 hp) motor for a six-metre machine
Limitations
- 1,750 kN is modest over 6,000 mm (236.2 in)
- Two-axis BGA-2 backgauge with an 800 mm (31.5 in) stroke on a very long bed
- Height of 3,380 mm (133.1 in)
- Stroke of 300 mm (11.8 in)
Best For
Frequently Asked Questions
01
The bending length is 6,000 mm (236.2 in) and the overall machine length 6,900 mm (271.7 in). Width is 2,000 mm (78.7 in) and height 3,380 mm (133.1 in).
02
The EURO GENIUS B60220H with 2,200 kN and the EURO GENIUS B60320H with 3,200 kN. Both have a backgauge stroke of 1,000 mm (39.4 in).
03
19,700 kg (43,430 lb). The four-metre EURO GENIUS B40175H of the same capacity weighs 12,650 kg (27,888 lb), so the foundation and the unloading plan are different matters at this length.
04
Accurl lists a BGA-4 for X, R, Z1 and Z2 and a BGA-6 for X1, X2, R1, R2, Z1 and Z2 as optional equipment. Independent fingers help with long parts that are gauged at two points.
