Accurl EURO-PRO B 40250

Specs verified 2026-10-05 · accurl.com Updated 2026-10-05

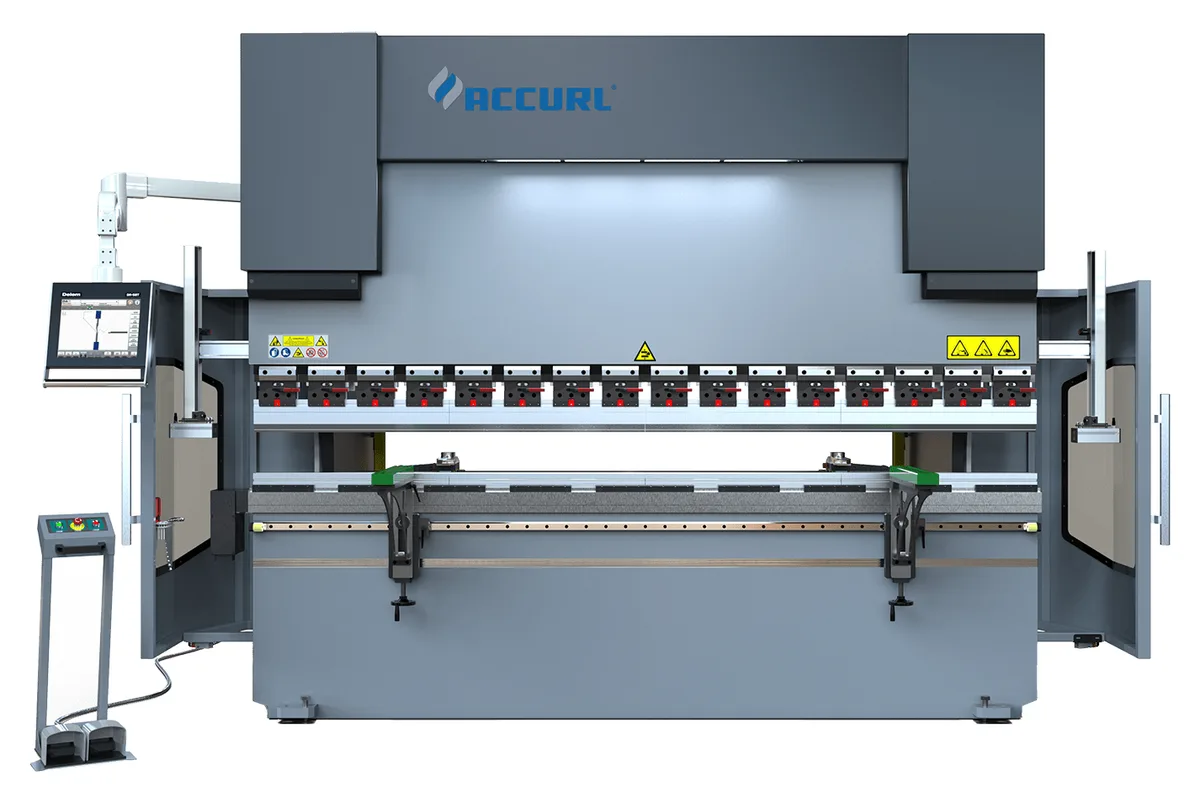

Image: accurl.com, Accurl

Key Specifications

bending force

2,500 kN

bending length

4,000 mm (157.5 in)

distance between side frames

3,300 mm (129.9 in)

gap

400 mm (15.7 in)

daylight opening

500 mm (19.7 in)

stroke

250 mm (9.8 in)

How much does the Accurl EURO-PRO B 40250 cost?

Price estimate

Uncertain

We do not have a price for the Accurl EURO-PRO B 40250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Deep parts in plate on a four-metre bed are the purpose of the Accurl EURO-PRO B 40250. It combines 2,500 kN and a bending length of 4,000 mm (157.5 in) with a 250 mm (9.8 in) stroke and 500 mm (19.7 in) of daylight.

The gap is 400 mm (15.7 in) and the side frames are 3,300 mm (129.9 in) apart. The table is 180 mm (7.1 in) wide and 1,080 mm (42.5 in) high.

Performance figures are shared with the EURO-PRO B 32250: a 22 kW (29.5 hp) motor, 160 mm/s approach, 10 mm/s bending, 140 mm/s return. The longer machine weighs 18,000 kg (39,683 lb).

Read the width in the table with care. Accurl prints 1,730 mm (68.1 in) for this model. The shorter EURO-PRO B 32250 is printed at 2,000 mm (78.7 in), and none of the neighbouring rows is as narrow. The length, 4,900 mm (192.9 in), and the height, 3,180 mm (125.2 in), are in line with the neighbouring rows. Ask for a dimensioned drawing.

On long, heavy work the backgauge deserves attention. A two-axis BGA-2 is standard. Accurl offers a BGA-4 for X, R, Z1 and Z2 and a BGA-6 with two independent X and R axes as options.

Full Specifications

Parameter	Value
Bending Force	2,500 kN
Bending Length	4,000 mm (157.5 in)
Distance Between Side Frames	3,300 mm (129.9 in)
Gap	400 mm (15.7 in)
Daylight Opening	500 mm (19.7 in)
Stroke	250 mm (9.8 in)
Table Height	1,080 mm (42.5 in)
Table Width	180 mm (7.1 in)
Approach Speed	160 mm/s
Bending Speed	10 mm/s
Return Speed	140 mm/s
Motor Power	22 kW (29.5 hp)
Backgauge Stroke	750 mm (29.5 in)
Machine Length	4,900 mm (192.9 in)
Machine Width	1,730 mm (68.1 in)
Machine Height	3,180 mm (125.2 in)
Machine Weight	18,000 kg (39,683 lb)

Specifications sourced from accurl.com — verified 2026-10-05

Strengths & Limitations

Strengths

250 mm (9.8 in) stroke on a 4,000 mm (157.5 in) bed
2,500 kN with a 22 kW (29.5 hp) motor
500 mm (19.7 in) daylight opening
18,000 kg (39,683 lb), moderate for the capacity and length

Limitations

Printed width of 1,730 mm (68.1 in) is out of line with the series and needs confirming
Approach speed of 160 mm/s
Standard backgauge is the two-axis BGA-2
Working height of 1,080 mm (42.5 in)

Best For

Long deep channels and troughs Chassis and frame members in plate Four-metre work with tall punches

Frequently Asked Questions

01 How wide is the Accurl EURO-PRO B 40250?

The table prints 1,730 mm (68.1 in). Because the three-metre EURO-PRO B 32250 is printed at 2,000 mm (78.7 in), the figure should be confirmed with Accurl before the foundation is planned.

02 What stroke and daylight does it offer?

A stroke of 250 mm (9.8 in) and a daylight opening of 500 mm (19.7 in). The EURO-PRO B 40220 below it has 200 mm (7.9 in) and 470 mm (18.5 in).

03 Which backgauges are available?

Standard is a BGA-2 for the X and R axes, and the table gives a backgauge stroke of 750 mm (29.5 in). The BGA-4 adds Z1 and Z2; the BGA-6 has X1, X2, R1, R2, Z1 and Z2.

04 How much does it weigh?

18,000 kg (39,683 lb). The EURO-PRO B 40320, the next four-metre size, is listed at 20,000 kg (44,092 lb) with 3,200 kN and a 300 mm (11.8 in) stroke.
