Accurl EURO GENIUS B32250H

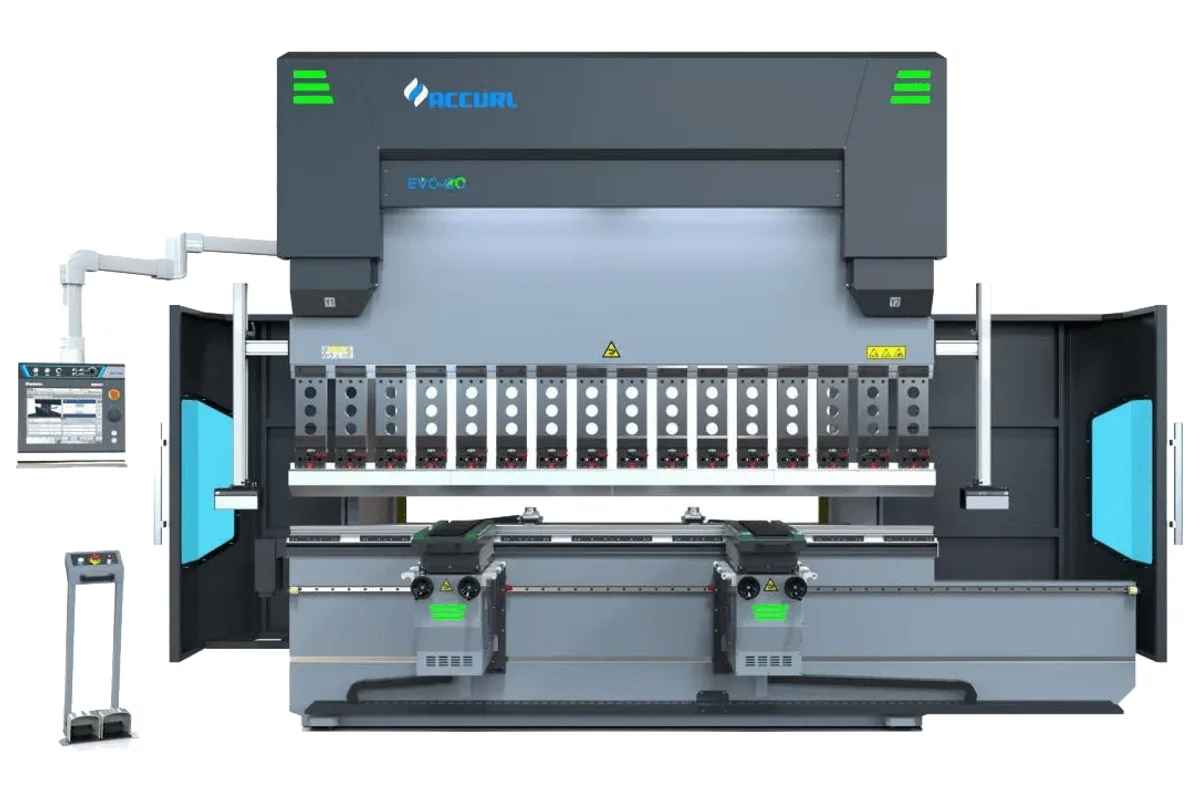

Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B32250H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B32250H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Deep boxes in heavy material are what the Accurl EURO GENIUS B32250H is laid out for. It is a 2,500 kN press brake with a 3,200 mm (126 in) bending length, and it introduces the largest stroke of the series, 350 mm (13.8 in), with a daylight opening of 600 mm (23.6 in).
The frame is visibly heavier than the size below. Weight is 17,300 kg (38,139 lb), against 13,500 kg (29,762 lb) for the EURO GENIUS B32220H, and the width grows to 2,020 mm (79.5 in). A 22 kW (29.5 hp) motor supplies the hydraulics.
Return speed is the price. It drops to 110 mm/s, a large step from the 150 mm/s of the EURO GENIUS B32220H. Approach is 160 mm/s and bending 0-10 mm/s. With 350 mm of stroke available, an operator who opens the ram fully on every bend will feel that slow return, so programming the opening height per bend is worthwhile.
Backgauge stroke is 800 mm (31.5 in). On the four-metre version, the EURO GENIUS B40250H, Accurl lists 1,000 mm (39.4 in).
Throat depth is 450 mm (17.7 in). The machine measures 4,350 mm (171.3 in) in length and 3,280 mm (129.1 in) in height.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 2,500 kN |
| Bending Length | 3,200 mm (126 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 600 mm (23.6 in) |
| Stroke | 350 mm (13.8 in) |
| Approach Speed | 160 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 110 mm/s |
| Motor Power | 22 kW (29.5 hp) |
| Backgauge Stroke | 800 mm (31.5 in) |
| Machine Length | 4,350 mm (171.3 in) |
| Machine Width | 2,020 mm (79.5 in) |
| Machine Height | 3,280 mm (129.1 in) |
| Machine Weight | 17,300 kg (38,139 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 350 mm (13.8 in) stroke, the longest in the series
- 600 mm (23.6 in) daylight opening
- 2,500 kN on a 3,200 mm (126 in) bed
- 22 kW (29.5 hp) motor of efficiency class IE3
Limitations
- Return speed of 110 mm/s lengthens multi-bend cycles
- 17,300 kg (38,139 lb), much heavier than the EURO GENIUS B32220H
- Backgauge stroke remains 800 mm (31.5 in)
- Width of 2,020 mm (79.5 in)
Best For
Frequently Asked Questions
01
350 mm (13.8 in), with 600 mm (23.6 in) of daylight. Every model from this capacity upward has the same stroke; daylight rises once more, to 630 mm (24.8 in), on the EURO GENIUS B32320H.
02
The table gives 110 mm/s without comment. Larger cylinders hold more oil to move, which is the usual reason. The approach speed of 160 mm/s is less affected.
03
17,300 kg (38,139 lb), 4,350 mm (171.3 in) long, 2,020 mm (79.5 in) wide and 3,280 mm (129.1 in) high, all marked approximate in the catalogue.
04
The standard equipment list does not name a clamping system. Hydraulic and pneumatic tool clamping systems are listed as optional equipment, so the base machine should be assumed to have manual clamping until Accurl states otherwise.
