Accurl EURO-PRO B 2563

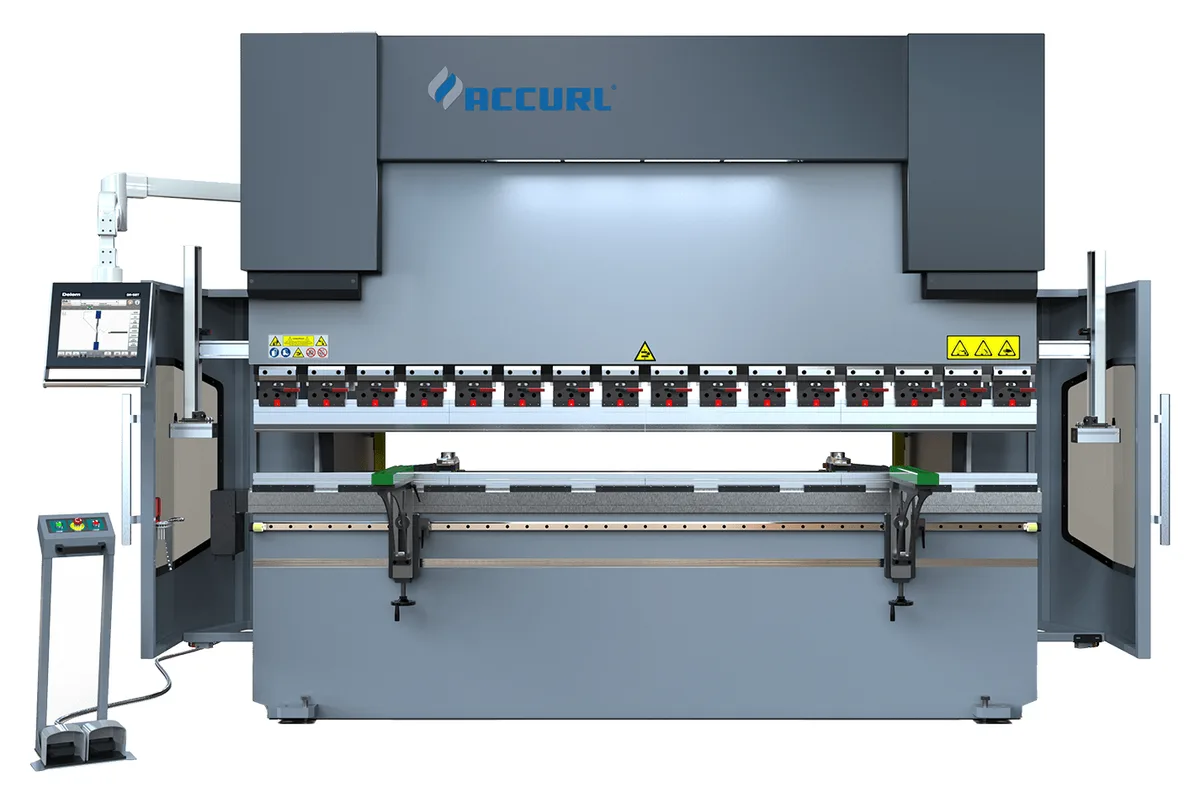

Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 2563 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 2563 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A long bed with a light ram: the Accurl EURO-PRO B 2563 spreads 630 kN over a bending length of 2,500 mm (98.4 in). That ratio defines the work. It is a thin-sheet machine for parts cut from standard two-and-a-half-metre sheet, not a brake for plate.
Between the side frames there are 2,060 mm (81.1 in). A full-length part therefore relies on the gap, which is 370 mm (14.6 in) deep. Flanges longer than that on a full-length blank will meet the frames.
The working space matches the small EURO-PRO B 1563 exactly: 350 mm (13.8 in) of daylight, a 200 mm (7.9 in) stroke, a table 870 mm (34.3 in) high and 80 mm (3.1 in) wide. So do the speeds, 200 mm/s on approach and 160 mm/s on return with a 10 mm/s bending speed, and the 5.5 kW (7.4 hp) motor. What changes is the frame. Weight rises to 5,600 kg (12,346 lb) and length to 2,825 mm (111.2 in).
Is the low force a problem? For cabinet doors, light trays, ducting and signage it is not, and the quick ram is worth more than tonnage on such parts. Shops that also bend thicker material should look at the EURO-PRO B 32110, which has 1,100 kN and a taller opening of 430 mm (16.9 in).
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 630 kN |
| Bending Length | 2,500 mm (98.4 in) |
| Distance Between Side Frames | 2,060 mm (81.1 in) |
| Gap | 370 mm (14.6 in) |
| Daylight Opening | 350 mm (13.8 in) |
| Stroke | 200 mm (7.9 in) |
| Table Height | 870 mm (34.3 in) |
| Table Width | 80 mm (3.1 in) |
| Approach Speed | 200 mm/s |
| Bending Speed | 10 mm/s |
| Return Speed | 160 mm/s |
| Motor Power | 5.5 kW (7.4 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 2,825 mm (111.2 in) |
| Machine Width | 1,650 mm (65 in) |
| Machine Height | 2,430 mm (95.7 in) |
| Machine Weight | 5,600 kg (12,346 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,500 mm (98.4 in) bending length in a machine of 5,600 kg (12,346 lb)
- 200 mm/s approach, the highest figure in the table
- Low 5.5 kW (7.4 hp) motor rating
- Sheet metal frontal supports and CNC motorized wave crowning are standard equipment
Limitations
- 630 kN across 2,500 mm (98.4 in) restricts the machine to thin sheet
- Only 2,060 mm (81.1 in) between the side frames
- 350 mm (13.8 in) daylight, less than the 430 mm (16.9 in) of the EURO-PRO B 32110
Best For
Frequently Asked Questions
01
It suits light-gauge sheet over the full 2,500 mm (98.4 in) and thicker material only on short bends. Accurl publishes a bending force calculator on its site; run the real part through it before deciding.
02
In length only. The EURO-PRO B 1563 bends 1,500 mm (59.1 in) and weighs 4,600 kg (10,141 lb). This model bends 2,500 mm (98.4 in) and weighs 5,600 kg (12,346 lb). Force, motor, stroke, daylight and speeds are identical.
03
The table height is 870 mm (34.3 in) and the table width 80 mm (3.1 in). The overall machine height is listed as 2,430 mm (95.7 in), which fits under most workshop ceilings and mezzanines.
04
The standard backgauge is a BGA-2 for the X and R axes. The table lists a backgauge stroke of 750 mm (29.5 in). A BGA-4, which adds Z1 and Z2, is optional equipment.
