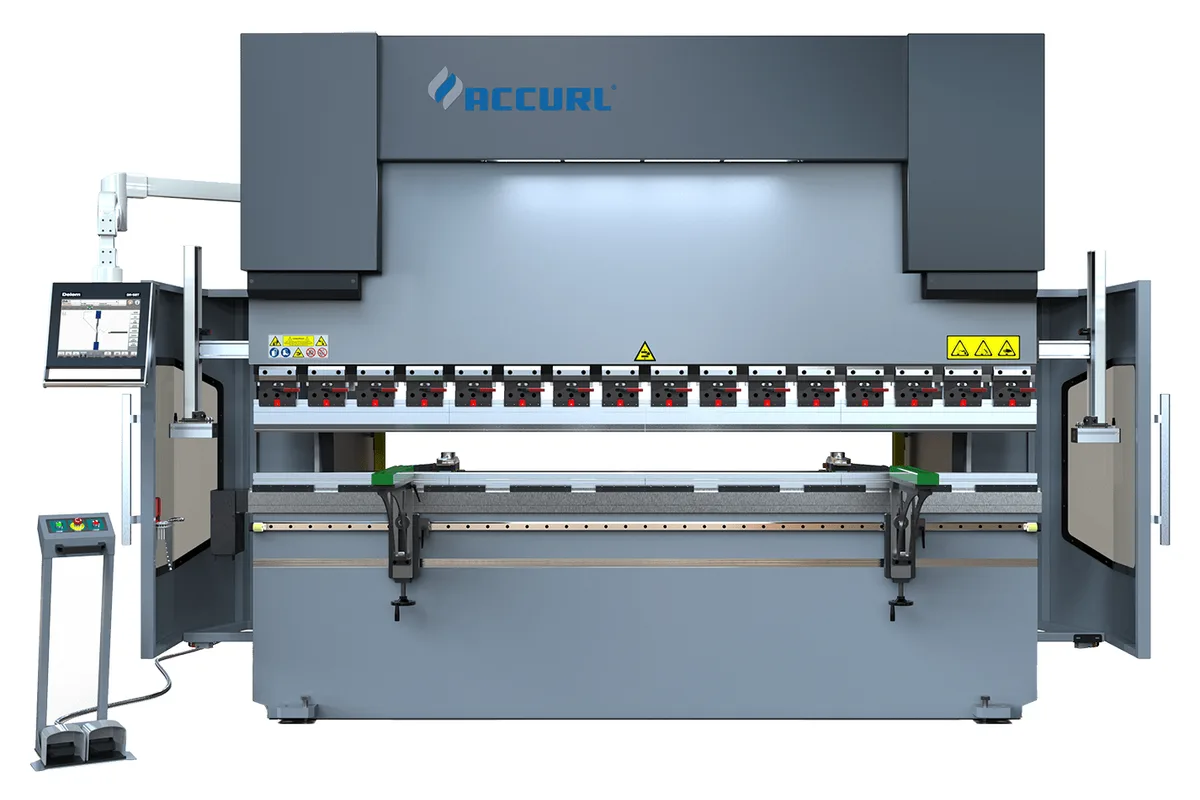

Accurl EURO-PRO B 40135
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 40135 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 40135 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Above the Accurl EURO-PRO B 40135 the series starts trading speed for force. This is the last and strongest size that keeps the fast ram: 1,350 kN on a bending length of 4,000 mm (157.5 in), approaching at 200 mm/s and returning at 160 mm/s.
On a four-metre machine those speeds count for more than on a short one, because long parts are slow to handle and every second at the ram is felt. The motor is 11 kW (14.8 hp), and the bending speed is 10 mm/s.
The extra force over the EURO-PRO B 40110, which has 1,100 kN, costs little in mass. The EURO-PRO B 40110 weighs 9,500 kg (20,944 lb); this one is listed at 10,000 kg (22,046 lb). Length is identical at 4,800 mm (189 in), and the width grows to 1,900 mm (74.8 in).
Inside, the dimensions are those of the lighter full-size EURO-PRO models: 400 mm (15.7 in) of gap, 430 mm (16.9 in) of daylight and a 200 mm (7.9 in) stroke over a table 100 mm (3.9 in) wide. The side frames are 3,300 mm (129.9 in) apart.
Accurl lists the Y1 and Y2 axes for precision ram positioning as standard. On a long beam that independent control of the two ends is what keeps a bend parallel when the load sits off centre.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,350 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Distance Between Side Frames | 3,300 mm (129.9 in) |
| Gap | 400 mm (15.7 in) |
| Daylight Opening | 430 mm (16.9 in) |
| Stroke | 200 mm (7.9 in) |
| Table Height | 940 mm (37 in) |
| Table Width | 100 mm (3.9 in) |
| Approach Speed | 200 mm/s |
| Bending Speed | 10 mm/s |
| Return Speed | 160 mm/s |
| Motor Power | 11 kW (14.8 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,800 mm (189 in) |
| Machine Width | 1,900 mm (74.8 in) |
| Machine Height | 2,700 mm (106.3 in) |
| Machine Weight | 10,000 kg (22,046 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,350 kN on 4,000 mm (157.5 in) with a 200 mm/s approach
- Return speed of 160 mm/s, not reduced by the longer bed
- 10,000 kg (22,046 lb), close to the lighter four-metre model
- Y1, Y2 precision ram positioning is standard equipment
Limitations
- Stroke of 200 mm (7.9 in) and daylight of 430 mm (16.9 in) are modest for a four-metre machine
- Backgauge stroke ends at 750 mm (29.5 in)
- Table width is 100 mm (3.9 in)
Best For
Frequently Asked Questions
01
Fast approach 200 mm/s, maximum bending speed 10 mm/s, return 160 mm/s. The next size up, the EURO-PRO B 40175, is listed at 180 mm/s on approach and 140 mm/s on return.
02
3,300 mm (129.9 in). The bending length is 4,000 mm (157.5 in), so the outer part of a full-length blank runs through the 400 mm (15.7 in) gap of the frames.
03
The EURO-PRO B 40110 is listed at 9,500 kg (20,944 lb) and this model at 10,000 kg (22,046 lb). Both are 4,800 mm (189 in) long and 2,700 mm (106.3 in) high.
04
An 11 kW (14.8 hp) motor. The standard equipment list describes a Siemens efficiency motor of class IE3 together with a stand-by function for the energy-saving drive.
