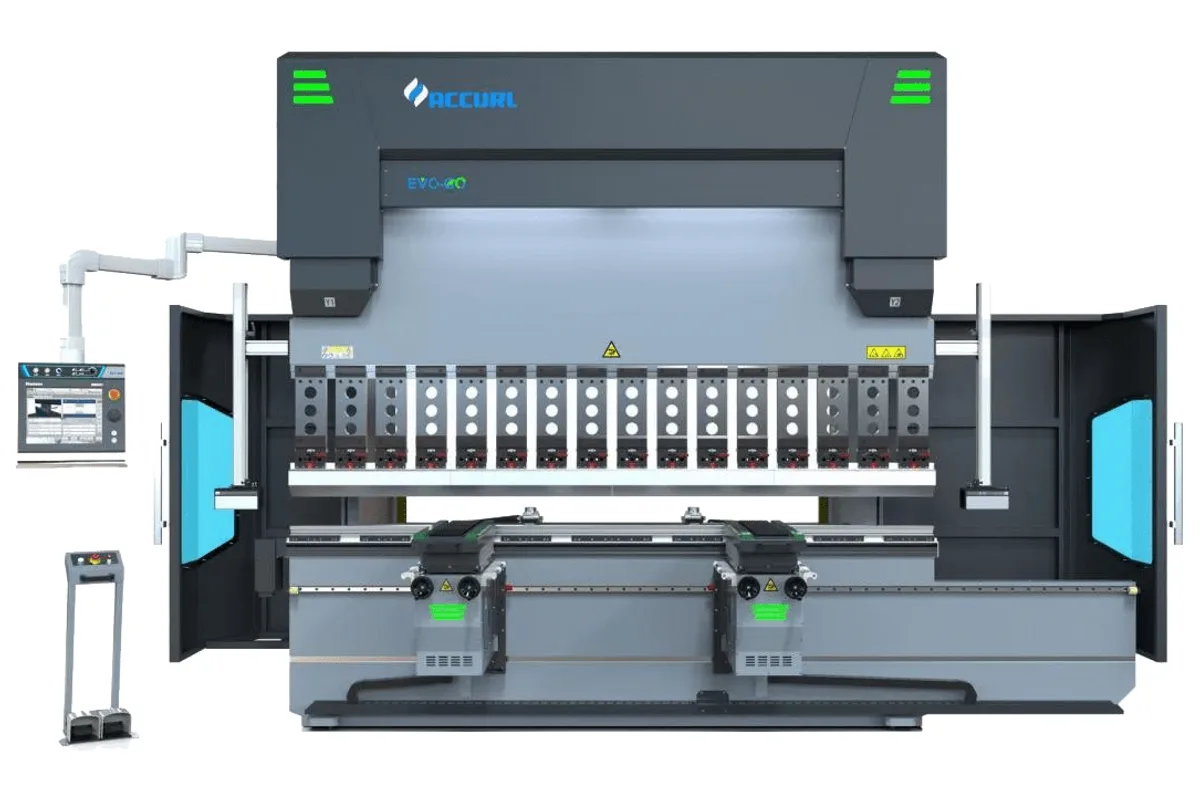

Accurl EURO GENIUS B60220H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B60220H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B60220H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO GENIUS B60220H is the middle one of three six-metre machines in the series, with 2,200 kN on a bending length of 6,000 mm (236.2 in). It weighs 23,000 kg (50,705 lb).
Beside the lighter six-metre model it is better equipped for real fabrication. Stroke is 320 mm (12.6 in) and daylight 580 mm (22.8 in), and the backgauge stroke is 1,000 mm (39.4 in). The EURO GENIUS B60175H offers 300 mm (11.8 in), 550 mm (21.7 in) and 800 mm (31.5 in) in those rows.
Return speed is 140 mm/s, a value that appears only on this model, and approach is 160 mm/s. Bending runs at 0-10 mm/s.
A note on the motor. Accurl's table prints 18 kW (24.1 hp) here, while the EURO GENIUS B40220H, with the same capacity, is printed with 18.5 kW (24.8 hp). It may be a misprint. The figure is reproduced as the maker gives it, and the supply should be sized from the order confirmation.
Typical work is long structural sheet: poles and masts in medium gauge, crane and trailer sections, long box profiles. The machine is 6,920 mm (272.4 in) long, 2,050 mm (80.7 in) wide and 3,380 mm (133.1 in) high, so transport and unloading need the same planning as the foundation.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 2,200 kN |
| Bending Length | 6,000 mm (236.2 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 580 mm (22.8 in) |
| Stroke | 320 mm (12.6 in) |
| Approach Speed | 160 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 140 mm/s |
| Motor Power | 18 kW (24.1 hp) |
| Backgauge Stroke | 1,000 mm (39.4 in) |
| Machine Length | 6,920 mm (272.4 in) |
| Machine Width | 2,050 mm (80.7 in) |
| Machine Height | 3,380 mm (133.1 in) |
| Machine Weight | 23,000 kg (50,705 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,200 kN over 6,000 mm (236.2 in)
- 320 mm (12.6 in) stroke and 580 mm (22.8 in) daylight on a six-metre bed
- 1,000 mm (39.4 in) backgauge stroke
- 160 mm/s approach, equal to the lighter EURO GENIUS B60175H
Limitations
- 23,000 kg (50,705 lb) to transport and found
- Return speed of 140 mm/s on a long ram
- Motor row prints 18 kW (24.1 hp), which differs from its sister models and needs confirming
- Standard BGA-2 backgauge has two axes
Best For
Frequently Asked Questions
01
23,000 kg (50,705 lb). The lighter EURO GENIUS B60175H weighs 19,700 kg (43,430 lb) and the stronger EURO GENIUS B60320H 33,000 kg (72,751 lb).
02
The catalogue table prints 18 kW (24.1 hp). The EURO GENIUS B40220H with the same capacity is printed with 18.5 kW (24.8 hp), so ask Accurl which rating applies.
03
Daylight opening is 580 mm (22.8 in) and stroke 320 mm (12.6 in). Throat depth is 450 mm (17.7 in), as on the other six-metre models.
04
CNC motorized wave crowning, Y1 and Y2 precision ram positioning and sheet metal frontal supports are standard. The AP3-AP4 sheet following system is optional equipment.
