Accurl EURO GENIUS B32320H

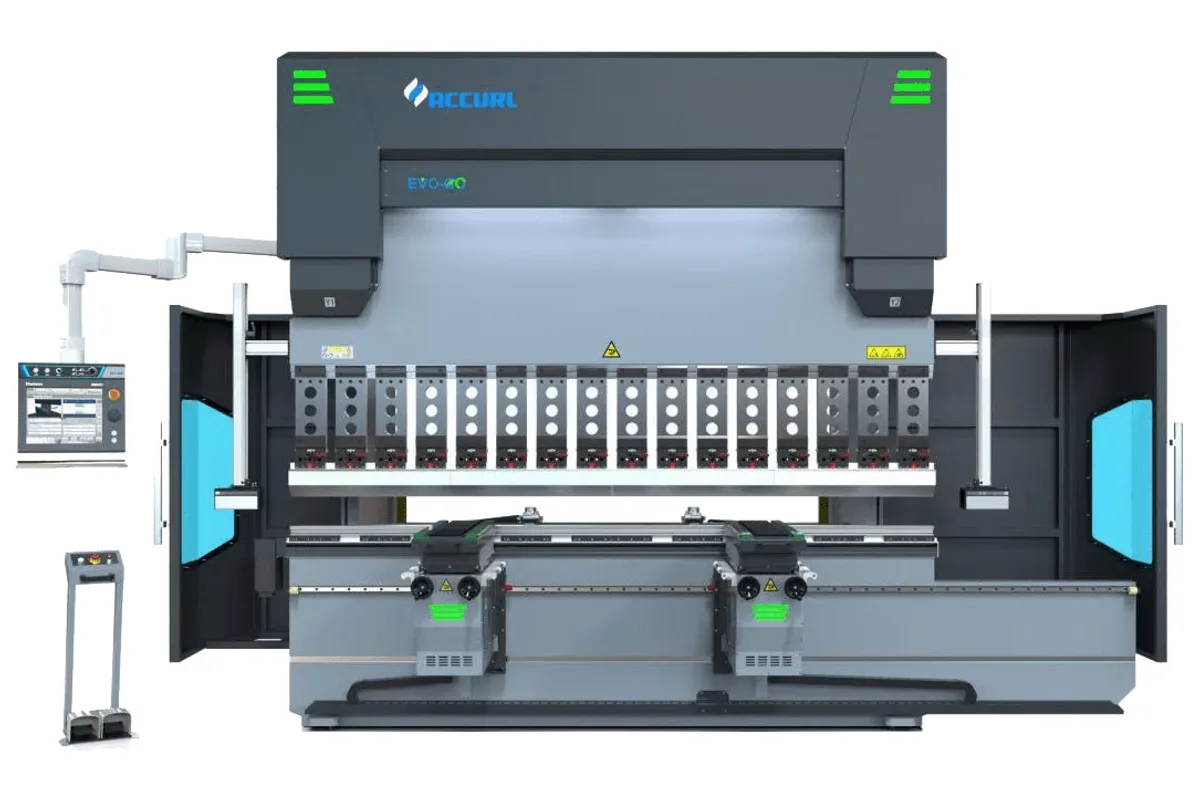

Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B32320H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B32320H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO GENIUS B32320H concentrates 3,200 kN on a bending length of 3,200 mm (126 in). No other model in the series puts as much force into each metre of bed, which makes it the plate specialist of the three-metre group.
Power comes from a 30 kW (40.2 hp) motor. The opening is the tallest Accurl lists for the series: 630 mm (24.8 in) of daylight with a 350 mm (13.8 in) stroke. Tall dies for thick plate, with their wide V openings, take up height quickly, and this is where the extra height over the EURO GENIUS B32250H goes.
The ram approaches at 150 mm/s and returns at 110 mm/s. Bending is 0-10 mm/s. For plate work those figures are adequate, because the part is usually positioned by crane or by two people and the ram waits for them.
Weight is 19,500 kg (42,989 lb). The machine is 4,450 mm (175.2 in) long and 2,020 mm (79.5 in) wide, and at 3,380 mm (133.1 in) it is as tall as the six-metre models of lower capacity.
One row lags behind the rest. Backgauge stroke is 800 mm (31.5 in), as on the small machines; the four-metre EURO GENIUS B40320H has 1,000 mm (39.4 in). Throat depth is 450 mm (17.7 in).
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 3,200 kN |
| Bending Length | 3,200 mm (126 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 630 mm (24.8 in) |
| Stroke | 350 mm (13.8 in) |
| Approach Speed | 150 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 110 mm/s |
| Motor Power | 30 kW (40.2 hp) |
| Backgauge Stroke | 800 mm (31.5 in) |
| Machine Length | 4,450 mm (175.2 in) |
| Machine Width | 2,020 mm (79.5 in) |
| Machine Height | 3,380 mm (133.1 in) |
| Machine Weight | 19,500 kg (42,989 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,200 kN on 3,200 mm (126 in), the highest force density in the series
- 630 mm (24.8 in) daylight opening
- 350 mm (13.8 in) stroke for tall plate tooling
- 30 kW (40.2 hp) motor behind the 3,200 kN rating
- 150 mm/s approach speed, as on the EURO GENIUS B40250H
Limitations
- Backgauge stroke of 800 mm (31.5 in)
- Return speed of 110 mm/s lengthens multi-bend cycles
- 19,500 kg (42,989 lb) on a short bed means a concentrated floor load
- Height of 3,380 mm (133.1 in)
Best For
Frequently Asked Questions
01
3,200 kN over 3,200 mm (126 in). Only the EURO GENIUS B40400H has a higher capacity in the table, 4,000 kN, and it spreads that over 4,000 mm (157.5 in).
02
630 mm (24.8 in), with a 350 mm (13.8 in) stroke. The EURO GENIUS B32250H below it has 600 mm (23.6 in) with the same stroke.
03
The main motor is 30 kW (40.2 hp). Voltage and total connected load are not printed in the catalogue table and should be taken from Accurl's offer.
04
The table gives 800 mm (31.5 in) of backgauge stroke for this model. An X axis of 1000 mm with light barrier back protection is listed as optional equipment.
