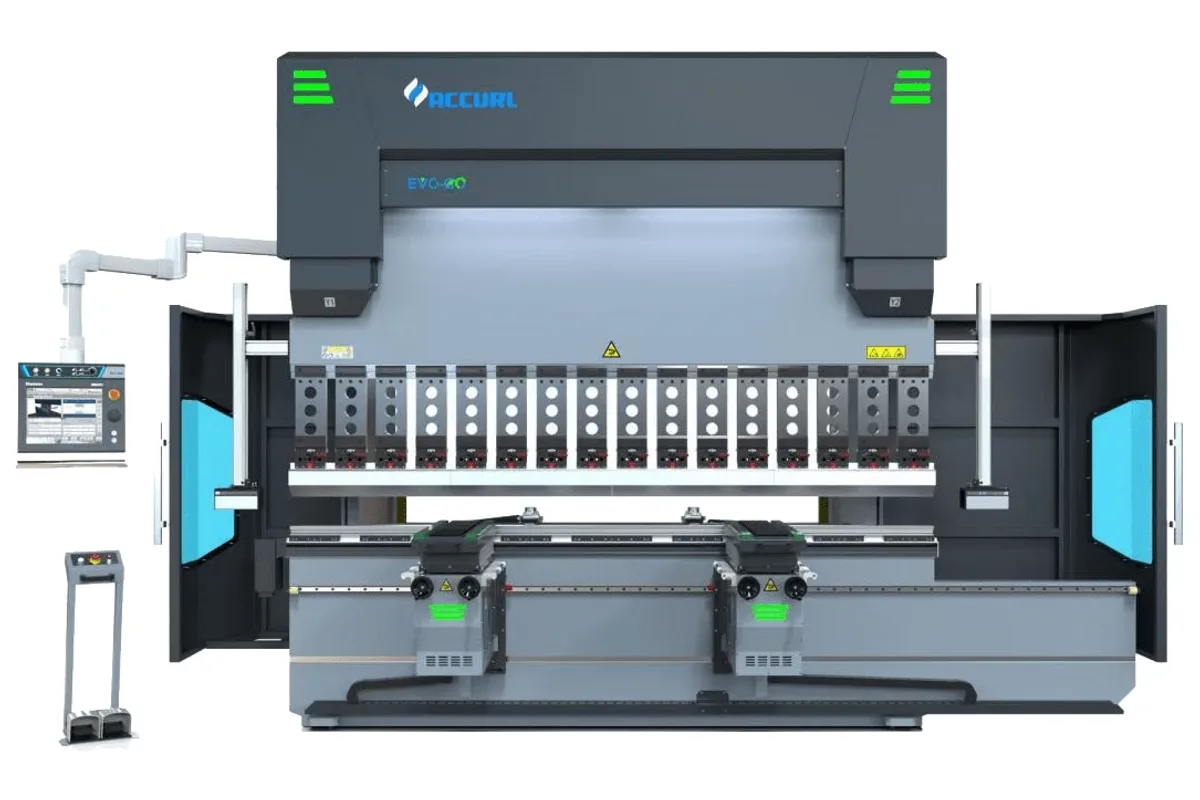

Accurl EURO GENIUS B40220H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B40220H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B40220H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two rows change at once on the Accurl EURO GENIUS B40220H, and both favour deep parts. Rated 2,200 kN over 4,000 mm (157.5 in), it is the first model in the table with a 320 mm (12.6 in) stroke and a 580 mm (22.8 in) daylight opening.
It is also the first with the long backgauge. The table shows a backgauge stroke of 1,000 mm (39.4 in), where every model listed above it has 800 mm (31.5 in). On four-metre work that extra reach is useful for wide flanges and for gauging large blanks from the far edge.
Speeds sit in the middle of the range. The approach figure, 165 mm/s, appears on no other model. Return is 150 mm/s and bending speed 0-10 mm/s. The motor is rated 18.5 kW (24.8 hp).
In practice this is the all-rounder of the four-metre machines. It has enough force for plate, enough stroke for boxes and enough gauge travel for big parts, at 14,950 kg (32,959 lb). The step to the EURO GENIUS B40250H brings more of everything except speed, with a return of 110 mm/s.
Throat depth is 450 mm (17.7 in). The machine measures 4,920 mm (193.7 in) by 1,930 mm (76 in) and is 3,250 mm (128 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 2,200 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 580 mm (22.8 in) |
| Stroke | 320 mm (12.6 in) |
| Approach Speed | 165 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 150 mm/s |
| Motor Power | 18.5 kW (24.8 hp) |
| Backgauge Stroke | 1,000 mm (39.4 in) |
| Machine Length | 4,920 mm (193.7 in) |
| Machine Width | 1,930 mm (76 in) |
| Machine Height | 3,250 mm (128 in) |
| Machine Weight | 14,950 kg (32,959 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 320 mm (12.6 in) stroke with 580 mm (22.8 in) of daylight
- Backgauge stroke of 1,000 mm (39.4 in)
- 2,200 kN across 4,000 mm (157.5 in)
- 165 mm/s approach and 150 mm/s return
Limitations
- Slower on approach than the EURO GENIUS B40175H at 180 mm/s
- 14,950 kg (32,959 lb) and 3,250 mm (128 in) of height
- Standard backgauge has only the X and R axes
Best For
Frequently Asked Questions
01
It is where the series steps up in stroke, daylight and backgauge travel: 320 mm (12.6 in), 580 mm (22.8 in) and 1,000 mm (39.4 in). The three-metre EURO GENIUS B32220H of equal capacity has 300 mm (11.8 in), 550 mm (21.7 in) and 800 mm (31.5 in).
02
Fast approach 165 mm/s, return 150 mm/s, bending 0-10 mm/s. The six-metre EURO GENIUS B60220H is a little slower at 160 mm/s and 140 mm/s.
03
18.5 kW (24.8 hp). Accurl lists a Siemens efficiency motor of class IE3 with a stand-by function for the energy-saving drive in the standard equipment.
04
The DELEM DA-66T with 2D graphics is standard. Accurl offers a DELEM DA69T or a ModEva Premium control as optional equipment, and Delem Profile-TL offline software is on the standard list.
