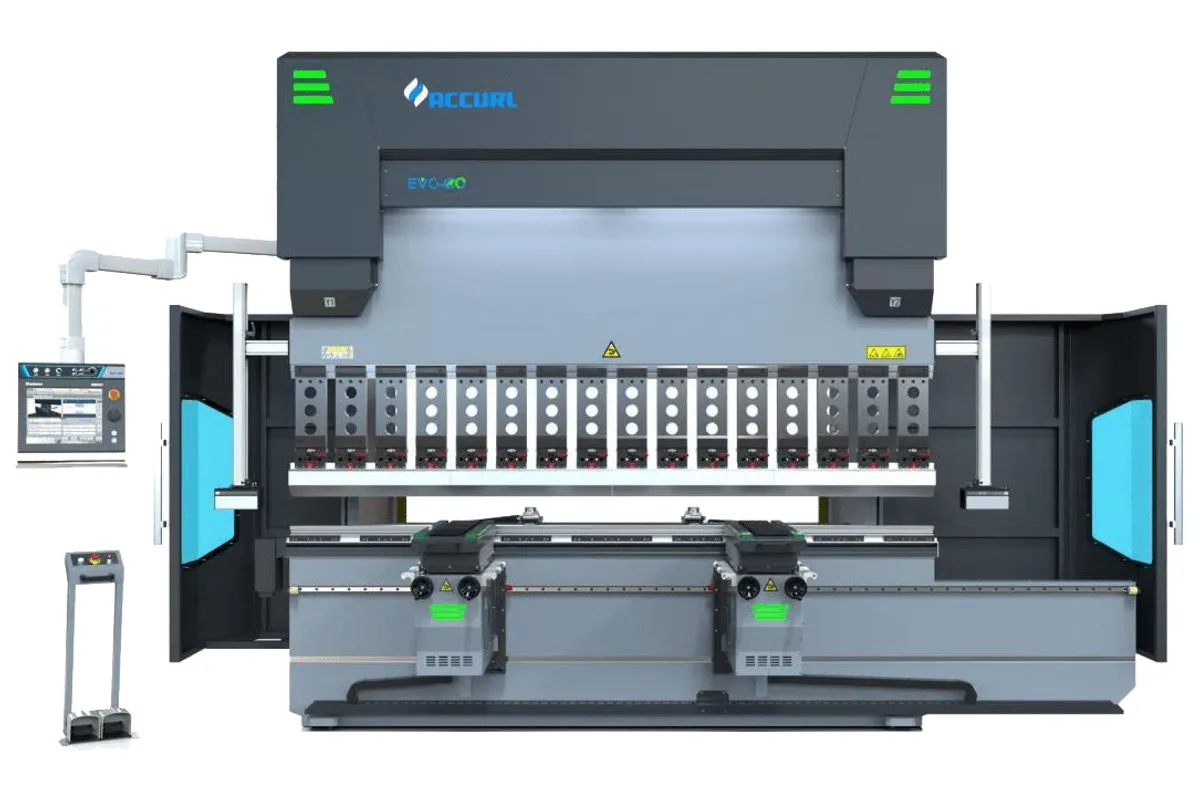

Accurl EURO GENIUS B60320H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B60320H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B60320H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 33,000 kg (72,751 lb), the Accurl EURO GENIUS B60320H is the heaviest machine in the EURO GENIUS B table. It is the top six-metre model: 3,200 kN over a bending length of 6,000 mm (236.2 in).
The mass is what a long beam needs to stay straight under load. The machine is 7,000 mm (275.6 in) long and 3,580 mm (140.9 in) high, and 2,100 mm (82.7 in) wide. Delivery, lifting and foundation work are a project of their own, and the height should be compared with the building's clear height under the crane.
Inside that frame the working space is the largest the series offers on a six-metre bed. Daylight is 630 mm (24.8 in) and stroke 350 mm (13.8 in). The backgauge stroke is 1,000 mm (39.4 in).
The 30 kW (40.2 hp) motor moves the ram at 130 mm/s on approach and 100 mm/s on return. Bending speed is 0-10 mm/s. Nobody buys a six-metre plate brake for stroke rate, but the return figure is worth knowing when estimating hours for a batch of multi-bend sections.
Poles, crane booms, long box girders and ship or wagon sections are the natural work. Throat depth is 450 mm (17.7 in). CNC motorized wave crowning is standard, and on a beam of this length it is not optional in any practical sense.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 3,200 kN |
| Bending Length | 6,000 mm (236.2 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 630 mm (24.8 in) |
| Stroke | 350 mm (13.8 in) |
| Approach Speed | 130 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 100 mm/s |
| Motor Power | 30 kW (40.2 hp) |
| Backgauge Stroke | 1,000 mm (39.4 in) |
| Machine Length | 7,000 mm (275.6 in) |
| Machine Width | 2,100 mm (82.7 in) |
| Machine Height | 3,580 mm (140.9 in) |
| Machine Weight | 33,000 kg (72,751 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,200 kN over 6,000 mm (236.2 in), the strongest six-metre model
- 630 mm (24.8 in) of daylight and a 350 mm (13.8 in) stroke
- 1,000 mm (39.4 in) backgauge stroke
- CNC motorized wave crowning as standard
Limitations
- Weight of 33,000 kg (72,751 lb), the highest in the table
- Height of 3,580 mm (140.9 in) and length of 7,000 mm (275.6 in)
- Return speed of 100 mm/s, the lowest in the series
- Throat depth remains 450 mm (17.7 in)
Best For
Frequently Asked Questions
01
33,000 kg (72,751 lb), the highest weight in the table. The six-metre EURO GENIUS B60220H weighs 23,000 kg (50,705 lb).
02
The machine itself is 3,580 mm (140.9 in) high. Lifting it into place needs more, so check the hook height and the route into the building with the rigging contractor.
03
Approach 130 mm/s, bending 0-10 mm/s, return 100 mm/s. The four-metre EURO GENIUS B40320H returns slightly faster, at 110 mm/s.
04
From Accurl's optional equipment list: the AP3-AP4 sheet following system, a BGA-4 or BGA-6 backgauge, and the height adjustable laser angle measurement system. Additional sliding front support arms are listed as well.
