LVD PPEC 400/40

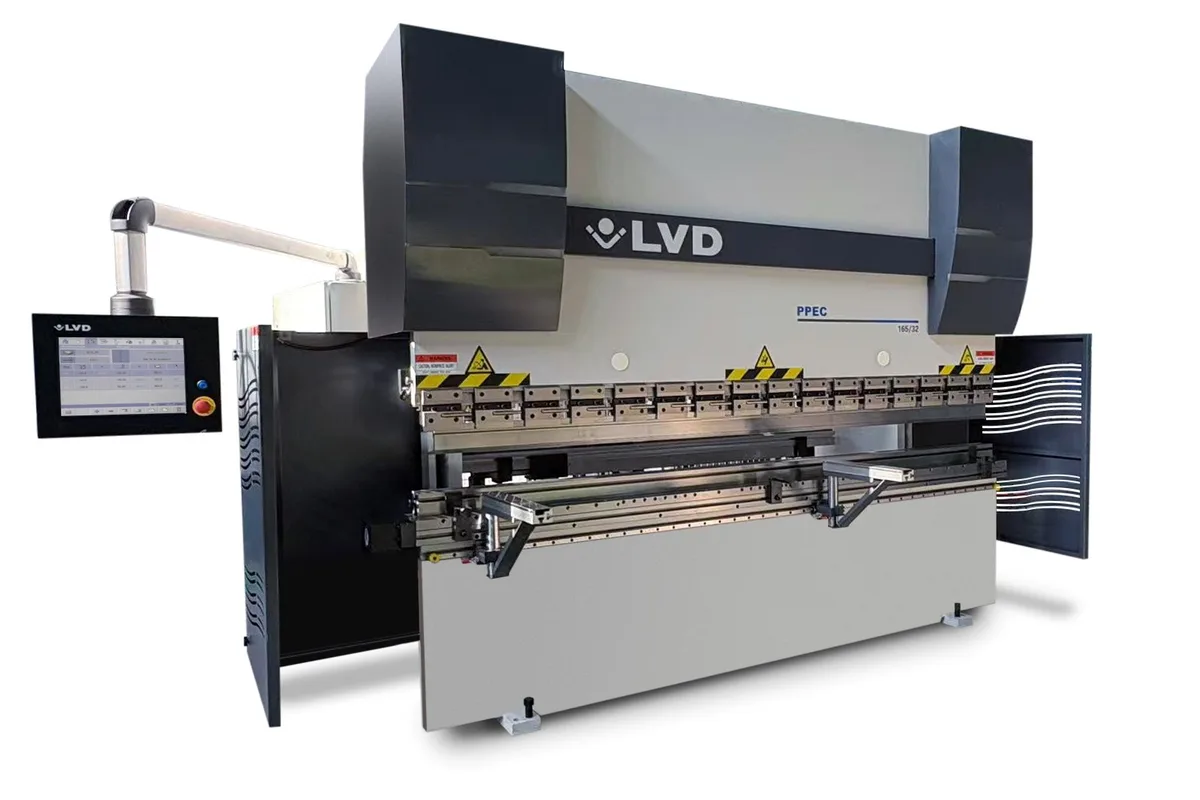

Image: lvdgroup.com, LVD
Key Specifications
pressing force
bending length
width between columns
ram stroke
open height
throat depth
How much does the LVD PPEC 400/40 cost?
Price estimate
We do not have a price for the LVD PPEC 400/40 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The LVD PPEC 400/40 is a 4,000 kN press brake with a 4,000 mm (157.5 in) working length, part of the heavy PPEC range that LVD supplies outside CE markets only.
At this force the series moves to a 300 mm (11.8 in) stroke and 570 mm (22.4 in) of open height, the same pair of figures LVD uses on its heavy machines for CE markets. The PPEB 400/40 has them too. The table here is wider, 250 mm (9.8 in) against the 200 mm of the PPEB 400/40.
The two machines differ in the drive. LVD lists a 37 kW motor and 500 L of oil for the PPEB 400/40, with an 11 mm/s working speed and a 120 mm/s return. The PPEC runs a 30 kW servo motor on an 800 L tank, works at 9 mm/s and returns at 90 mm/s. Approach is 100 mm/s on both.
Clear width between the uprights is 3,150 mm (124.0 in), and the throat is 400 mm (15.7 in).
This is a tall machine. LVD gives a height of 3,910 mm (153.9 in), with a length of 4,800 mm (189.0 in) and a width of 2,250 mm (88.6 in). The heading describes the frame as non mono. For a machine of this size that probably bears on how it travels and is erected, and it should be one of the first questions to the maker.
Full Specifications
| Parameter | Value |
|---|---|
| Pressing Force | 4,000 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Width Between Columns | 3,150 mm (124.0 in) |
| Ram Stroke | 300 mm (11.8 in) |
| Open Height | 570 mm (22.4 in) |
| Throat Depth | 400 mm (15.7 in) |
| Table Width | 250 mm (9.8 in) |
| Approach Speed | 100 mm/s |
| Bending Speed | 9 mm/s |
| Return Speed | 90 mm/s |
| Servo Motor Power | 30 kW |
| Oil Tank Capacity | 800 L |
| Machine Length | 4,800 mm (189.0 in) |
| Machine Width | 2,250 mm (88.6 in) |
| Machine Height | 3,910 mm (153.9 in) |
| Series Type | PPEC-5 |
| Controlled Axes | Y1-Y2-X-V-R |
| Frame Type | Non mono frame |
Specifications sourced from lvdgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 kN on 4,000 mm (157.5 in)
- 300 mm (11.8 in) stroke with 570 mm (22.4 in) of open height
- 250 mm (9.8 in) table, wider than on the PPEB 400/40
- 30 kW servo motor on an 800 L tank
- PPEC-5 axes with crowning in the series specification
Limitations
- Supplied outside CE markets only
- 9 mm/s working speed and 90 mm/s return
- 3,910 mm (153.9 in) high and 4,800 mm (189.0 in) long
- 800 L of oil; no weight published
Best For
Frequently Asked Questions
01
The PPEB 400/40 has a 37 kW motor, 500 L of oil, an 11 mm/s working speed, a 120 mm/s return and a 200 mm table. The PPEC has 30 kW, 800 L, 9 mm/s, 90 mm/s and a 250 mm table. Stroke and open height are the same.
02
3,910 mm (153.9 in). It is 4,800 mm (189.0 in) long and 2,250 mm (88.6 in) wide. Allow extra height for lifting tools and for maintenance.
03
Yes. The PPEC 400/60 has a 6,000 mm working length and 5,050 mm between the uprights, with the same force, stroke, opening and speeds.
04
Approach 100 mm/s, working 9 mm/s, return 90 mm/s. LVD describes the servo-controlled hydraulic system as programmable and energy-efficient.
