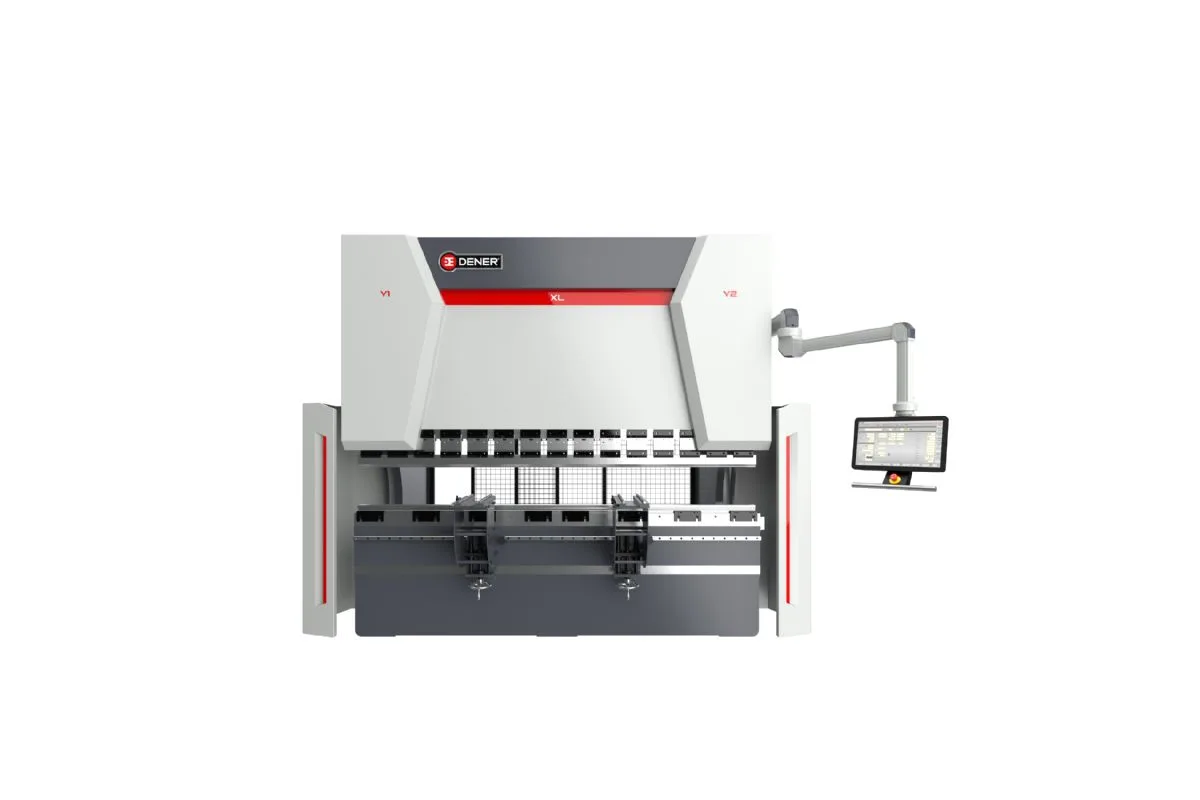

Dener XL 60400
Image: en.dener.com, Dener
Key Specifications
bending length
bending capacity
approach speed
bending speed
return speed
stroke
How much does the Dener XL 60400 cost?
Price estimate
We do not have a price for the Dener XL 60400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
400 ton, six metres, 32,000 kg (70,547 lb). The Dener XL 60400 is a plate machine, and its row in the Smart XL hydraulic press brake table reads differently from the lighter six-metre models in several places at once.
The frame is the deep-throat type: 600 mm of throat depth with 5,100 mm between the side frames, over a 6,050 mm (238.2 in) bending length. Stroke is 400 mm and daylight 650 mm.
Bending speed is 8 mm/sec. The XL 60320 and most other XL sizes bend at 10 mm/sec, so this is one of the few models where the working speed itself is lower, not only the approach. Approach and return are 60 mm/sec each. The power unit is a 37 kW (49.6 hp) motor with a 400 lt tank.
What should a buyer verify? The building, first. The machine is 6,905 mm long, 2,780 mm wide with front supports and 3,615 mm high, and it needs a foundation designed for its weight. Then the equipment: at this force Dener's standard manual crowning and X, R backgauge are a starting point, and the motorized crowning, multi-axis backgauges and hydraulic tool clamping on the options list are worth pricing.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Length | 6,050 mm (238.2 in) |
| Bending Capacity | 400 ton |
| Approach Speed | 60 mm/sec |
| Bending Speed | 8 mm/sec |
| Return Speed | 60 mm/sec |
| Stroke | 400 mm (15.7 in) |
| Daylight | 650 mm (25.6 in) |
| Throat Depth | 600 mm (23.6 in) |
| Distance Between Side Frames | 5,100 mm (200.8 in) |
| Machine Length | 6,905 mm (271.9 in) |
| Machine Width | 2,780 mm (109.4 in) |
| Width Without Front Support | 2,330 mm (91.7 in) |
| Maximum Height | 3,615 mm (142.3 in) |
| Main Motor Power | 37 kW (49.6 hp) |
| Oil Tank | 400 lt |
| Machine Weight | 32,000 kg (70,547 lb) |
Specifications sourced from en.dener.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 400 ton across 6,050 mm of bending length
- 600 mm throat depth for wide plates
- 400 mm stroke with 650 mm daylight
- 37 kW (49.6 hp) main motor on a 400 lt tank
Limitations
- Bending speed of 8 mm/sec, below the 10 mm/sec of the XL 60320
- 60 mm/sec approach and return
- 32,000 kg (70,547 lb) and 3,615 mm of height
Best For
Frequently Asked Questions
01
400 ton of bending capacity over 6,050 mm (238.2 in), a 400 mm stroke, 650 mm daylight and a 600 mm throat depth. The side frames are 5,100 mm apart.
02
Approach speed is 60 mm/sec, bending speed 8 mm/sec and return speed 60 mm/sec. The XL 60320 below it runs at 80 mm/sec outside the bend.
03
32,000 kg (70,547 lb). It measures 6,905 mm in length and 3,615 mm in maximum height, and is 2,330 mm wide without the front supports.
04
The standard machine has European-style sectional punch and die holders. Pneumatic clamping, a lever-type quick change and Wila mechanical or hydraulic clamping are listed as options.
