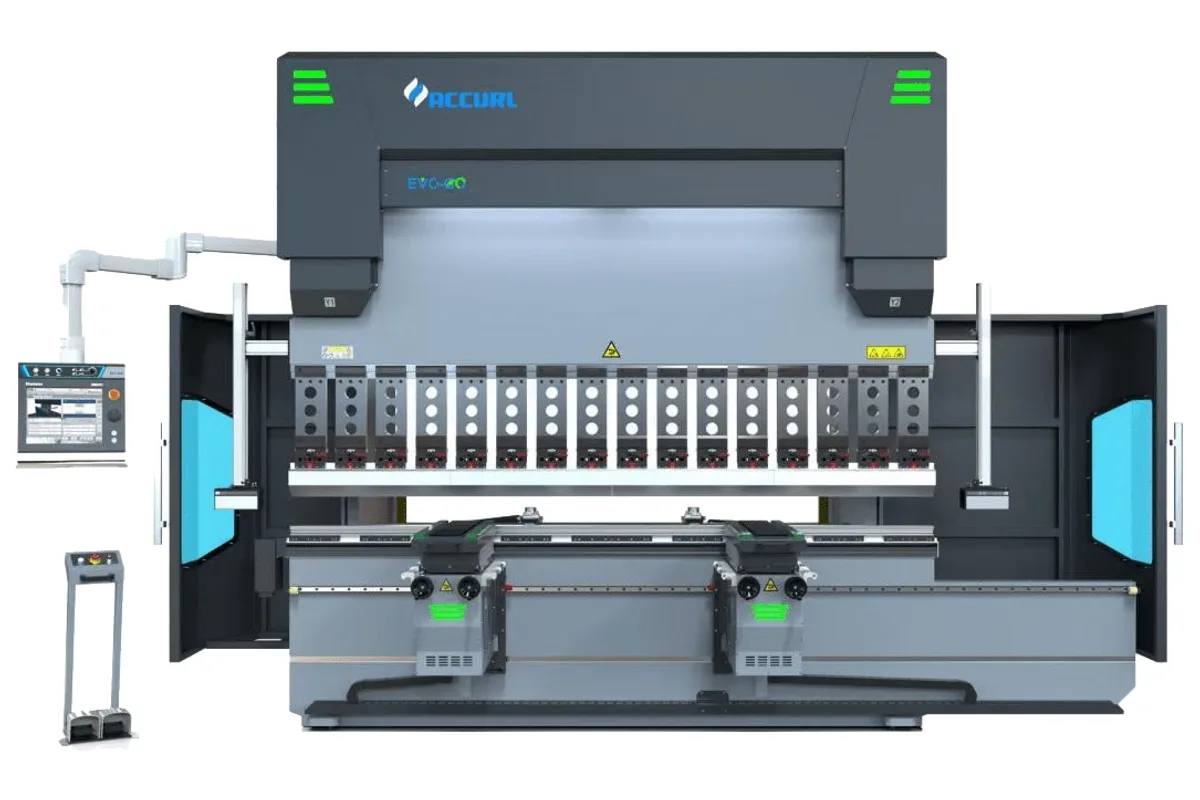

Accurl EURO GENIUS B40400H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B40400H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B40400H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO GENIUS B40400H tops the series in capacity with 4,000 kN on a 4,000 mm (157.5 in) bending length. It is also the only model with a throat depth of 500 mm (19.7 in); the EURO GENIUS B40320H and the rest have 450 mm (17.7 in).
A 37 kW (49.6 hp) motor is fitted, the largest in the table. Ram speeds are 130 mm/s for approach and 100 mm/s for return, with bending at 0-10 mm/s.
Its proportions say what it is for. The machine is 2,300 mm (90.6 in) wide, clearly broader than the 2,020 mm (79.5 in) of the EURO GENIUS B40320H, and weighs 28,500 kg (62,831 lb). Length is 4,980 mm (196.1 in) and height 3,590 mm (141.3 in). This is a short, deep, very stiff press for thick plate.
Daylight and stroke match the other large models at 630 mm (24.8 in) and 350 mm (13.8 in). The backgauge stroke is 1,000 mm (39.4 in).
Will a shop use 4,000 kN? Force demand rises steeply with thickness and falls with die opening, so the answer comes from a bending force calculation on the heaviest regular job. If that lands near the limit of the EURO GENIUS B40320H, this machine provides the margin, and its deeper throat helps with wide plates.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 4,000 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Throat Depth | 500 mm (19.7 in) |
| Daylight Opening | 630 mm (24.8 in) |
| Stroke | 350 mm (13.8 in) |
| Approach Speed | 130 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 100 mm/s |
| Motor Power | 37 kW (49.6 hp) |
| Backgauge Stroke | 1,000 mm (39.4 in) |
| Machine Length | 4,980 mm (196.1 in) |
| Machine Width | 2,300 mm (90.6 in) |
| Machine Height | 3,590 mm (141.3 in) |
| Machine Weight | 28,500 kg (62,831 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 kN, the highest capacity in the series
- 500 mm (19.7 in) throat depth, unique in the table
- 37 kW (49.6 hp) motor, the largest in the table
- 630 mm (24.8 in) daylight, 350 mm (13.8 in) stroke and 1,000 mm (39.4 in) backgauge stroke
Limitations
- Weight of 28,500 kg (62,831 lb) on a four-metre bed
- Width of 2,300 mm (90.6 in) and height of 3,590 mm (141.3 in)
- Return speed of 100 mm/s, the lowest in the series
- No six-metre version at this capacity in the table
Best For
Frequently Asked Questions
01
4,000 kN over a bending length of 4,000 mm (157.5 in). It is the last row of Accurl's EURO GENIUS B table. Throat depth is 500 mm (19.7 in).
02
At 500 mm (19.7 in), the throat lets a plate wider than the gap between the frames take a deeper flange than on the EURO GENIUS B40320H, which has 450 mm (17.7 in).
03
The EURO GENIUS B40320H weighs 21,800 kg (48,060 lb) and is 2,020 mm (79.5 in) wide. This model weighs 28,500 kg (62,831 lb) and is 2,300 mm (90.6 in) wide; the lengths differ little.
04
37 kW (49.6 hp). The standard equipment list names a Siemens efficiency motor of class IE3 and a stand-by function, which idles the drive between bends to save energy.
