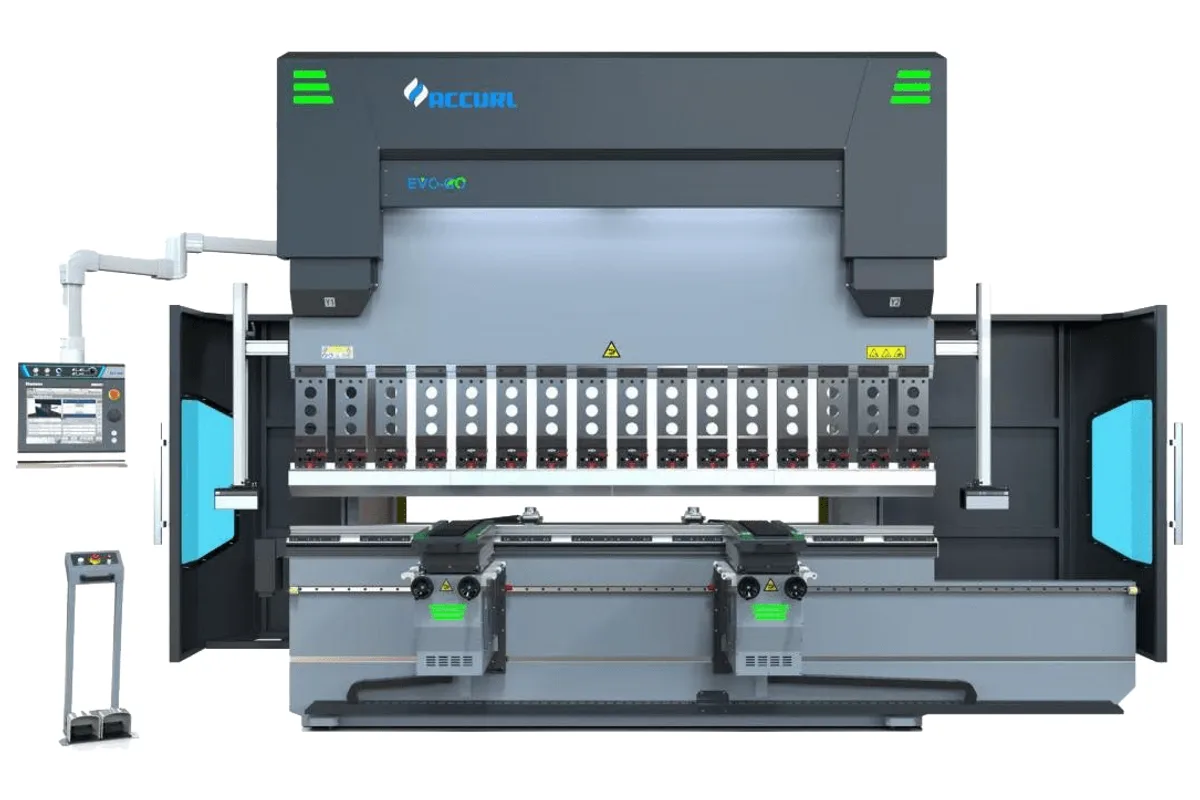

Accurl EURO GENIUS B40250H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B40250H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B40250H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO GENIUS B40250H carries 2,500 kN over 4,000 mm (157.5 in) and combines the three features that the larger half of the series is built around: a 350 mm (13.8 in) stroke, a 600 mm (23.6 in) daylight opening and a 1,000 mm (39.4 in) backgauge stroke.
At 19,300 kg (42,549 lb) it is a substantial machine. Its length is 4,950 mm (194.9 in) and its height 3,290 mm (129.5 in).
How quick is it? Approach is 150 mm/s and return 110 mm/s, with bending at 0-10 mm/s. Against the EURO GENIUS B40220H, which approaches at 165 mm/s and returns at 150 mm/s, that is a small loss going down and a considerable one coming up. The buyer is paying in cycle time for capacity and stroke, which is reasonable when parts are heavy and handled by crane.
The drive is a 22 kW (29.5 hp) motor. Hydraulics are listed as a HOERBIGER valve block, pump and valves.
For four-metre parts that are both thick and deep, such as tipper body sides, tank shells and heavy cabinet carcasses, this is the first size in the range that offers all the necessary space. Throat depth stays at 450 mm (17.7 in), so very wide blanks with deep flanges still need a check.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 2,500 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 600 mm (23.6 in) |
| Stroke | 350 mm (13.8 in) |
| Approach Speed | 150 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 110 mm/s |
| Motor Power | 22 kW (29.5 hp) |
| Backgauge Stroke | 1,000 mm (39.4 in) |
| Machine Length | 4,950 mm (194.9 in) |
| Machine Width | 2,020 mm (79.5 in) |
| Machine Height | 3,290 mm (129.5 in) |
| Machine Weight | 19,300 kg (42,549 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,500 kN over 4,000 mm (157.5 in)
- 350 mm (13.8 in) stroke and 600 mm (23.6 in) daylight
- 1,000 mm (39.4 in) backgauge stroke
- 22 kW (29.5 hp) motor with stand-by function
Limitations
- Return speed of 110 mm/s, against 150 mm/s on the EURO GENIUS B40220H
- Weight of 19,300 kg (42,549 lb) needs a prepared floor
- Throat depth of 450 mm (17.7 in); 500 mm (19.7 in) comes only with the EURO GENIUS B40400H
Best For
Frequently Asked Questions
01
2,500 kN, 4,000 mm (157.5 in) bending length, 350 mm (13.8 in) stroke, 600 mm (23.6 in) daylight, 450 mm (17.7 in) throat depth and a 1,000 mm (39.4 in) backgauge stroke.
02
The EURO GENIUS B32250H bends 3,200 mm (126 in), has an 800 mm (31.5 in) backgauge stroke, approaches at 160 mm/s and weighs 17,300 kg (38,139 lb). This model is longer, has the 1,000 mm (39.4 in) backgauge and approaches at 150 mm/s.
03
The EURO GENIUS B40320H, with 3,200 kN on the same length, a 30 kW (40.2 hp) motor and 630 mm (24.8 in) of daylight; the EURO GENIUS B40320H approaches at 130 mm/s.
04
The standard list gives the front cover as an AKAS LC-II F safety laser of Category IV or DSP safety, and the rear cover as Category IV safety barriers. A LazerSafe system is listed among the options.
