YCM TV2110B

Q: How much does the YCM TV2110B cost?

The price estimate for the YCM TV2110B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-tv2110b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

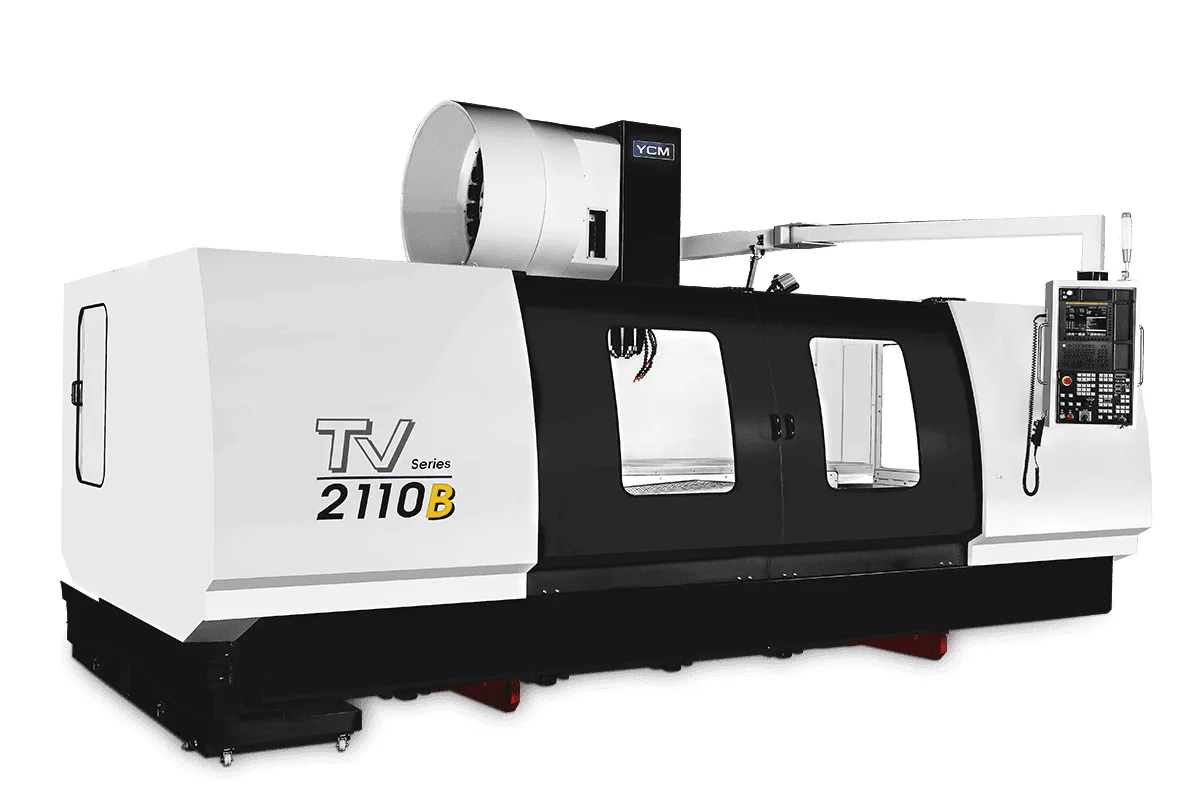

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

6,000 rpm; opt. 10,000 rpm

Spindle Taper

BT50; opt. BBT50

Tool Capacity

24 tools; opt. 32 / 40 tools

Table Size

2,300 x 1,020 mm (90.55 x 40.16 in)

Spindle Power

25 kW (33.5 HP); opt. 45 kW (60.4 HP)

x axis travel

2,100 mm (82.68 in)

How much does the YCM TV2110B cost?

Price estimate

Uncertain

We do not have a price for the YCM TV2110B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Seven tonnes on the table is the headline of the YCM TV2110B. This 50-taper vertical machining center takes 7,000 kg (15,432 lb) on a 2,300 x 1,020 mm (90.55 x 40.16 in) table, with travels of 2,100 mm (82.68 in) in X, 1,020 mm (40.16 in) in Y and 762 mm (30 in) in Z.

That load rating is more than three times the 2,000 kg (4,409 lb) of the TV188B, the next model down, and it moves the machine into territory usually served by double-column mills. A single-column machine keeps the front and both sides of the table open, which makes crane loading of large dies and castings simpler. The T-base supports the table through the whole stroke, the reason such a load is possible without a bridge.

Everything moves at 12 m/min (472 ipm), and cutting feed tops out at 5,000 mm/min (196.9 ipm). With several tonnes on the table those rates are sensible. The work this machine does is measured in chip volume per hour, not in seconds between holes.

The spindle is a BT50 gearhead type at 6,000 rpm, listed at 25 kW (33.5 HP), with a 45 kW (60.4 HP), 10,000 rpm option. Six T-slots of 22 mm at 150 mm pitch hold the work. The magazine carries 24 tools, or 32 or 40, up to 20 kg (44 lb) each. Spindle nose to table is 200~962 mm with 450~1,212 mm in brackets, and the machine weighs 25,500 kg (56,217 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	6,000 rpm; opt. 10,000 rpm
Spindle Motor Power	25 kW (33.5 HP); opt. 45 kW (60.4 HP)
Spindle Taper	BT50; opt. BBT50
X Axis Travel	2,100 mm (82.68 in)
Y Axis Travel	1,020 mm (40.16 in)
Z Axis Travel	762 mm (30 in)
Distance Spindle Nose to Table	200~962 (450~1,212) mm
Table Size	2,300 x 1,020 mm (90.55 x 40.16 in)
T-Slots	6 x 22 x 150 mm (6 x 0.87 x 5.91 in)
Max Table Load	7,000 kg (15,432 lb)
Rapid Traverse Xyz	12/12/12 m/min (472/472/472 ipm)
Cutting Feed Rate	1~5,000 mm/min (0.04~196.9 ipm)
Tool Capacity	24 tools; opt. 32 / 40 tools
Max Tool Weight	20 kg (44 lb)
Max Tool Size	24T: ø110 x 350 (ø190 x 350) 32T/40T: ø120 x 350 (ø240 x 350) mm
Machine Weight	25,500 kg (56,217 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Table load of 7,000 kg (15,432 lb)
Y travel of 1,020 mm (40.16 in), matching the table width
Open single-column layout for crane loading from the front and sides
2,300 x 1,020 mm (90.55 x 40.16 in) table with 6 T-slots of 22 mm
BT50 gearhead spindle with a 45 kW (60.4 HP) option

Limitations

Rapid traverse is 12 m/min (472 ipm) on all axes
The machine weighs 25,500 kg (56,217 lb) and needs a prepared foundation
Z travel of 762 mm (30 in) limits tall workpieces on a table this large
Standard spindle speed is 6,000 rpm

Best For

Large dies, mold bases and castings up to 7,000 kg (15,432 lb) Heavy roughing with large face mills on steel and cast iron Shops that want double-column capacity with an open table

Frequently Asked Questions

01 How much weight can the TV2110B table hold?

7,000 kg (15,432 lb). The table is 2,300 x 1,020 mm (90.55 x 40.16 in) with T-slots listed as 6 x 22 x 150 mm. The TV188B, the next smaller model, is rated for 2,000 kg (4,409 lb).

02 What are the travels of the TV2110B?

X travel is 2,100 mm (82.68 in), Y is 1,020 mm (40.16 in) and Z is 762 mm (30 in). Rapid traverse is 12 m/min (472 ipm) on each axis and cutting feed is 1~5,000 mm/min (0.04~196.9 ipm).

03 What spindle is fitted?

A BT50 gearhead spindle with a maximum of 6,000 rpm and 25 kW (33.5 HP) in the table. The options column lists 10,000 rpm, 45 kW (60.4 HP) and a BBT50 taper. The quill type spindle housing has a cooling system.

04 Is there a longer version?

Yes. The TV2610B has 2,600 mm (102.36 in) of X travel and a 2,800 x 1,020 mm (110.24 x 40.16 in) table, with the same 7,000 kg (15,432 lb) rating. It weighs 26,000 kg (57,320 lb) against 25,500 kg (56,217 lb) here.
