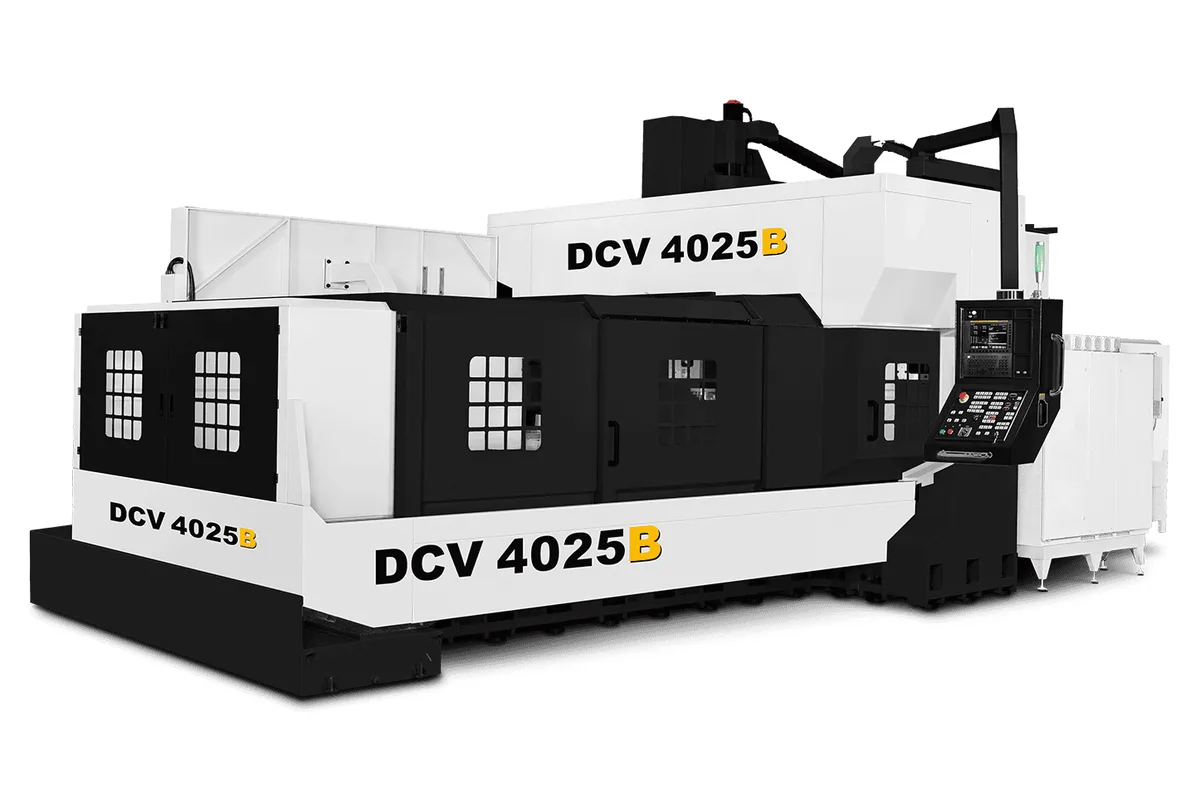

YCM DCV4025B
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the YCM DCV4025B cost?
Price estimate
We do not have a price for the YCM DCV4025B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The YCM DCV4025B pairs four metres of X travel with a wide bridge. X is 4,065 mm, Y is 2,500 mm, and the 4,100 x 2,400 mm table carries 20,000 kg under columns that stand 2,720 mm apart.
It sits in the middle of three machines that share the same table. The DCV4021B is the narrower one, with a table 2,000 mm deep. The DCV4035B takes the identical 4,100 x 2,400 mm table and sets the columns 3,600 mm apart for parts that overhang it. For work that fits on the table itself, this model is the natural choice, and at 49,000 kg it is lighter than the widest version.
A 2.4 metre table depth covers the largest dies most shops meet: side-panel and floor stampings, large appliance molds, extrusion press tooling, frames for construction and mining equipment. With 11 T-slots of 28 mm on a 200 mm pitch there is a slot close to wherever a clamp is needed.
Motion and cutting data are those of the heavy DCV frame. X rapid is 12 m/min and Y and Z are 15 m/min, with cutting feed up to 10,000 mm/min. The BBT50 spindle runs at 4,500 rpm as standard; 6,000 and 10,000 rpm are options, and the power row reads 25/25/45 kW. Tools of up to 20 kg go into a 40-tool magazine, with 60 and 120 optional. Z travel is 762 mm, or 1,016 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Max Spindle Speed | 4,500 rpm; opt. 6,000 / 10,000 rpm |
| Spindle Motor Power | 25/25/45 kW (33.5/33.5/60 hp) |
| Spindle Taper | BBT50 |
| X Axis Travel | 4,065 mm (160.04 in) |
| Y Axis Travel | 2,500 mm (98.43 in) |
| Z Axis Travel | 762 mm (30 in); opt. 1,016 mm (40 in) |
| Distance Spindle Nose to Table | 200~962 (450~1,212 [Raised Column 250] / 200~1,216 [Z-axis Travel 1,016]) mm |
| Distance Between Columns | 2,720 mm (107.09 in) |
| Table Size | 4,100 x 2,400 mm (161.4 x 94.5 in) |
| T-Slots | 11 x 28 x 200 mm (11 x 1.1 x 7.87 in) |
| Max Table Load | 20,000 kg (44,092 lb) |
| Rapid Traverse Xyz | 12/15/15 m/min (472/591/591 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Tool Capacity | 40 tools; opt. 60 / 120 tools |
| Max Tool Weight | 20 kg (44.1 lb) |
| Max Tool Size | ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in) |
| Machine Weight | 49,000 kg (108,025 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,100 x 2,400 mm table rated for 20,000 kg
- 2,500 mm of Y travel with 2,720 mm between columns
- 11 T-slots of 28 mm on a 200 mm pitch
- Optional 10,000 rpm spindle and 45 kW
- 40, 60 or 120-tool magazines for tools up to 20 kg
Limitations
- Machine weight of 49,000 kg
- X rapid of 12 m/min over 4,065 mm of travel
- Standard spindle speed is 4,500 rpm
- Z travel is 762 mm unless the 1,016 mm option is chosen
Best For
Frequently Asked Questions
01
X travel is 4,065 mm and Y travel 2,500 mm. The table is 4,100 x 2,400 mm with T-slots listed as 11 x 28 x 200 mm, the distance between columns is 2,720 mm and the table load is 20,000 kg.
02
All three have 4,065 mm of X travel and a 20,000 kg table. The DCV4021B has 2,100 mm of Y and 2,320 mm between columns. The DCV4035B has 3,500 mm of Y and 3,600 mm between columns. The DCV4025B lies between them.
03
4,500 rpm as standard, with 6,000 and 10,000 rpm as options, on a BBT50 taper. The power row reads 25/25/45 kW. Ask YCM to confirm which power figure goes with which spindle.
04
49,000 kg without workpiece. With a full 20,000 kg on the table the foundation carries close to seventy tonnes, so the foundation drawing should be agreed with YCM before installation.
